Schema BTLx_2_2_0.xsd


schema location:  V:\Dokumente\Unterlagen\cadwork-hildesheim\development\Entwicklung BTLxml\Schema\BTLx_2_2_0.xsd
attributeFormDefault:
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Complex types  Simple types  Attr. groups

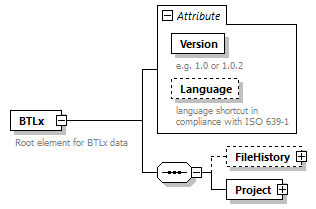

BTLx  AlignmentType  AlignmentHorizontalType  CrampContourAttributes
ArcBaseType  AlignmentVerticalType  FreeContourAttributes

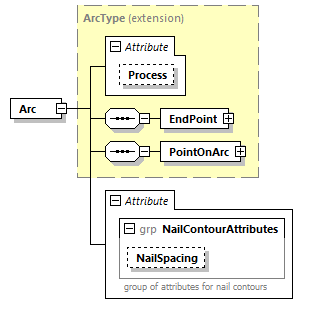

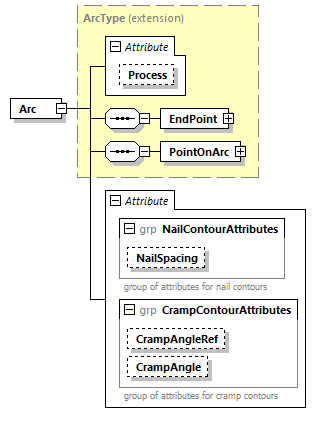

ArcType  Angle2NType  NailContourAttributes
BirdsMouthType  Angle2Type  SawContourAttributes
CamberType  Angle3Type  SingleContourAttributes
ChamferType  AngleNType
ColourType  AngleType
ComponentType  ArcShapeType

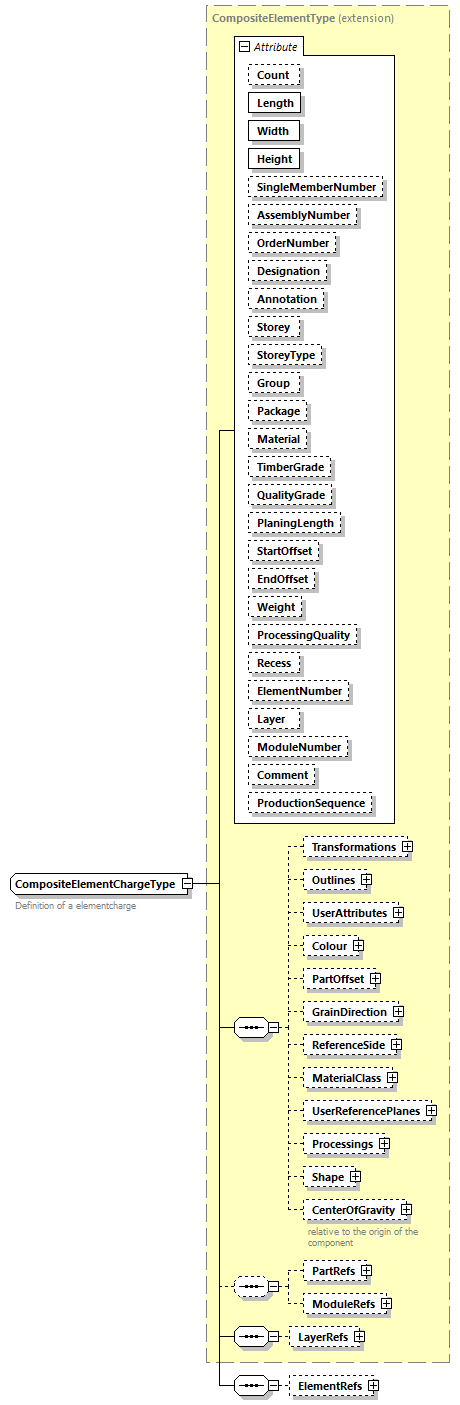

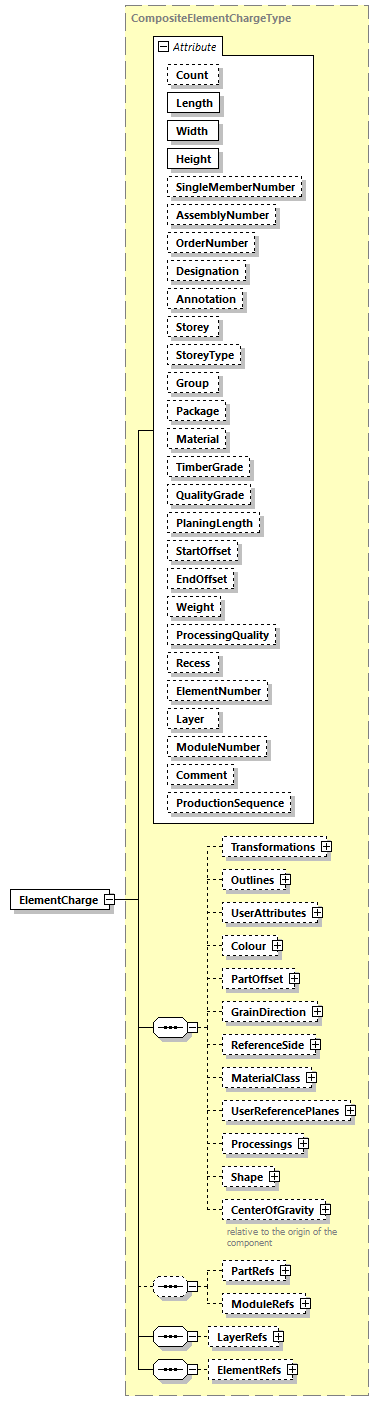

CompositeElementChargeType  BooleanType
CompositeElementType  ChamferExitType
CompositeLayerType  ConeAngleType

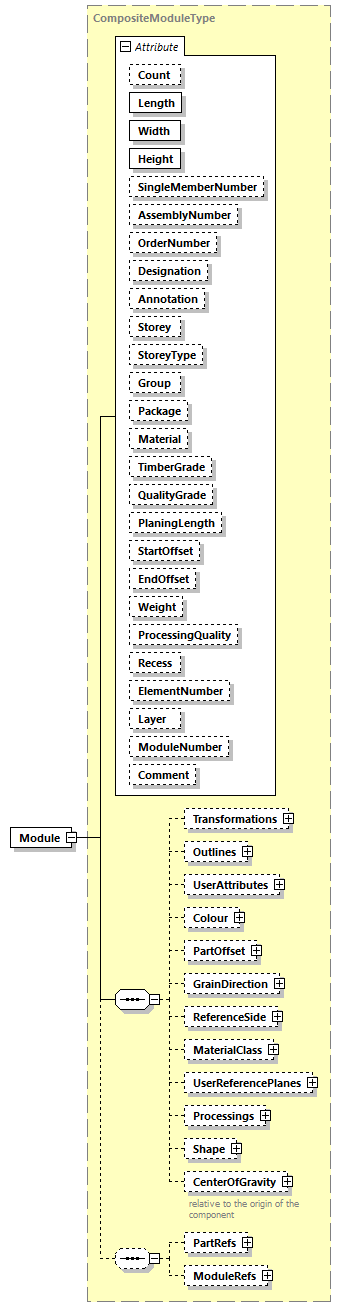

CompositeModuleType  ContourRecessType
ContourMachiningLimitType  ContourType
ControlPointType  CrampAngleRefType
CoordinateSystemType  DiameterType
CoordinateType  DovetailShapeType

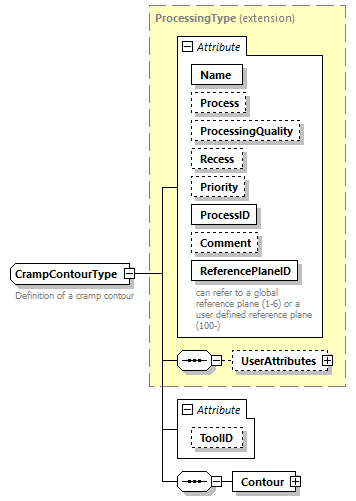

CrampContourType  EdgePositionType
DoubleCutType  EndType
DovetailMortiseType  FlankAngleType

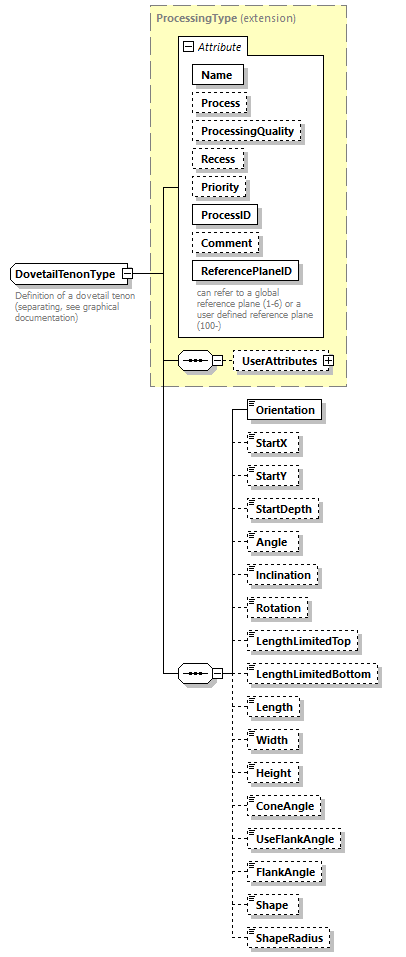

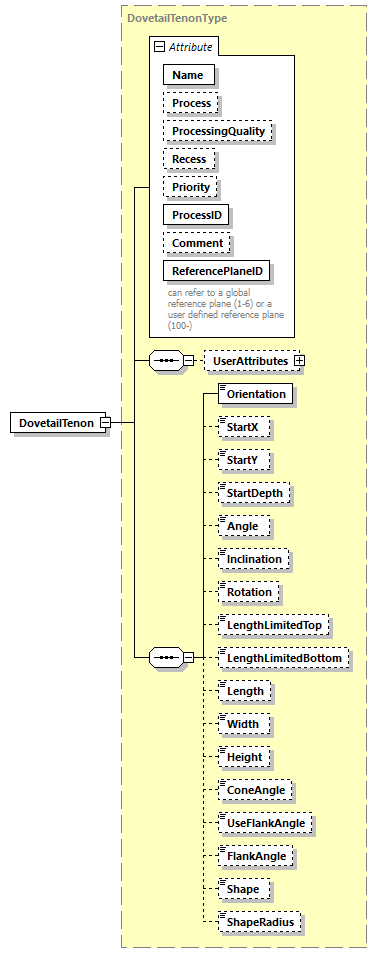

DovetailTenonType  GUIDType

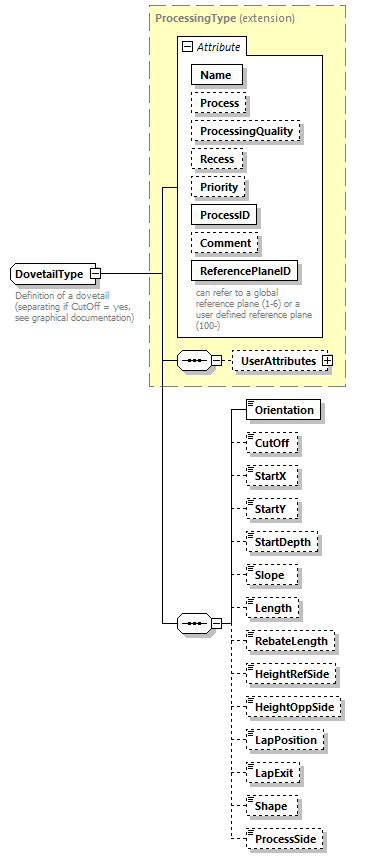

DovetailType  Inclination2Type
DrillingType  Inclination3Type
DualContourType  InclinationType
FreeContourType  KnotListType
FreeSurfaceType  LapExitType

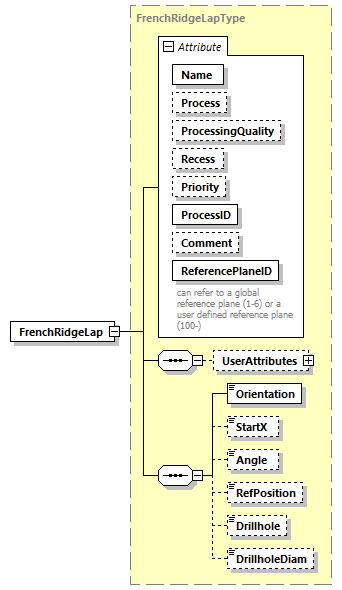

FrenchRidgeLapType  LengthPosType
GlueAreaType  LengthSType
HipValleyRafterNotchType  LengthType
HouseMortiseType  LimitationTopType
HouseType  LocationType
InsulationAreaType  LogLapPositionType
JackRafterCutType  MarkingStyleType
JapaneseMortiseType  MaterialGroupType

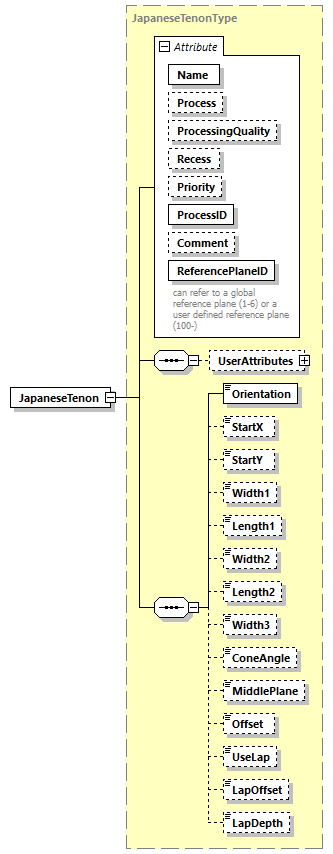

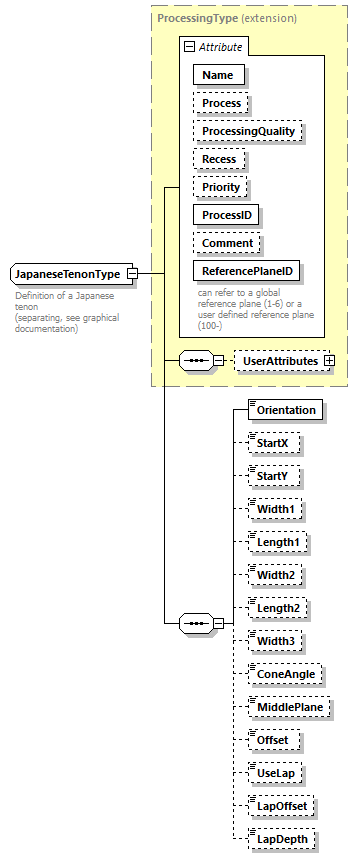

JapaneseTenonType  OrientationType
LapType  PremillType
LineBaseType  ProcessingQualityType

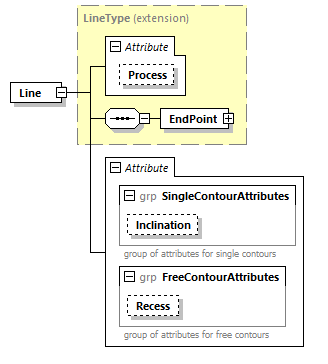

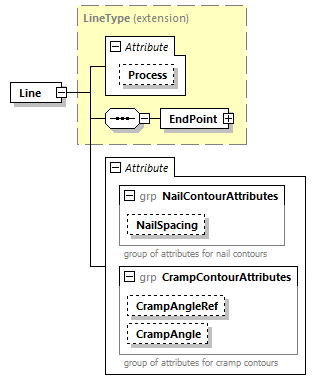

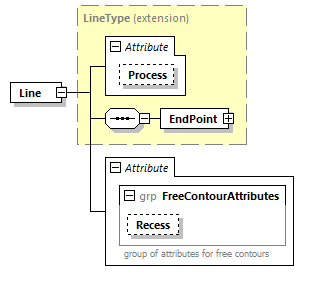

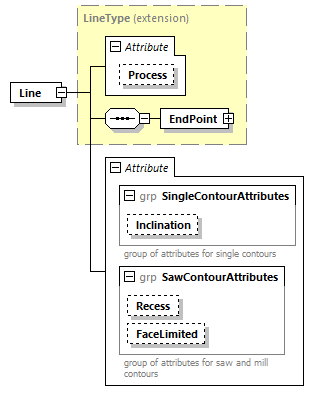

LineType  ProcessSideType

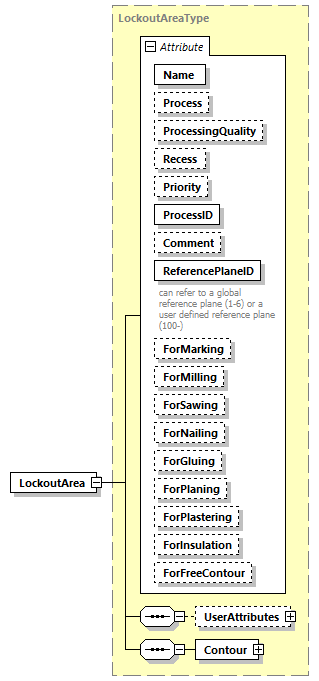

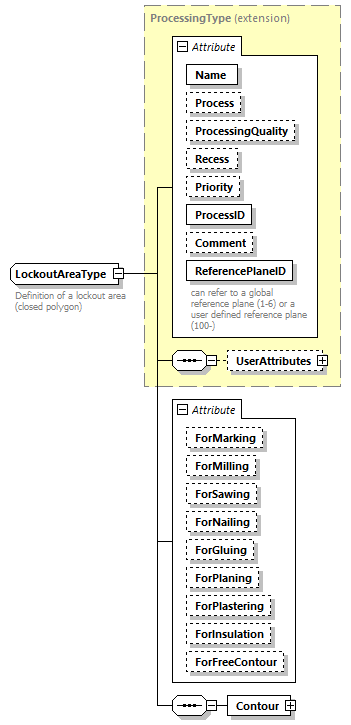

LockoutAreaType  RawPartEnumType
LogHouseFrontType  RecessAdvType
LogHouseHalfLapType  RecessType

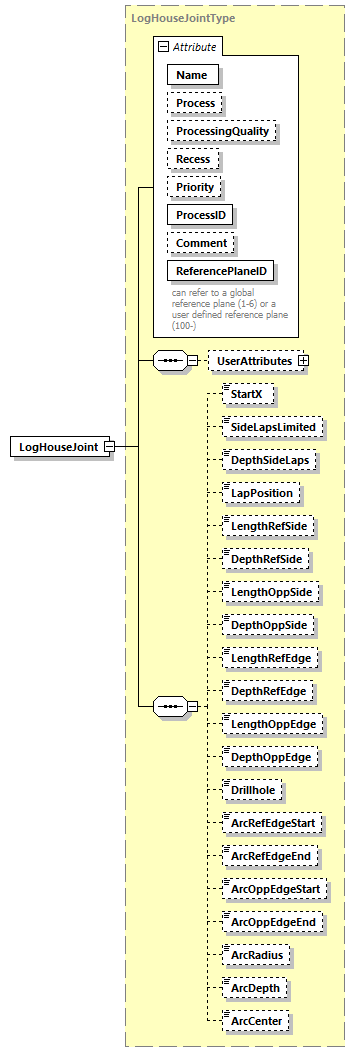

LogHouseJointType  RefSideType
LongitudinalCutType  ScarfShapeType

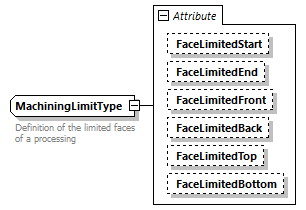

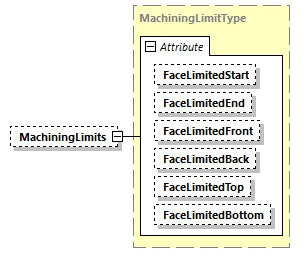

MachiningLimitType  StepShapeType

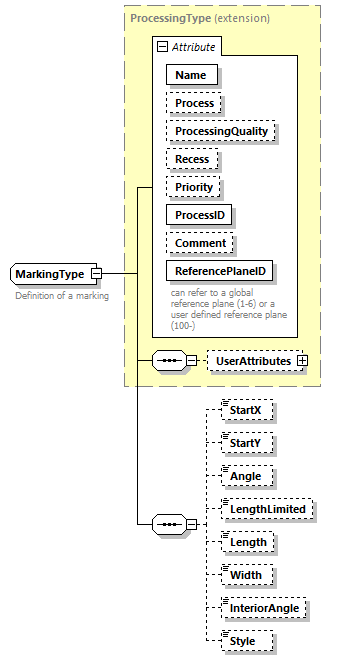

MarkingType  StoreyType
MaterialClassType  TenonShapeType
MillContourType  ToolPositionType

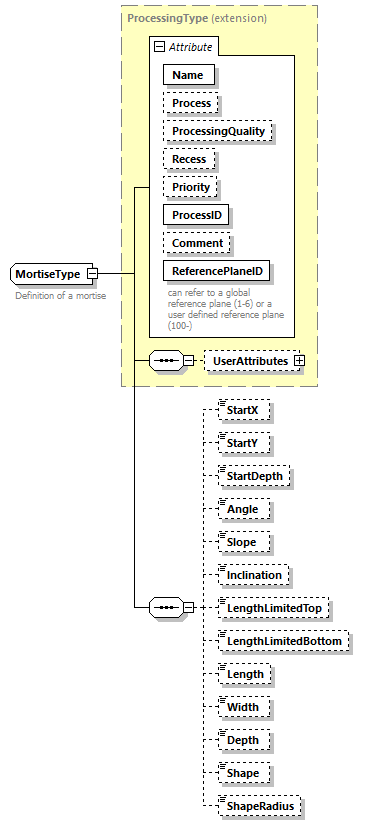

MortiseType  TyroleanDovetailShapeType

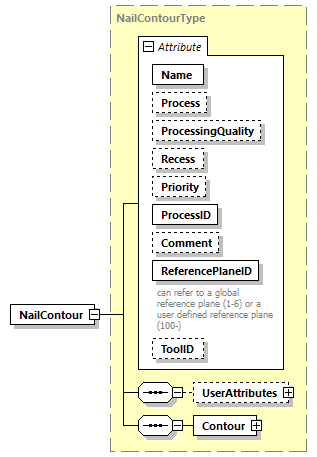

NailContourType  UAttributeType
NURBSCurveBaseType  WidthNType

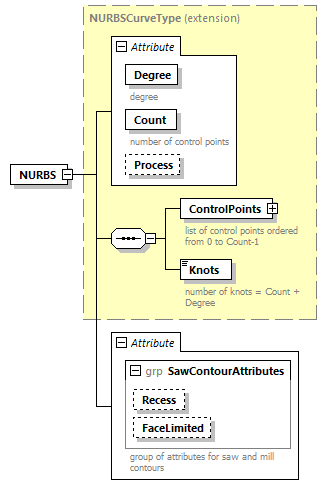

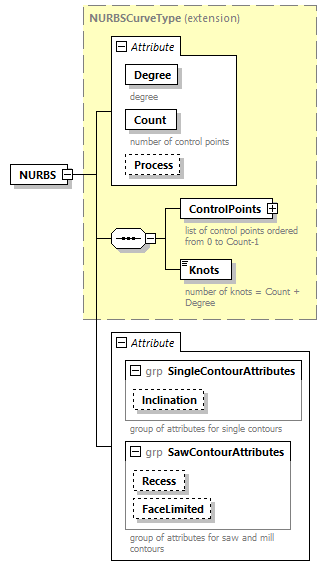

NURBSCurveBType  WidthType

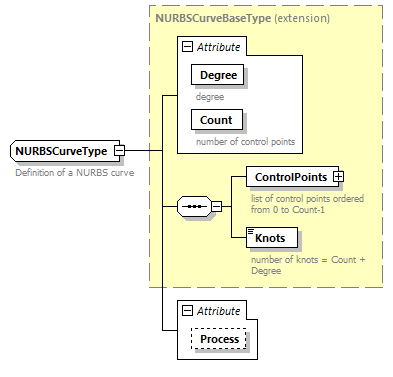

NURBSCurveType

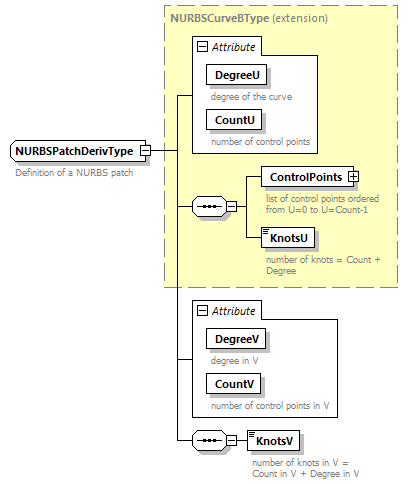

NURBSPatchDerivType

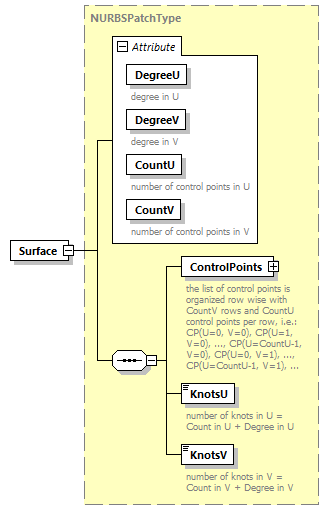

NURBSPatchType
OutlineBaseType
OutlineType
PartOffsetType

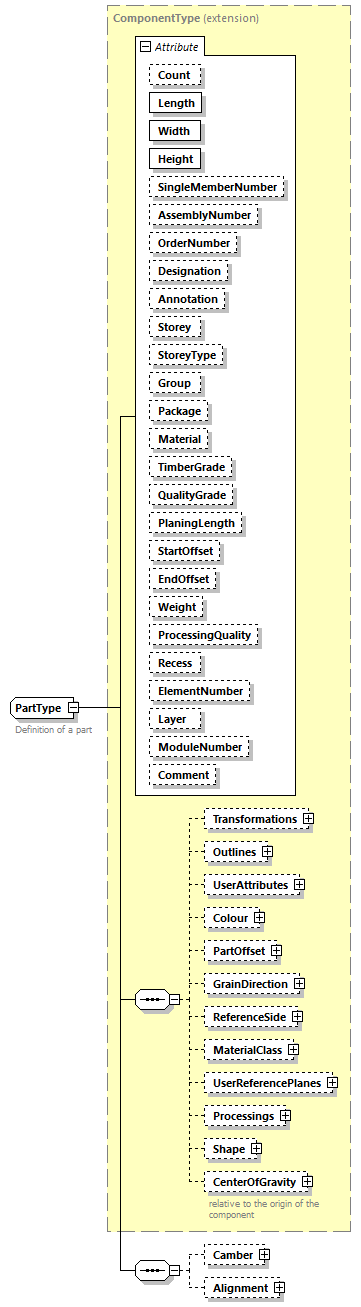

PartType

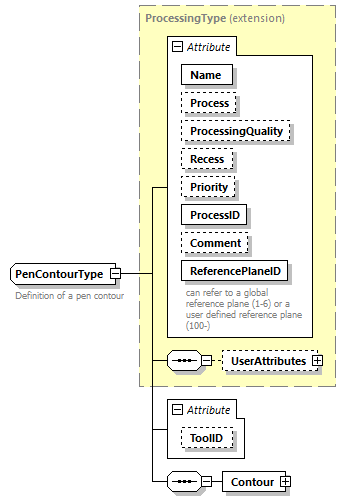

PenContourType

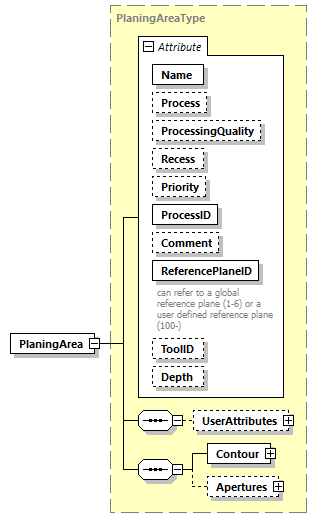

PlaningAreaType
PlaningType
PlasterAreaType

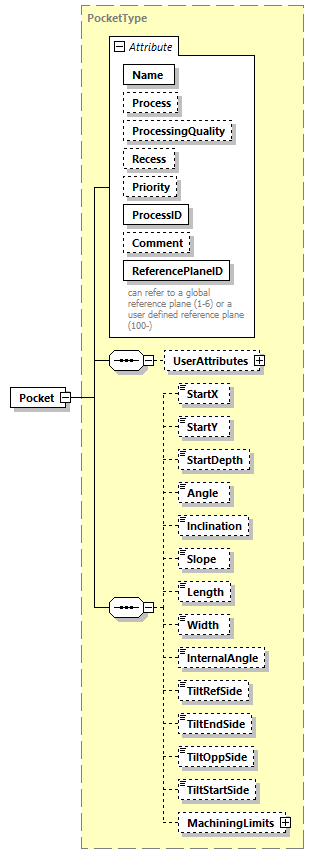

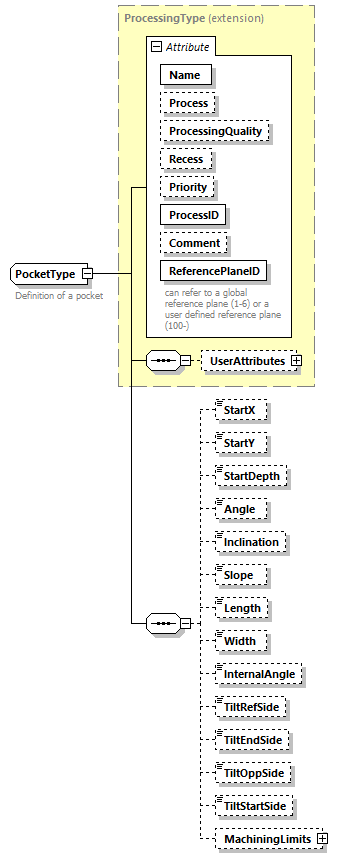

PocketType
PointType
ProcessingBaseType

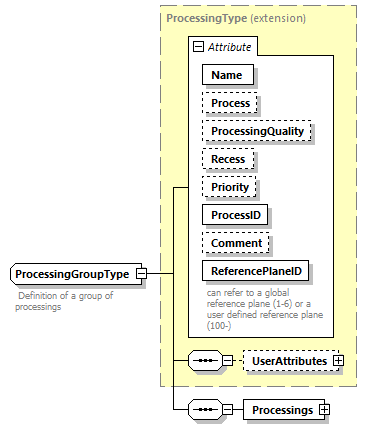

ProcessingGroupType

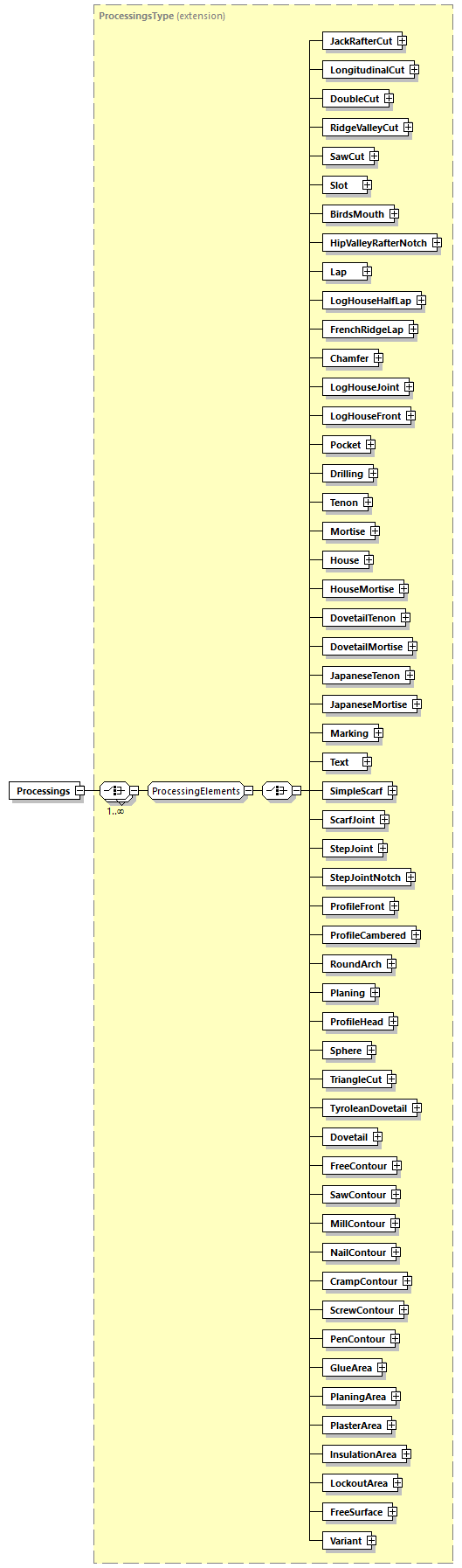

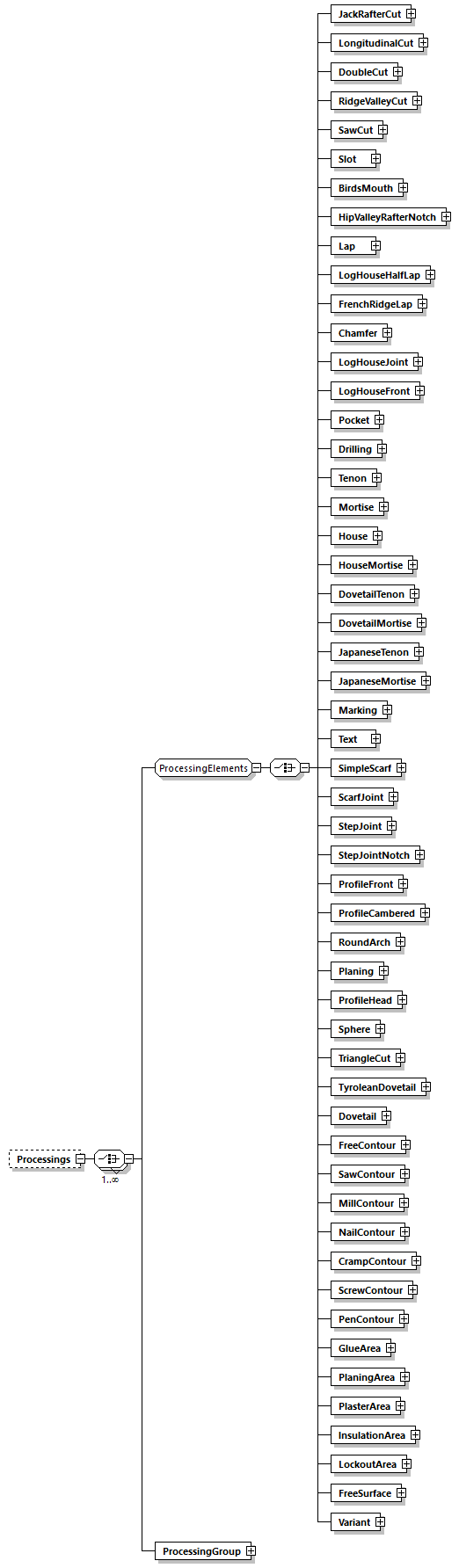

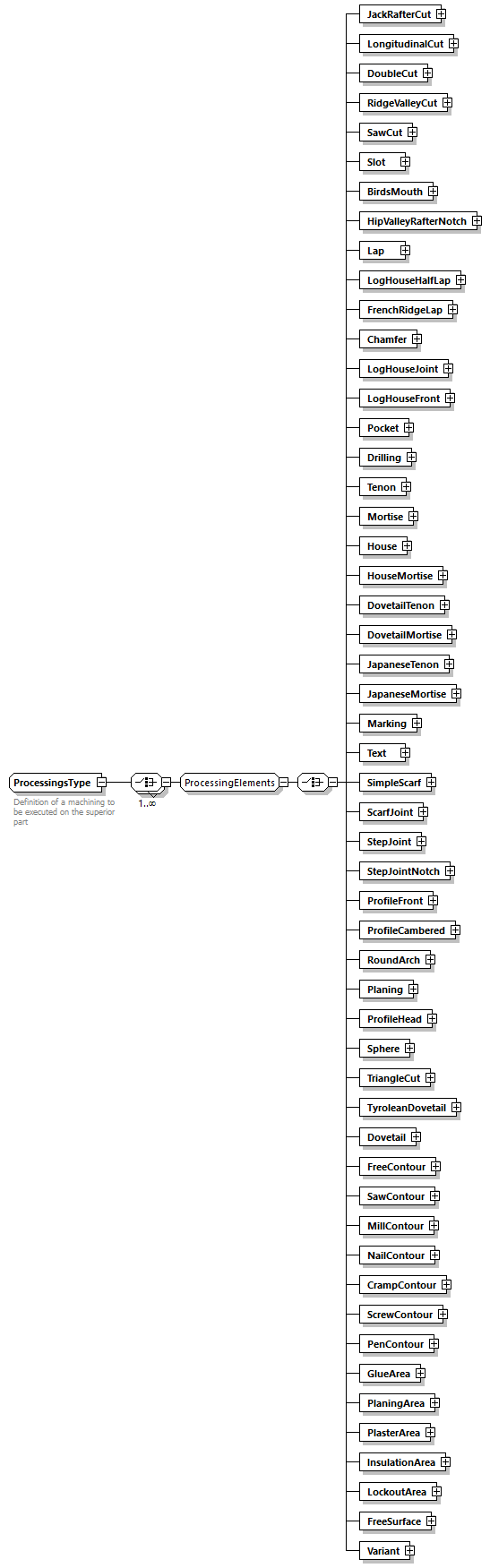

ProcessingsType
ProcessingType
ProfileArcType
ProfileCamberedType
ProfileFrontType
ProfileHeadType

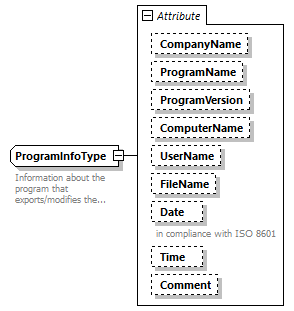

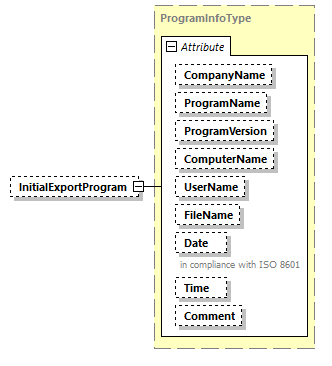

ProgramInfoType

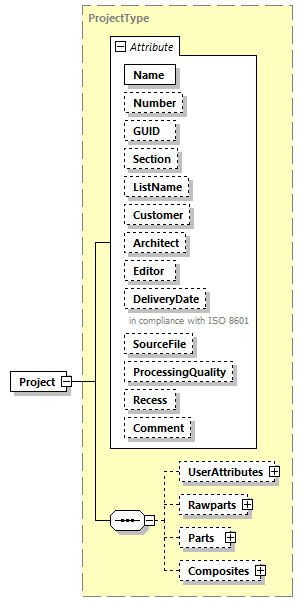

ProjectType
RawPartType

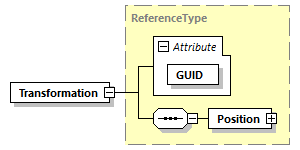

ReferenceType
RidgeValleyCutType

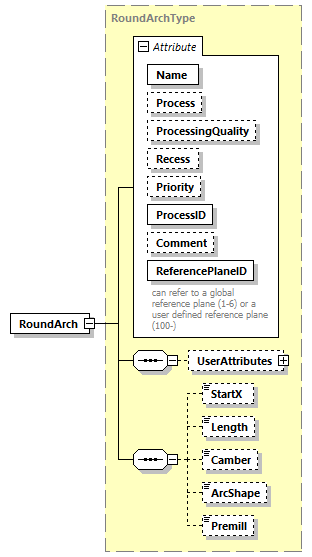

RoundArchType
SawContourType
SawCutMachiningLimitType
SawCutType
ScarfJointType
ScrewContourType
ShapeType
SimpleContour1Type
SimpleContourBase1Type
SimpleContourBase2Type

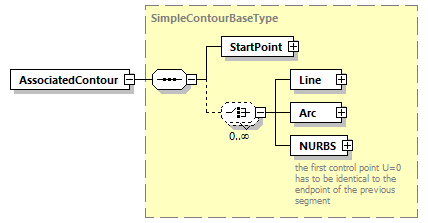

SimpleContourBaseType
SimpleContourIncType

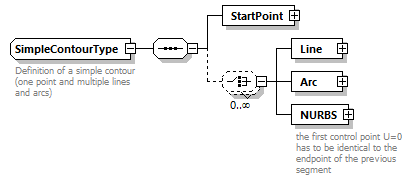

SimpleContourType
SimpleScarfType

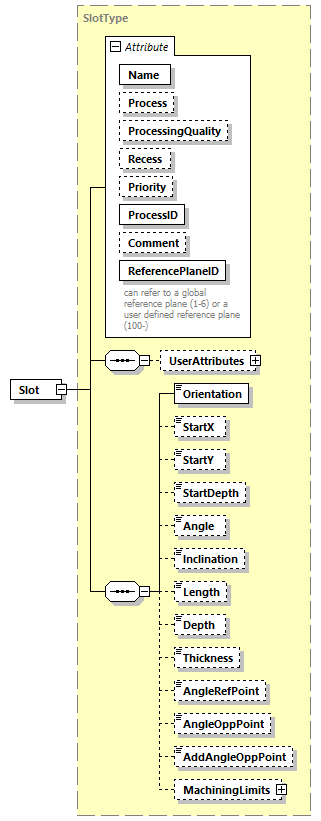

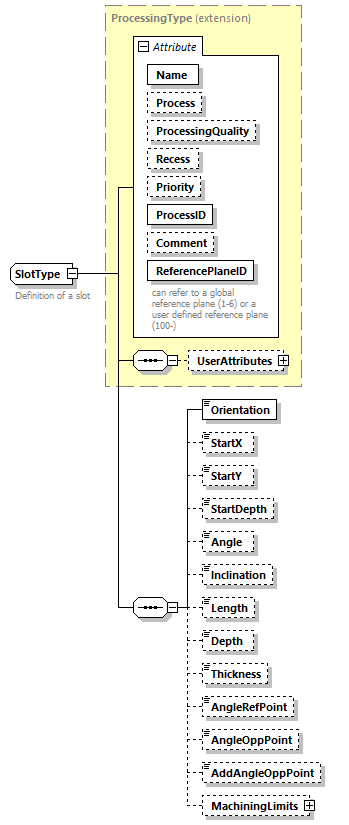

SlotType

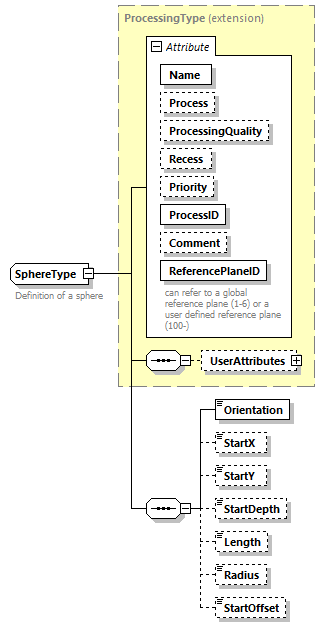

SphereType
StepJointNotchType

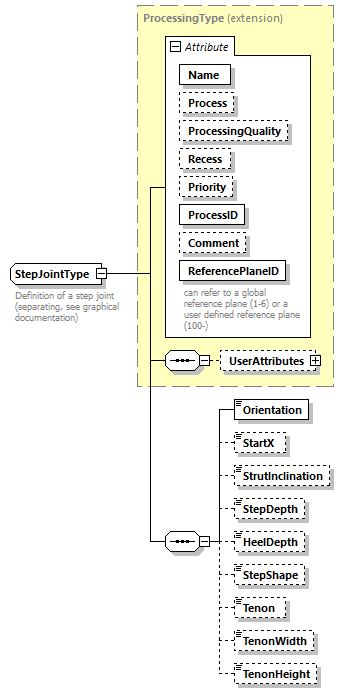

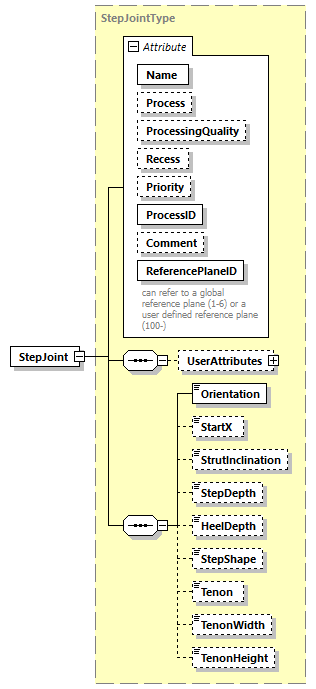

StepJointType

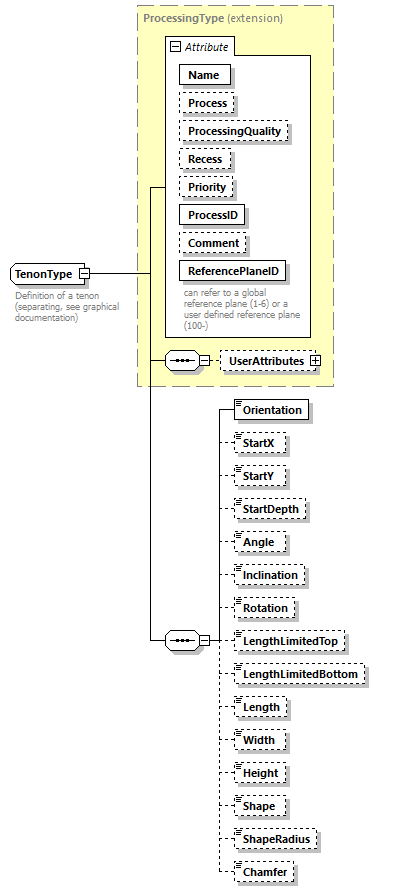

TenonType

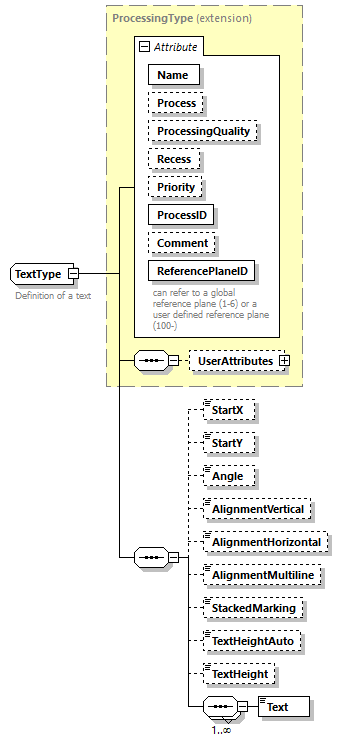

TextType

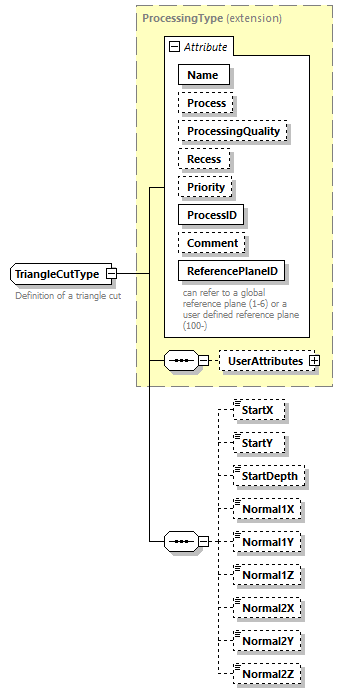

TriangleCutType

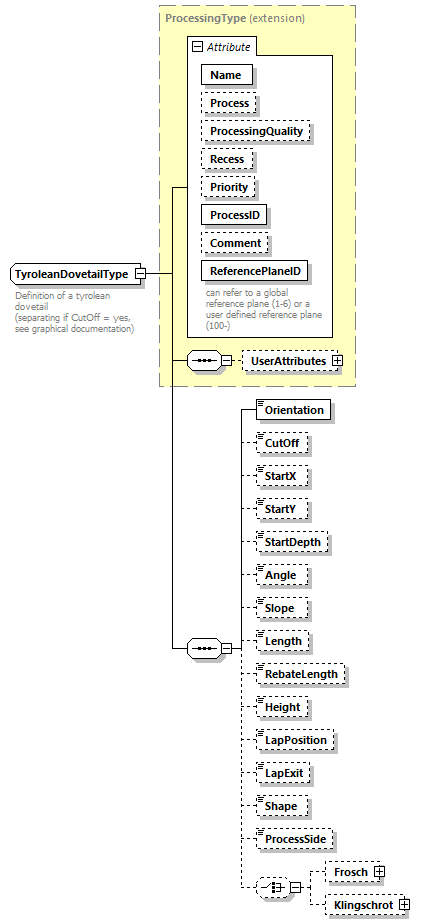

TyroleanDovetailType
UserAttributeType

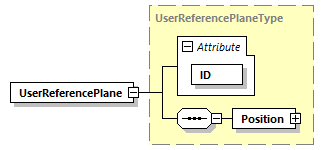

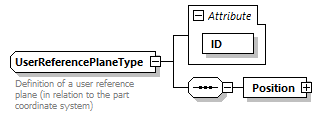

UserReferencePlaneType
VariantParameterType
VariantType


schema location:  https://www.web3d.org/specifications/x3d-3.3.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Groups  Complex types  Simple types  Attr. groups
Anchor  AppearanceChildContentModel  SceneGraphStructureStatement  accessTypeChoices  DEF_USE

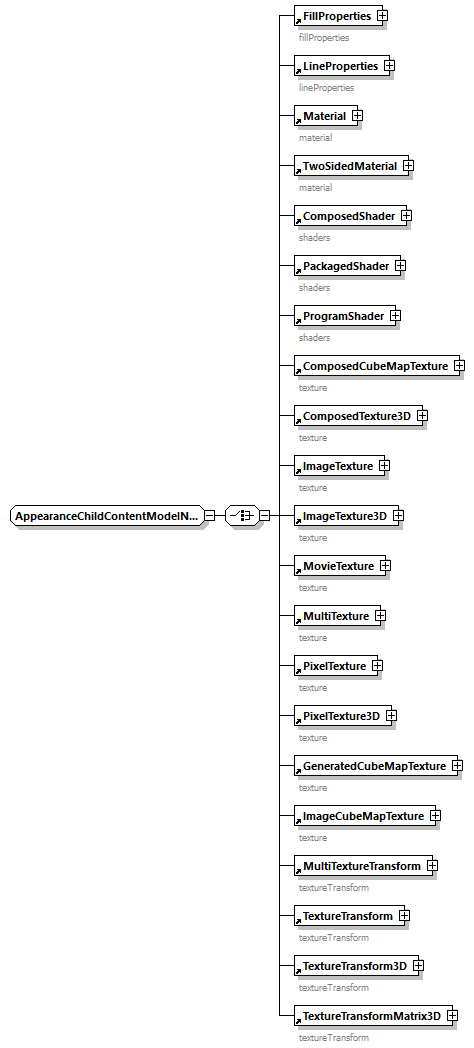

Appearance  AppearanceChildContentModelNoProtoInstance  X3DAppearanceChildNode  appliedParametersChoices  globalAttributes

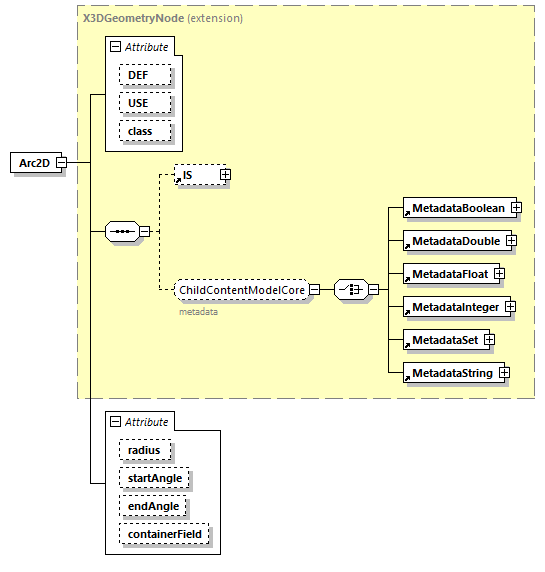

Arc2D  ChildContentModel  X3DAppearanceNode  bboxSizeType
ArcClose2D  ChildContentModelCore  X3DBackgroundNode  closureTypeChoices
AudioClip  ChildContentModelDIS  X3DBindableNode  componentNameChoices
Background  ChildContentModelFull  X3DBoundedObject  containerFieldChoicesAudioClip
BallJoint  ChildContentModelGeoSpatial  X3DChaserNode  containerFieldChoicesColor

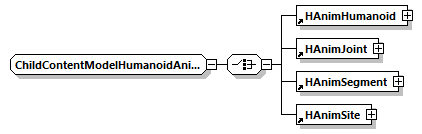

Billboard  ChildContentModelHumanoidAnimation  X3DChildNode  containerFieldChoicesDISEntityTypeMapping
BlendedVolumeStyle  ChildContentModelImmersive  X3DColorNode  containerFieldChoicesGroupLODShapeTransform

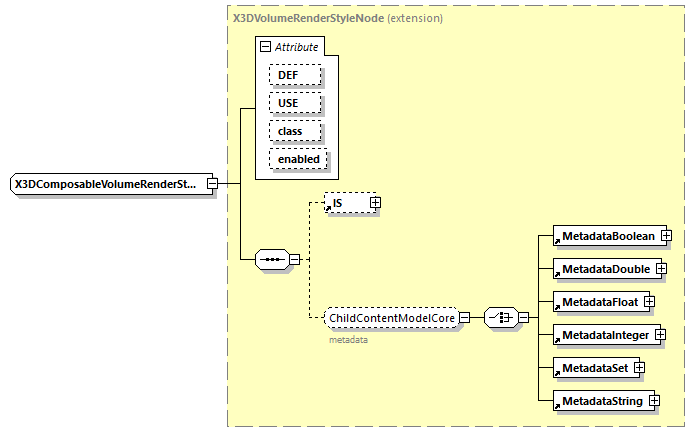

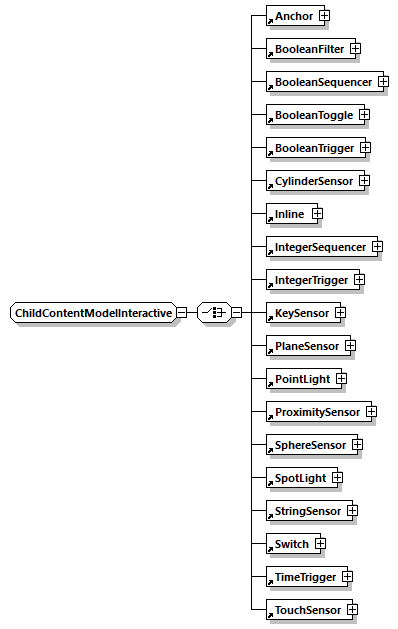

BooleanFilter  ChildContentModelInteractive  X3DComposableVolumeRenderStyleNode  containerFieldChoicesHAnimJoint
BooleanSequencer  ChildContentModelInterchange  X3DComposedGeometryNode  containerFieldChoicesHAnimSegment

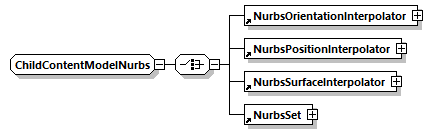

BooleanToggle  ChildContentModelNurbs  X3DCoordinateNode  containerFieldChoicesHAnimSite
BooleanTrigger  ChildContentModelProtoInstance  X3DDamperNode  containerFieldChoicesMetadata

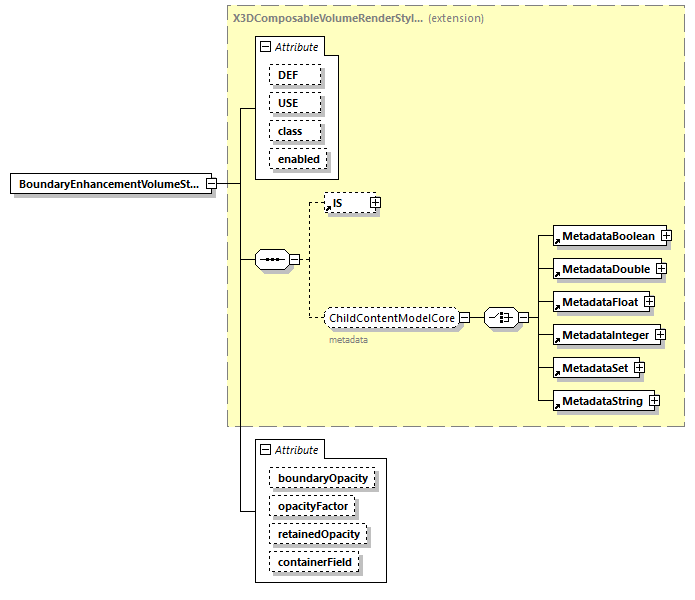

BoundaryEnhancementVolumeStyle  ChildContentModelSceneGraphStructure  X3DDragSensorNode  containerFieldChoicesPackagedShader
BoundedPhysicsModel  ColorCoordinateContentModel  X3DEnvironmentalSensorNode  containerFieldChoicesShaderPart

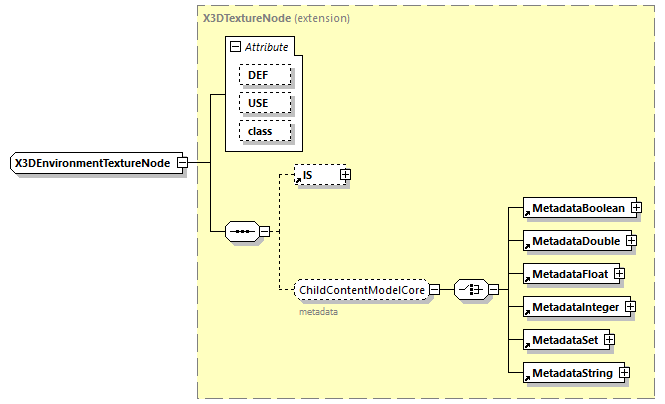

Box  ColorCoordinateNormalTexCoordContentModel  X3DEnvironmentTextureNode  containerFieldChoicesTextureCoordinate
CADAssembly  ColorNormalTexCoordContentModel  X3DField  containerFieldChoicesX3DCoordinateNode
CADFace  ComposedGeometryContentModel  X3DFogObject  containerFieldChoicesX3DNormalNode
CADLayer  GeometryContentModel  X3DFollowerNode  containerFieldChoicesX3DTexture2DNode
CADPart  GeometryContentModel2D  X3DFontStyleNode  containerFieldChoicesX3DTexture3DNode
CartoonVolumeStyle  GeometryContentModel2DImmersive  X3DGeometricPropertyNode  containerFieldChoicesX3DUrlObject
Circle2D  GeometryContentModelCAD  X3DGeometryNode  containerFieldChoicesX3dUrlObjectTexture
ClipPlane  GeometryContentModelGeoSpatial  X3DGroupingNode  fieldTypeChoices
CollidableOffset  GeometryContentModelImmersive  X3DInfoNode  fogTypeChoices
CollidableShape  GeometryContentModelInteractive  X3DInterpolatorNode  fontFamilyValues
Collision  GeometryContentModelInterchange  X3DKeyDeviceSensorNode  fontStyleChoices
CollisionCollection  GeometryContentModelNurbs  X3DLayerNode  forceOutputValues

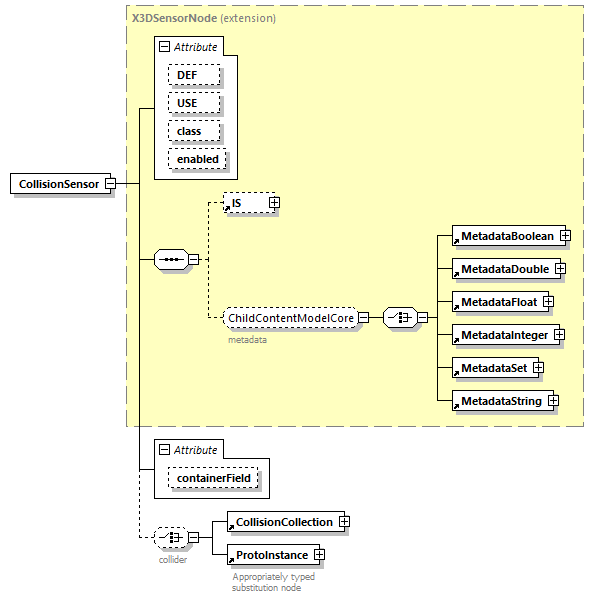

CollisionSensor  GroupingNodeChildContentModel  X3DLayoutNode  generatedCubeMapTextureUpdateChoices
CollisionSpace  LayoutGroupContentModel  X3DLightNode  geoMetadataKeyValues

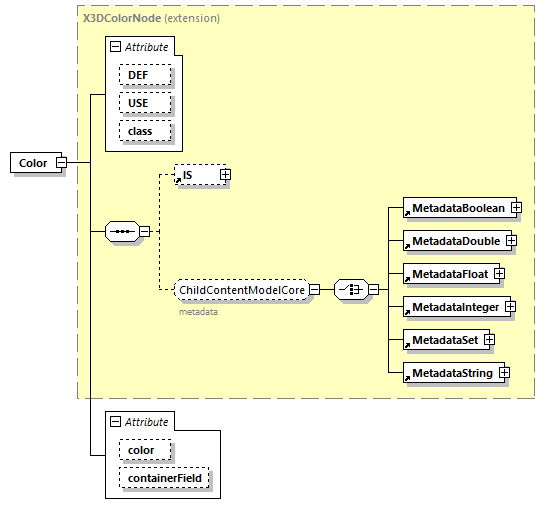

Color  LoadSensorChildContentModel  X3DMaterialNode  geoSystemEarthEllipsoidValues

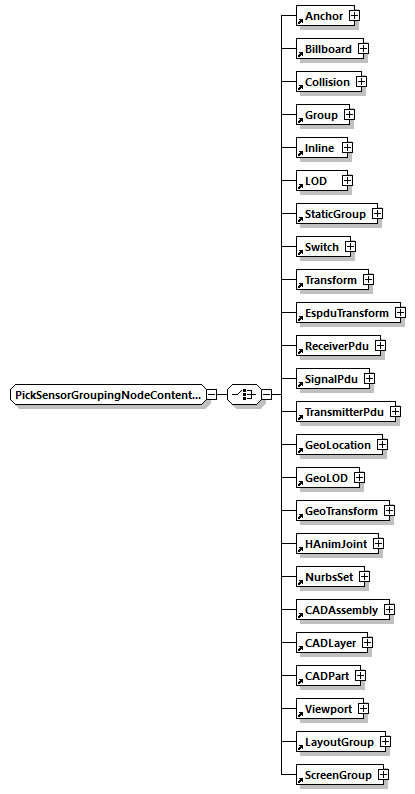

ColorChaser  PickSensorGroupingNodeContentModel  X3DMetadataObject  geoSystemSpatialReferenceFrameValues
ColorDamper  RigidBodyCollectionContentModel  X3DNBodyCollidableNode  geoSystemType

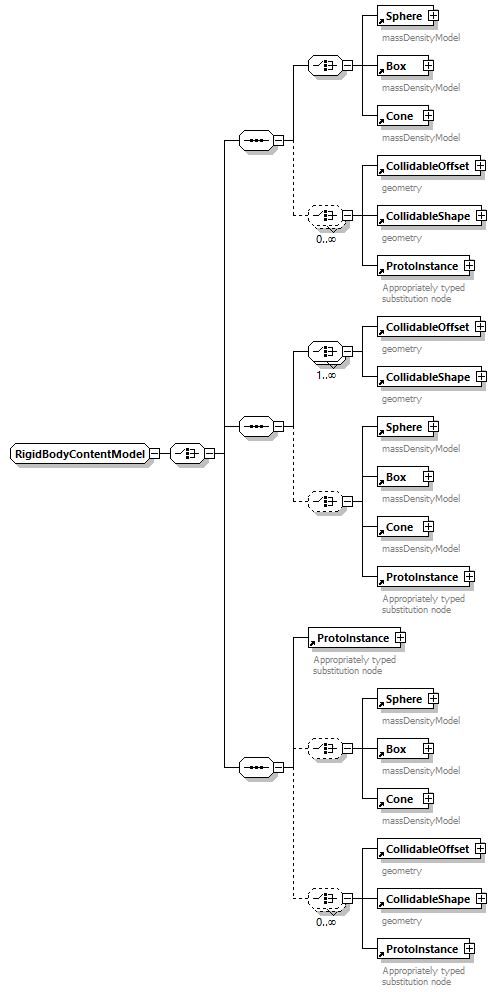

ColorInterpolator  RigidBodyContentModel  X3DNBodyCollisionSpaceNode  hanimFeaturePointNameValues

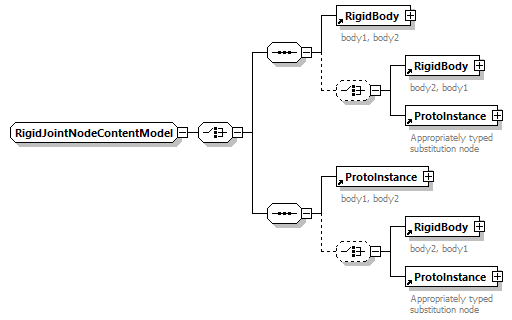

ColorRGBA  RigidJointNodeContentModel  X3DNetworkSensorNode  hanimHumanoidInfoKeyValues

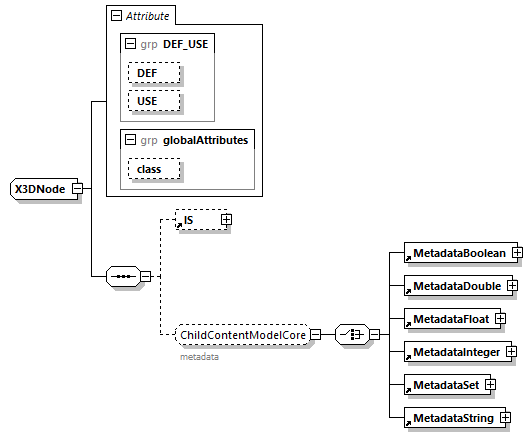

component  SceneGraphFragmentContentModel  X3DNode  hanimJointNameValues
ComposedCubeMapTexture  SceneGraphFragmentWithPrototypeDeclarationsContentModel  X3DNodeMixedContent  hanimSegmentNameValues

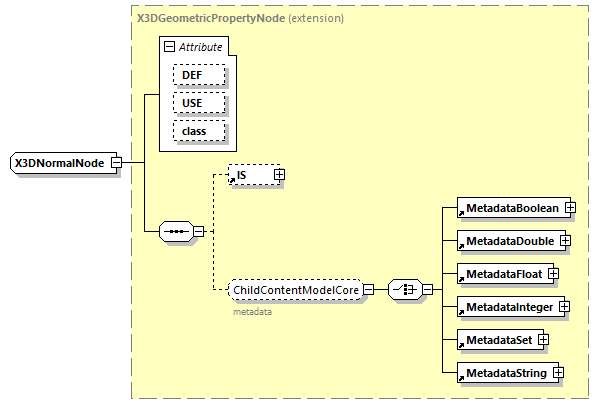

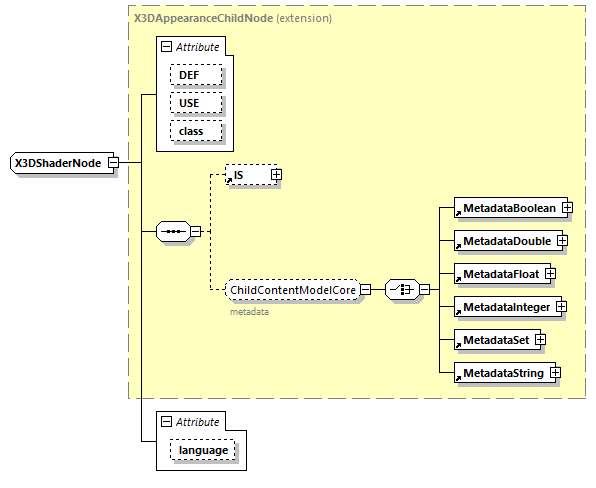

ComposedShader  ShapeChildContentModel  X3DNormalNode  hanimVersionChoices

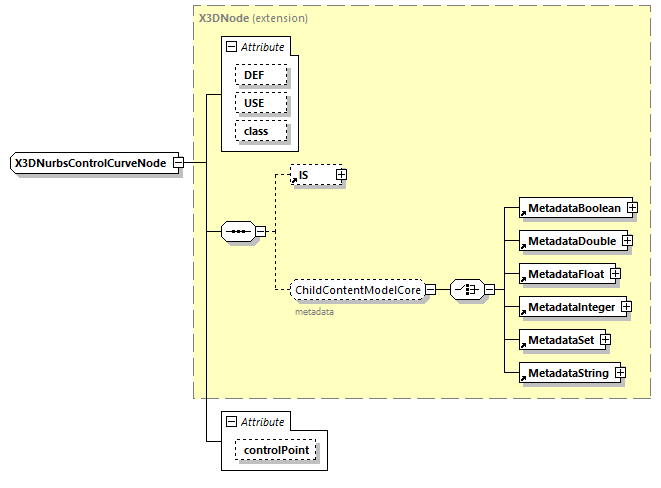

ComposedTexture3D  SoundChildContentModel  X3DNurbsControlCurveNode  initializeOnlyAccessTypes

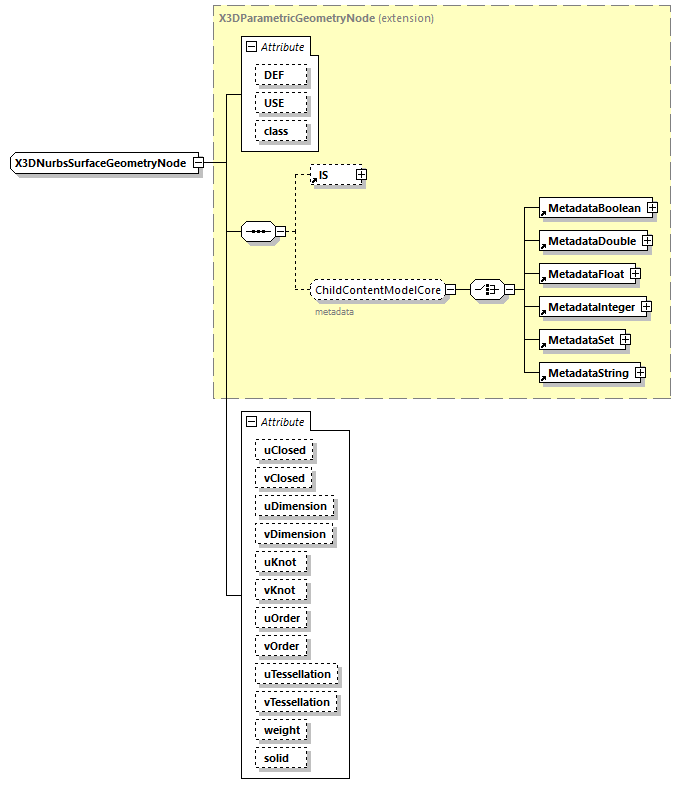

ComposedVolumeStyle  TextChildContentModel  X3DNurbsSurfaceGeometryNode  inputOnlyAccessTypes
Cone  Texture2DContentModel  X3DParametricGeometryNode  inputOutputAccessTypes

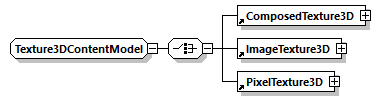

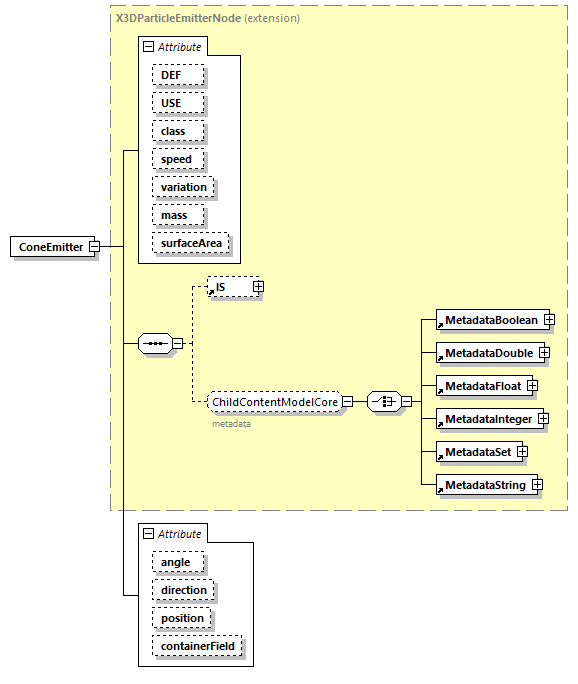

ConeEmitter  Texture3DContentModel  X3DParticleEmitterNode  intersectionTypeValues
connect  TextureBackgroundChildContentModel  X3DParticlePhysicsModelNode  justifyChoices

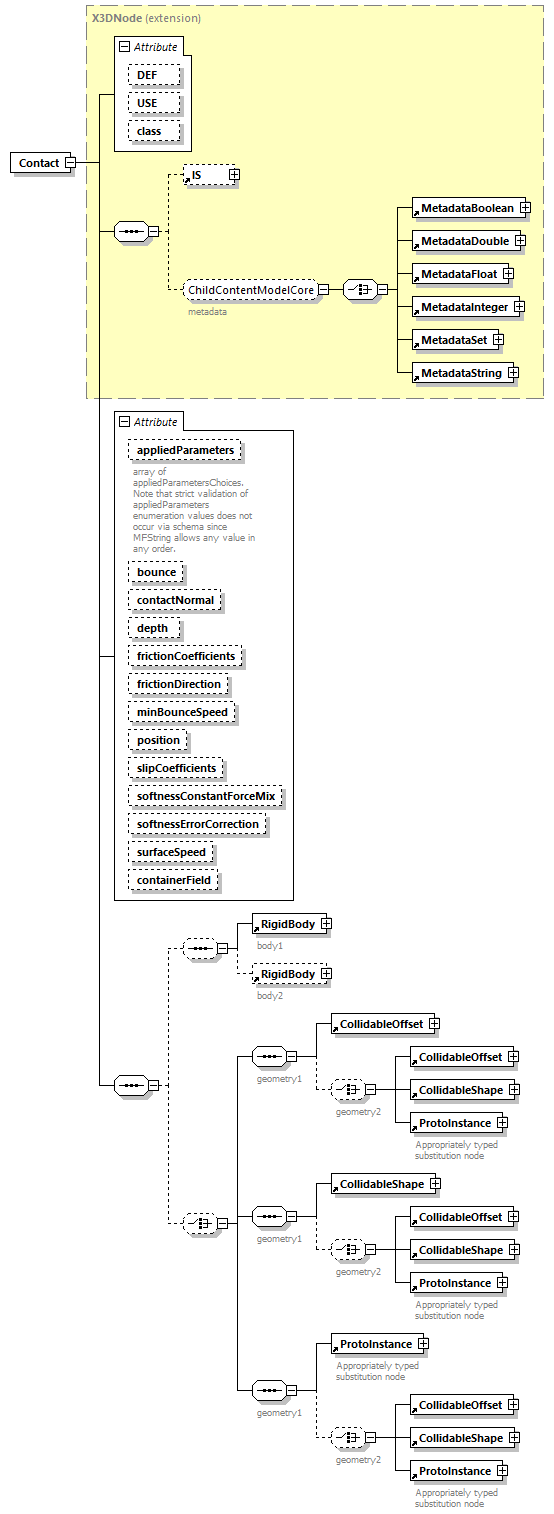

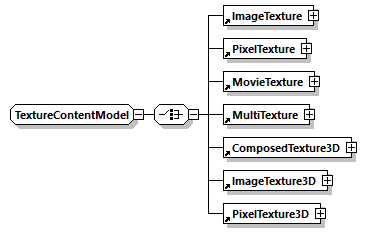

Contact  TextureContentModel  X3DPickableObject  layoutAlignChoices
Contour2D  VolumeRenderStyleContentModel  X3DPickSensorNode  layoutScaleModeChoices
ContourPolyline2D  X3DPointingDeviceSensorNode  layoutUnitsChoices
Coordinate  X3DProductStructureChildNode  metaDirectionChoices
CoordinateChaser  X3DProgrammableShaderObject  metaNameValues
CoordinateDamper  X3DPrototypeInstance  MFBool
CoordinateDouble  X3DRigidJointNode  MFColor
CoordinateInterpolator  X3DScriptNode  MFColorRGBA
CoordinateInterpolator2D  X3DSensorNode  MFDouble
Cylinder  X3DSequencerNode  MFFloat

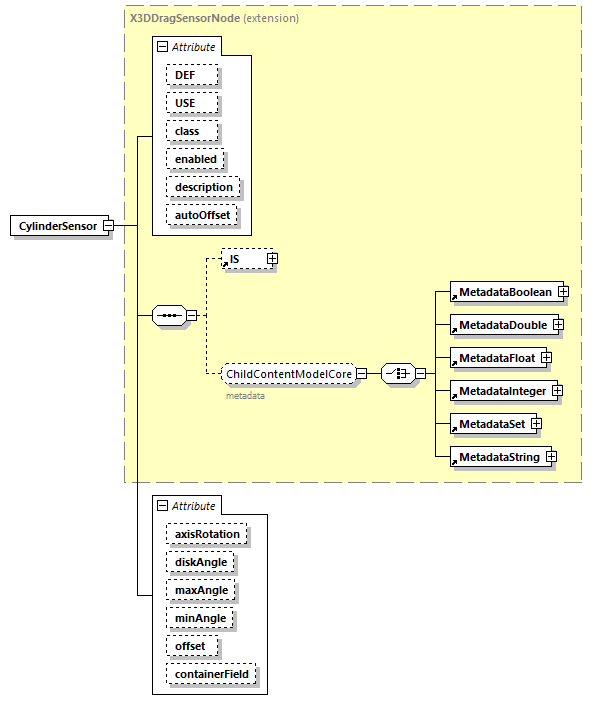

CylinderSensor  X3DShaderNode  MFImage
DirectionalLight  X3DShapeNode  MFInt32

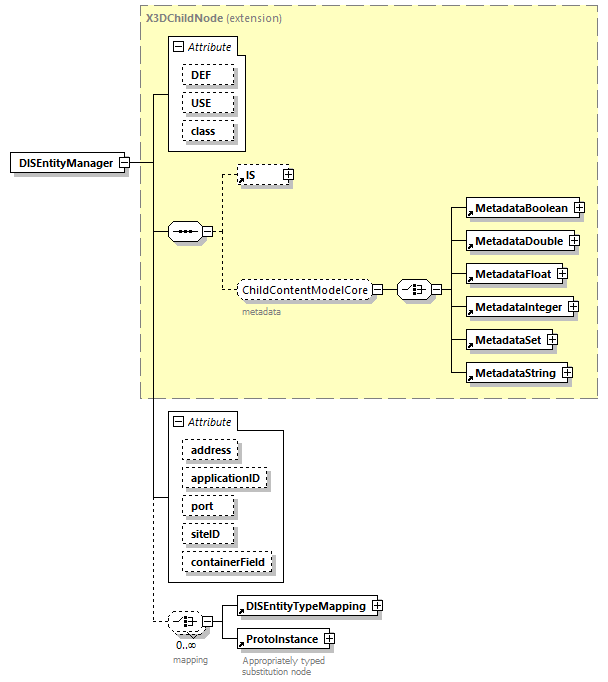

DISEntityManager  X3DSoundNode  MFMatrix3d

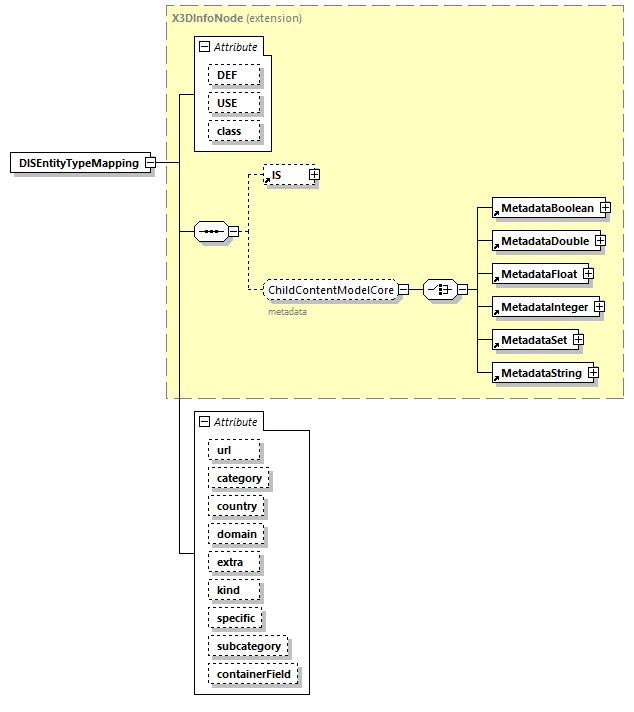

DISEntityTypeMapping  X3DSoundSourceNode  MFMatrix3f
Disk2D  X3DTexture2DNode  MFMatrix4d

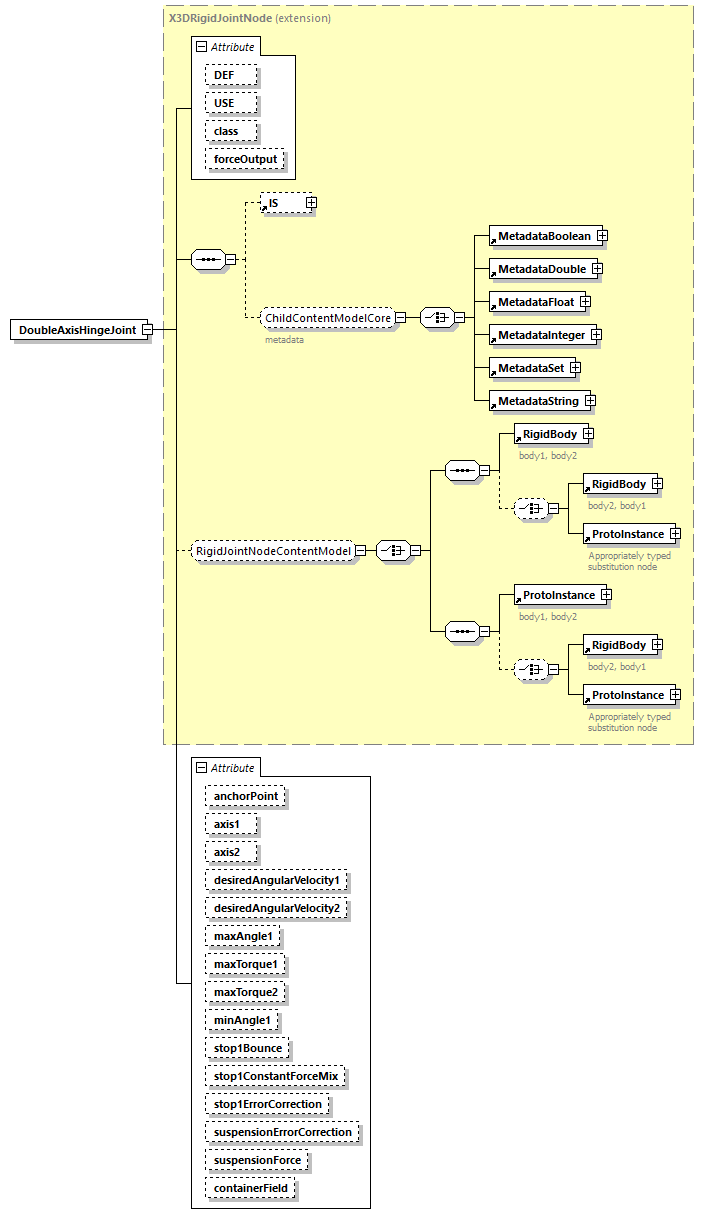

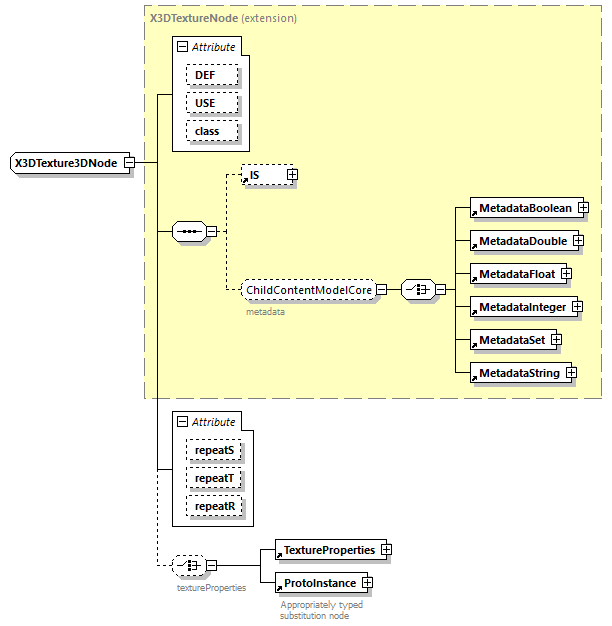

DoubleAxisHingeJoint  X3DTexture3DNode  MFMatrix4f
EaseInEaseOut  X3DTextureCoordinateNode  MFNode
EdgeEnhancementVolumeStyle  X3DTextureNode  MFRotation
ElevationGrid  X3DTextureTransformNode  MFString
EspduTransform  X3DTimeDependentNode  MFTime
ExplosionEmitter  X3DTouchSensorNode  MFVec2d

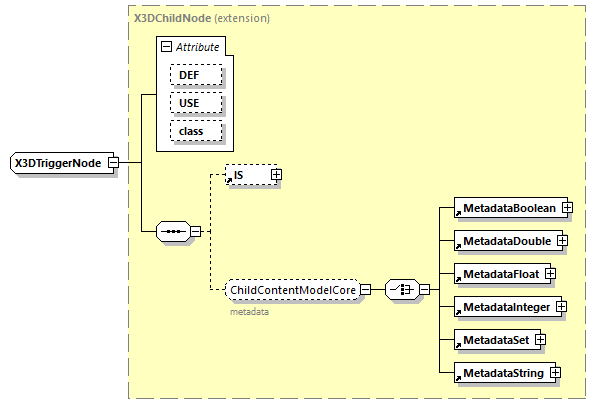

EXPORT  X3DTriggerNode  MFVec2f
ExternProtoDeclare  X3DUrlObject  MFVec3d

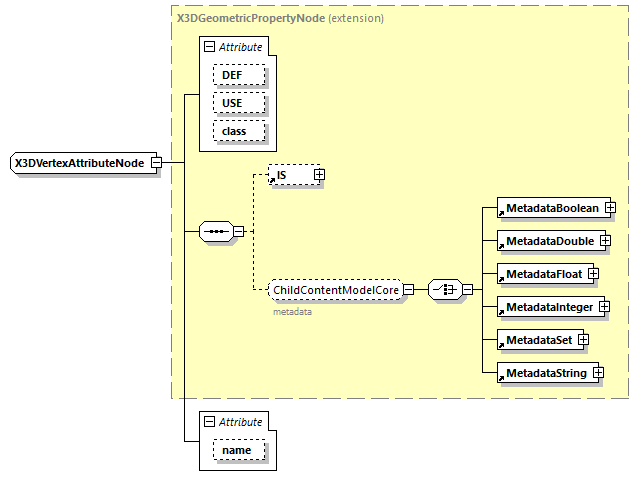

Extrusion  X3DVertexAttributeNode  MFVec3f
field  X3DViewpointNode  MFVec4d
fieldValue  X3DViewportNode  MFVec4f
FillProperties  X3DVolumeDataNode  multiTextureFunctionValues

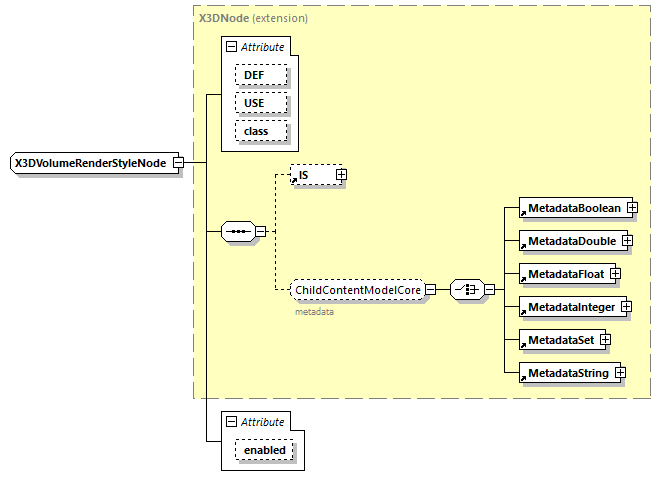

FloatVertexAttribute  X3DVolumeRenderStyleNode  multiTextureModeValues
Fog  multiTextureSourceValues
FogCoordinate  navigationTransitionTypeValues
FontStyle  navigationTypeValues
ForcePhysicsModel  networkModeChoices

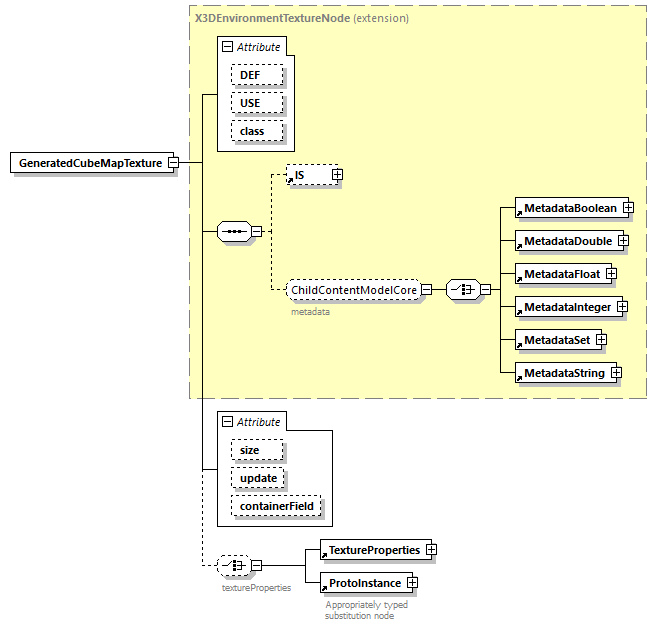

GeneratedCubeMapTexture  outputOnlyAccessTypes
GeoCoordinate  particleSystemGeometryTypeValues
GeoElevationGrid  phaseFunctionValues
GeoLocation  pickableObjectTypeValues
GeoLOD  pickSensorMatchCriterionChoices
GeoMetadata  pickSensorSortOrderValues
GeoOrigin  profileNameChoices
GeoPositionInterpolator  projectionVolumeStyleTypeChoices

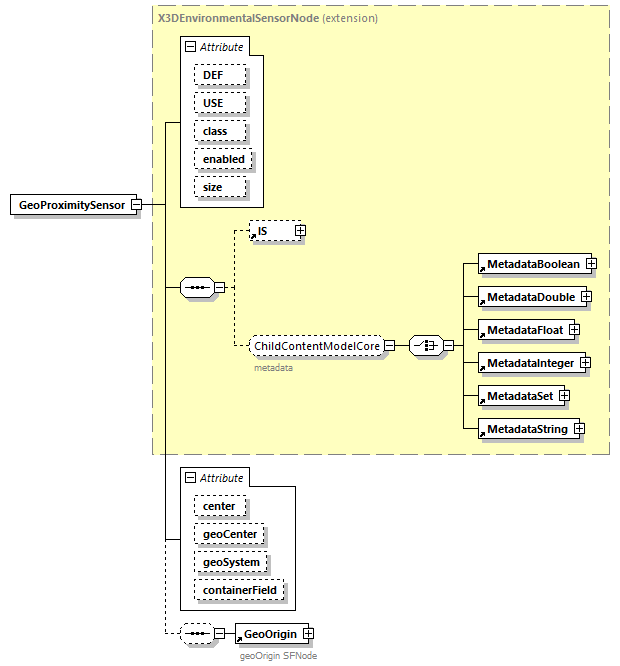

GeoProximitySensor  SFBool
GeoTouchSensor  SFColor
GeoTransform  SFColorRGBA

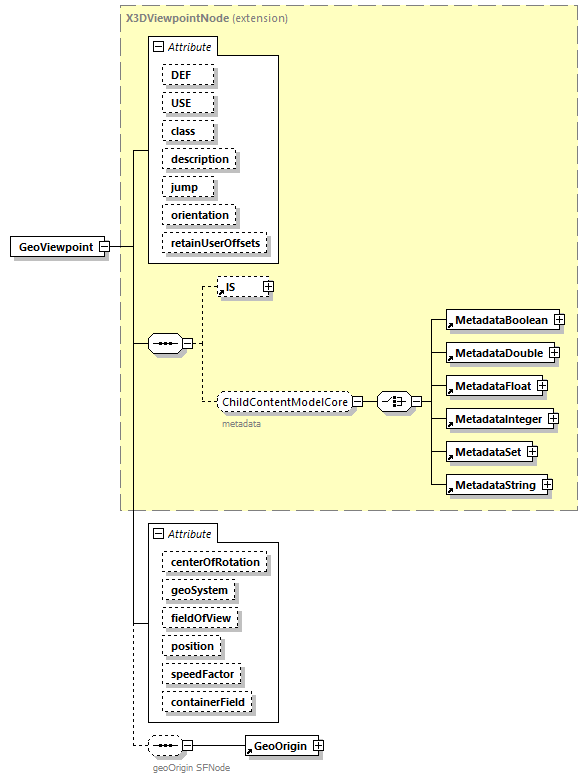

GeoViewpoint  SFDouble
Group  SFFloat
HAnimDisplacer  SFImage
HAnimHumanoid  SFInt32
HAnimJoint  SFMatrix3d
HAnimSegment  SFMatrix3f
HAnimSite  SFMatrix4d
head  SFMatrix4f
ImageCubeMapTexture  SFNode
ImageTexture  SFRotation
ImageTexture3D  SFString
IMPORT  SFTime

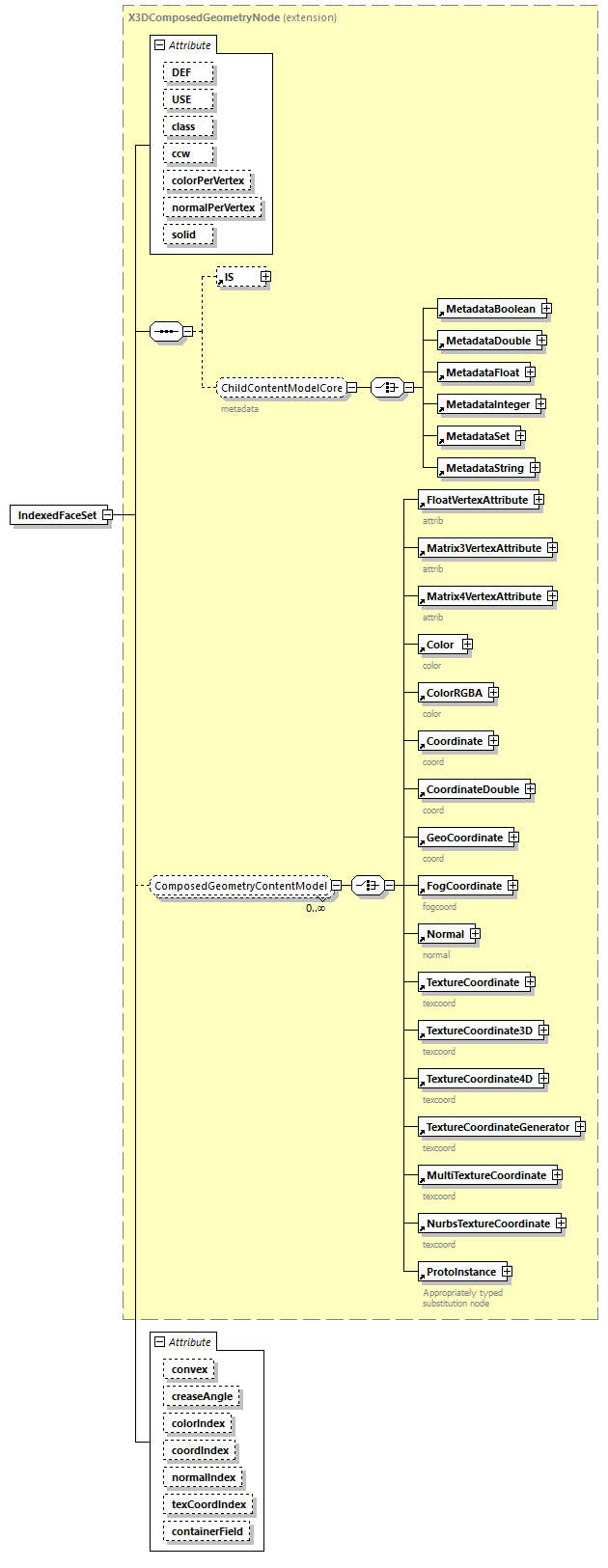

IndexedFaceSet  SFVec2d
IndexedLineSet  SFVec2f
IndexedQuadSet  SFVec3d
IndexedTriangleFanSet  SFVec3f
IndexedTriangleSet  SFVec4d
IndexedTriangleStripSet  SFVec4f
Inline  shaderLanguageValues
IntegerSequencer  shaderPartTypeValues
IntegerTrigger  textureBoundaryModeChoices
IS  textureCompressionModeChoices
IsoSurfaceVolumeData  textureCoordinateGeneratorModeChoices
KeySensor  textureMagnificationModeChoices
Layer  textureMinificationModeChoices
LayerSet  unitCategoryChoices
Layout  unitIntervalType
LayoutGroup  volumeRenderingWeightFunctionChoices
LayoutLayer  x3dVersionChoices
LinePickSensor
LineProperties
LineSet
LoadSensor
LocalFog
LOD
Material

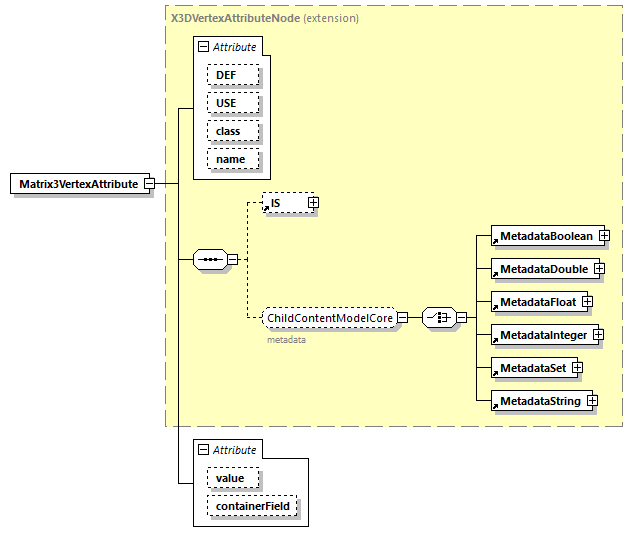

Matrix3VertexAttribute

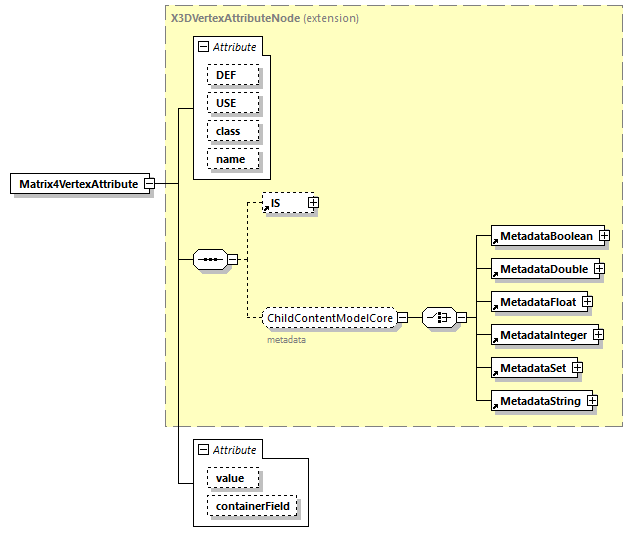

Matrix4VertexAttribute
meta
MetadataBoolean
MetadataDouble
MetadataFloat
MetadataInteger
MetadataSet
MetadataString
MotorJoint

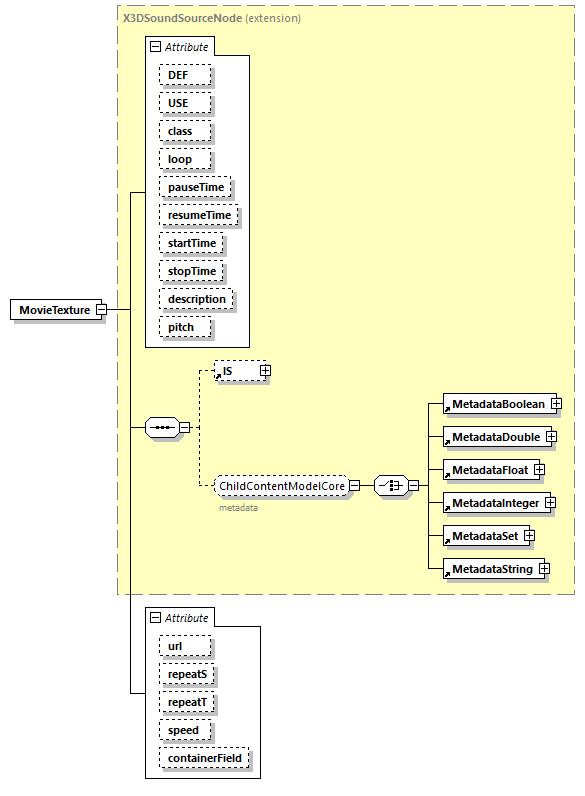

MovieTexture
MultiTexture
MultiTextureCoordinate

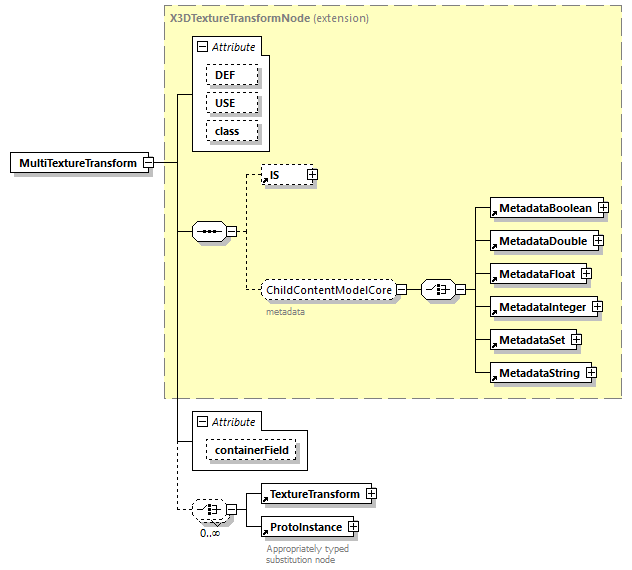

MultiTextureTransform
NavigationInfo
Normal
NormalInterpolator
NurbsCurve
NurbsCurve2D

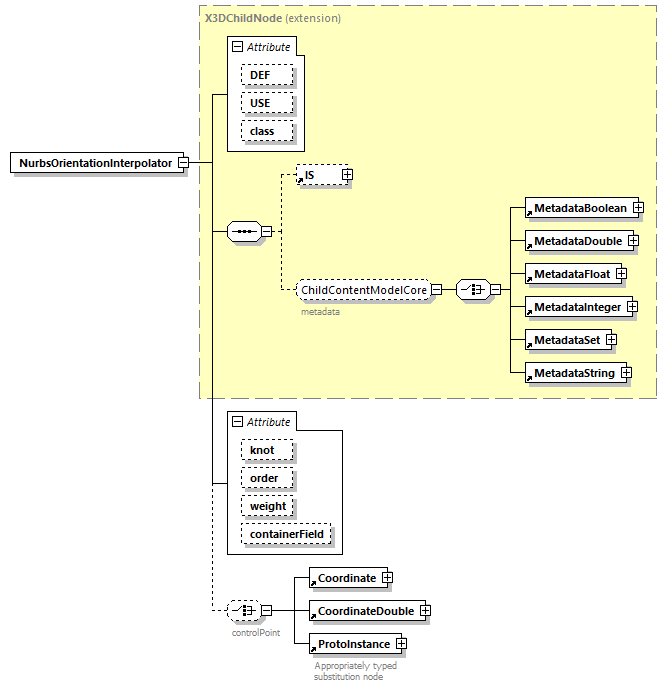

NurbsOrientationInterpolator

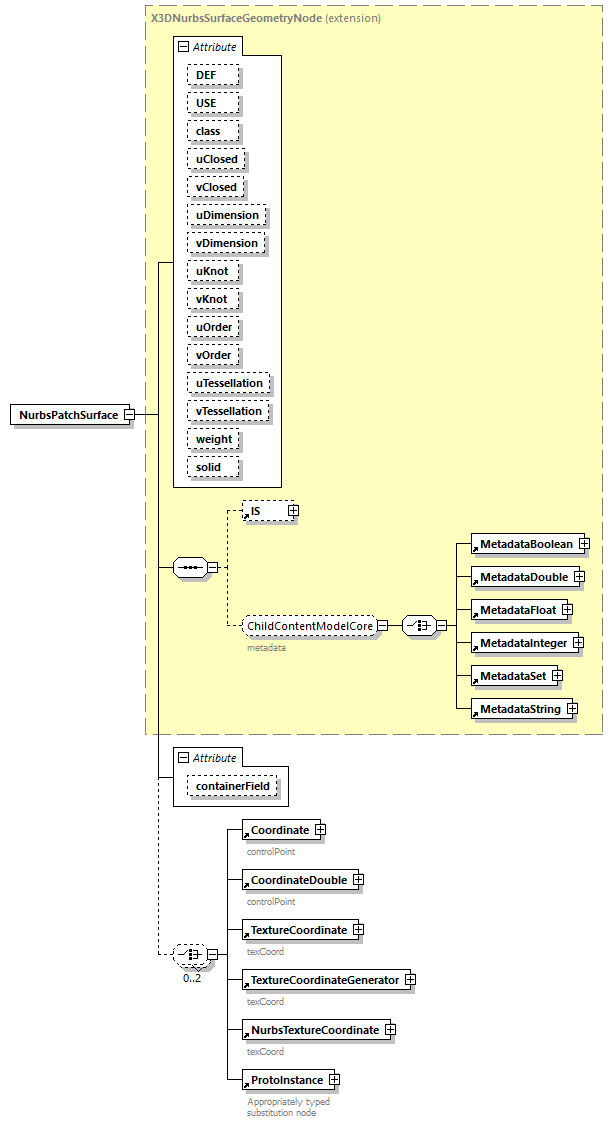

NurbsPatchSurface
NurbsPositionInterpolator
NurbsSet
NurbsSurfaceInterpolator

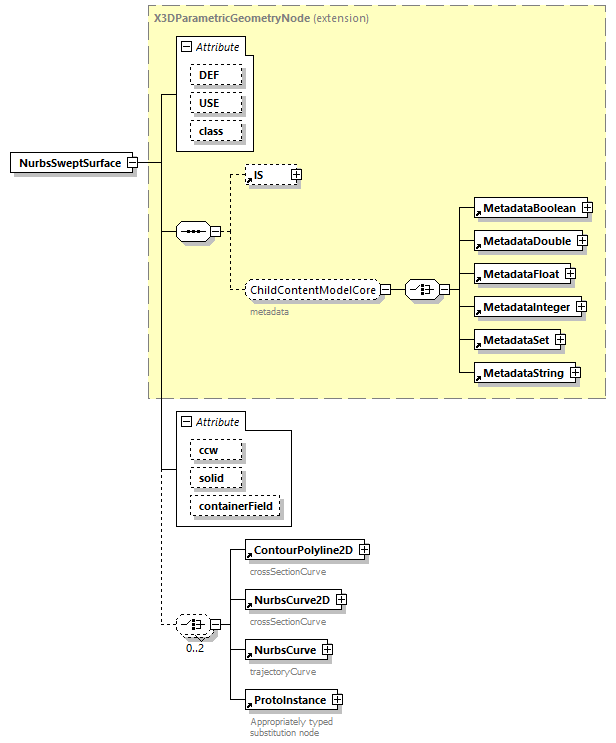

NurbsSweptSurface
NurbsSwungSurface
NurbsTextureCoordinate
NurbsTrimmedSurface

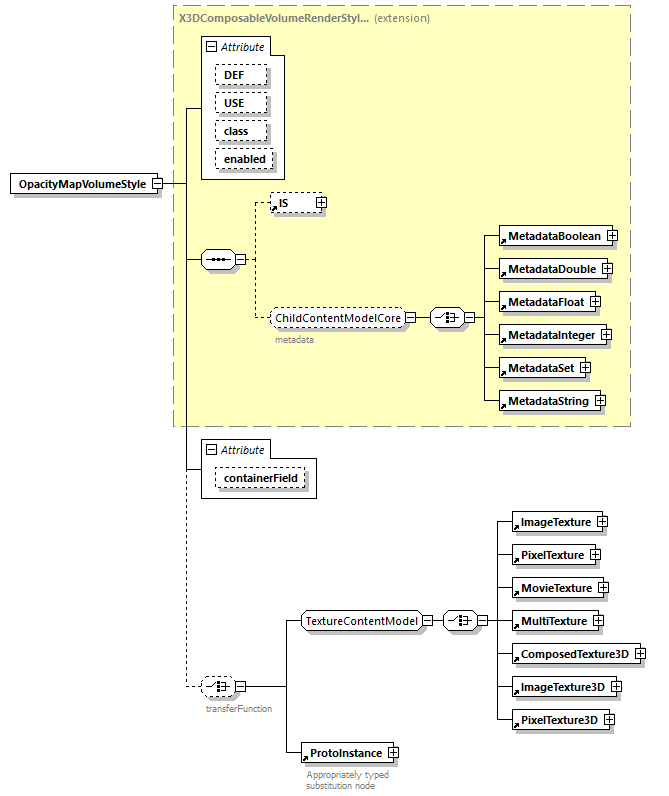

OpacityMapVolumeStyle
OrientationChaser
OrientationDamper
OrientationInterpolator

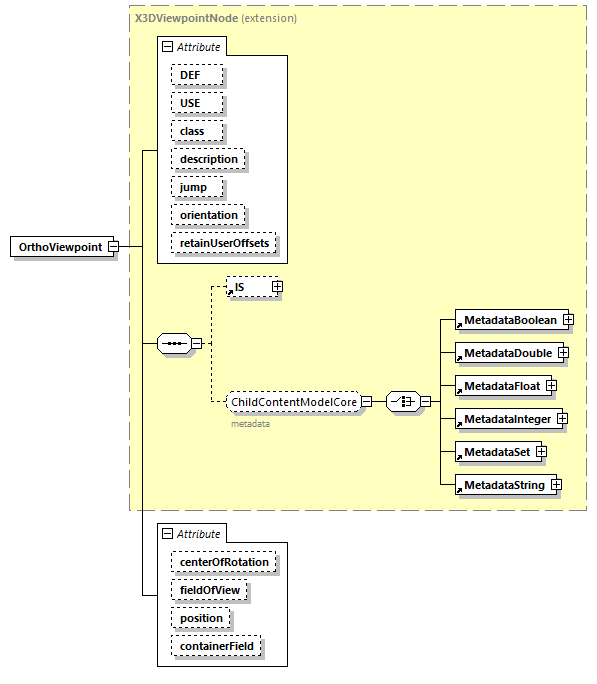

OrthoViewpoint
PackagedShader
ParticleSystem
PickableGroup
PixelTexture
PixelTexture3D
PlaneSensor
PointEmitter
PointLight
PointPickSensor
PointSet

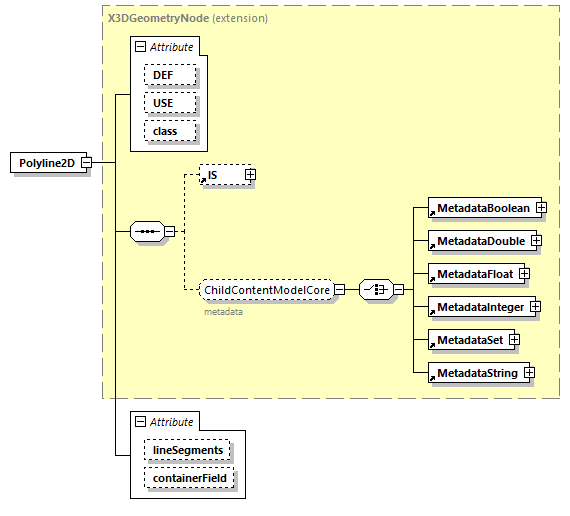

Polyline2D
PolylineEmitter
Polypoint2D
PositionChaser
PositionChaser2D
PositionDamper

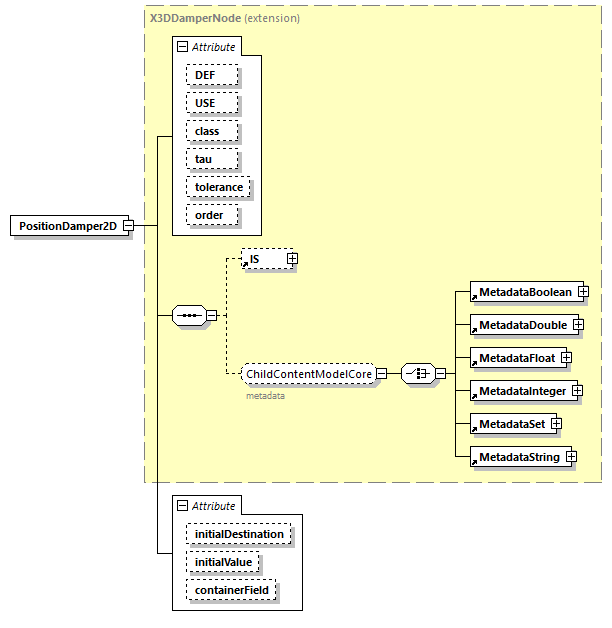

PositionDamper2D
PositionInterpolator
PositionInterpolator2D
PrimitivePickSensor
ProgramShader
ProjectionVolumeStyle
ProtoBody

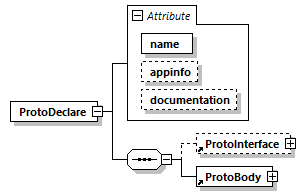

ProtoDeclare
ProtoInstance
ProtoInterface
ProximitySensor
QuadSet
ReceiverPdu
Rectangle2D

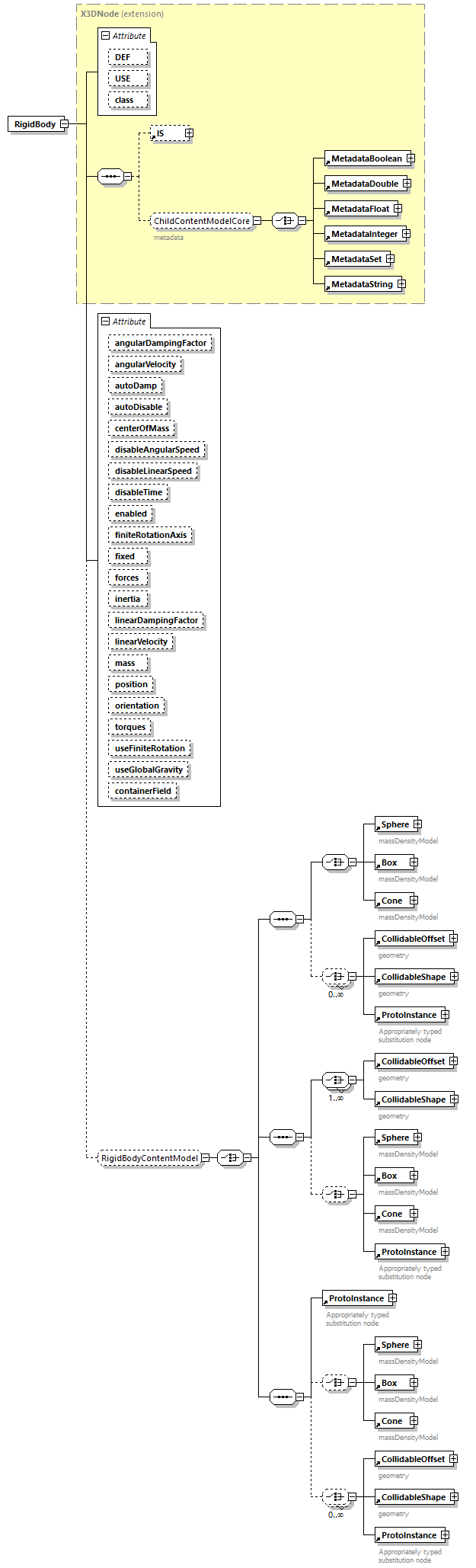

RigidBody

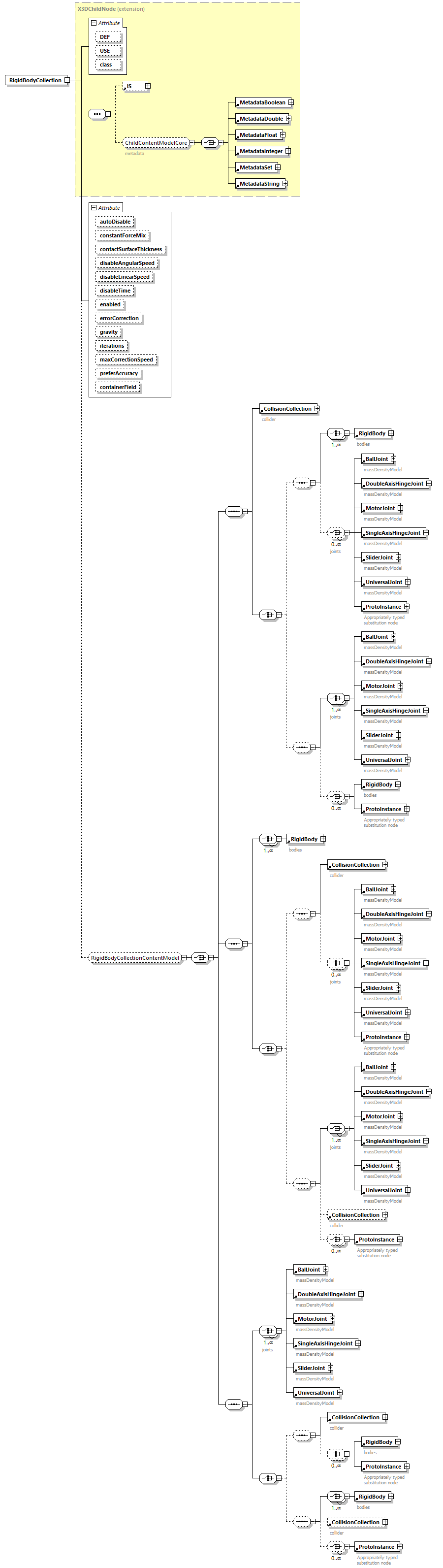

RigidBodyCollection
ROUTE
ScalarChaser
ScalarDamper
ScalarInterpolator
Scene

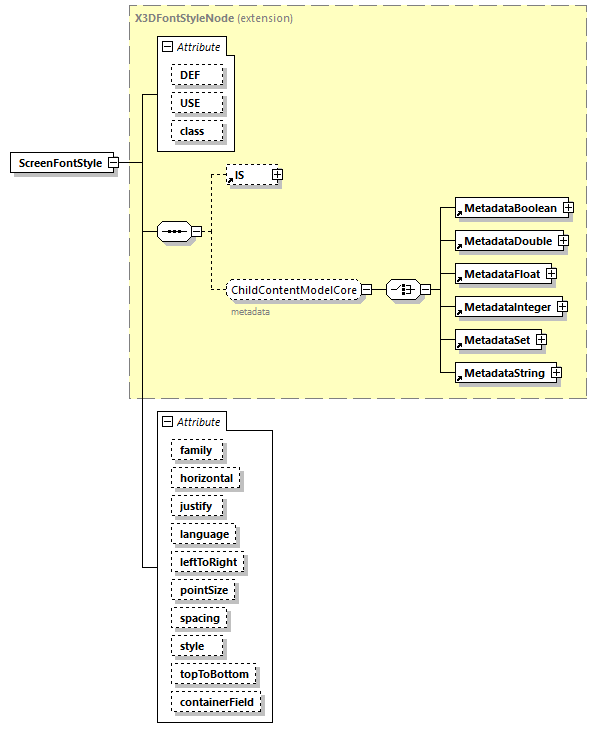

ScreenFontStyle
ScreenGroup
Script
SegmentedVolumeData
ShadedVolumeStyle

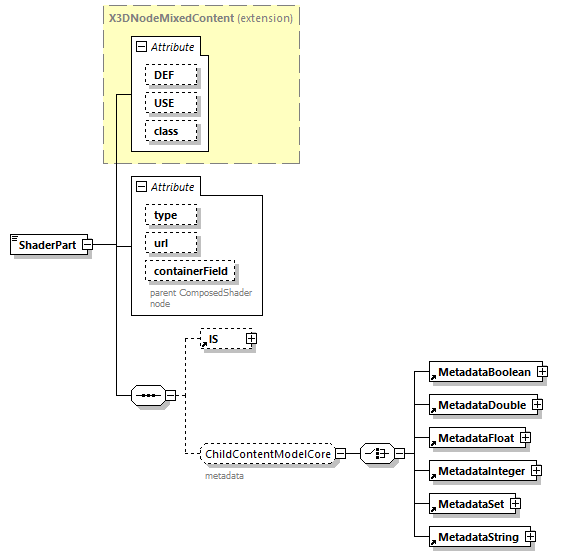

ShaderPart

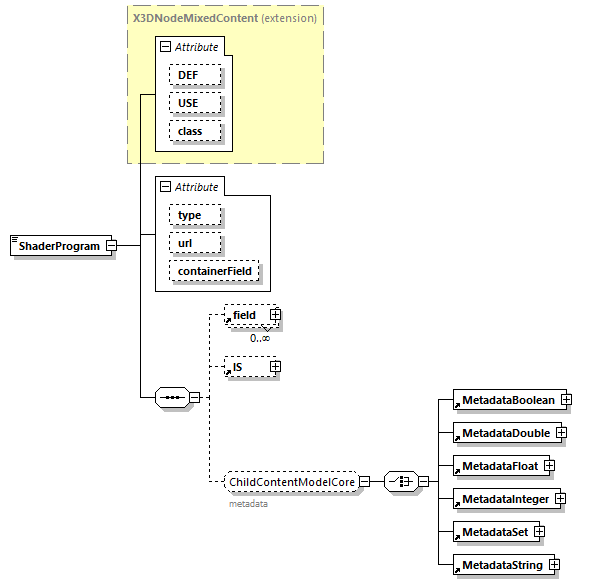

ShaderProgram
Shape
SignalPdu
SilhouetteEnhancementVolumeStyle
SingleAxisHingeJoint
SliderJoint
Sound
Sphere

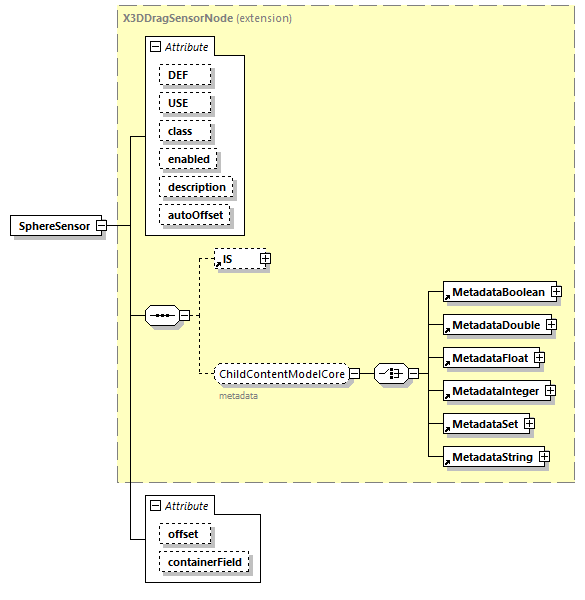

SphereSensor
SplinePositionInterpolator

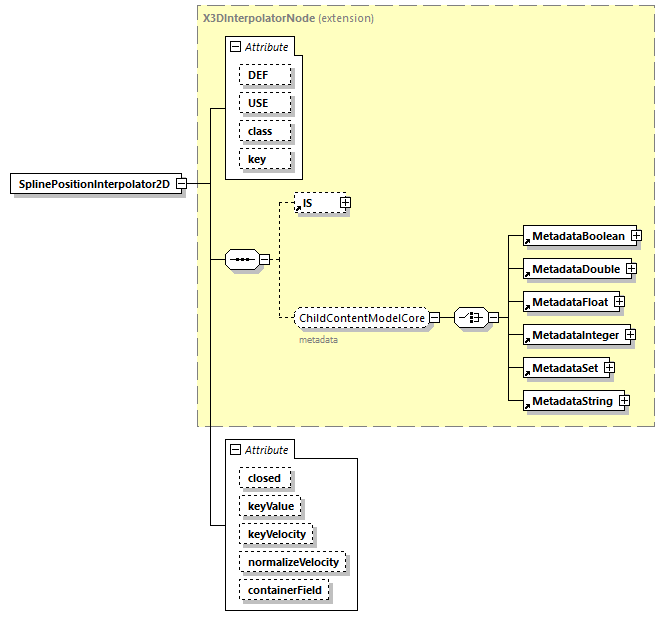

SplinePositionInterpolator2D

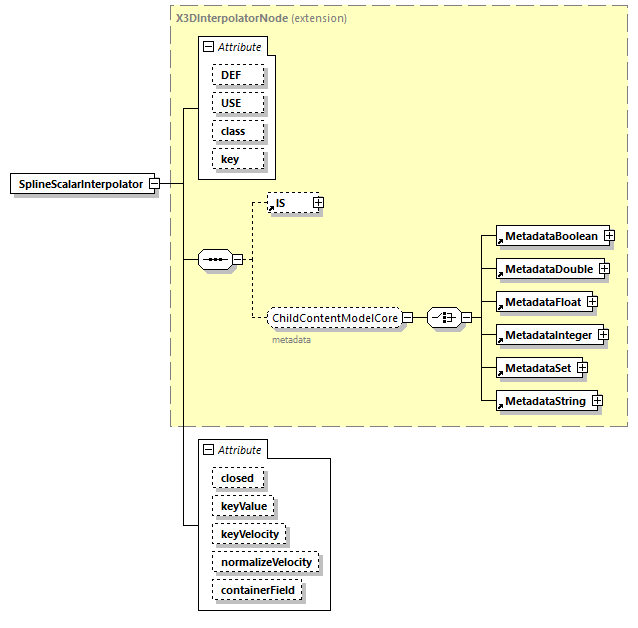

SplineScalarInterpolator
SpotLight
SquadOrientationInterpolator
StaticGroup
StringSensor
SurfaceEmitter
Switch
TexCoordChaser2D

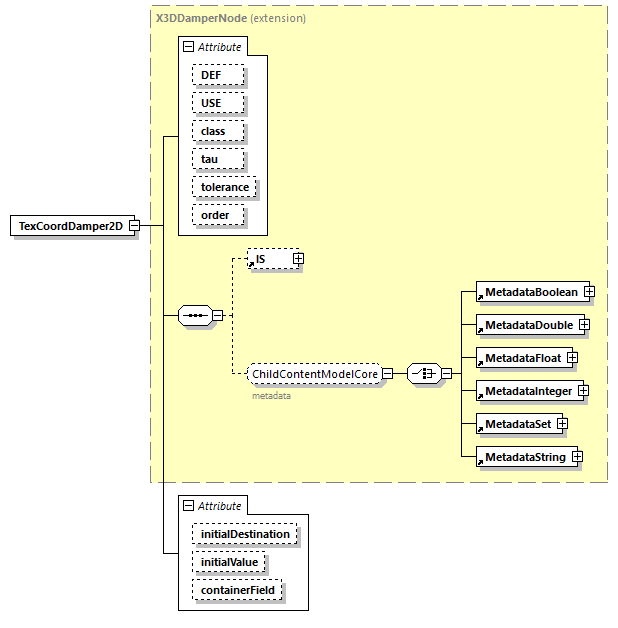

TexCoordDamper2D
Text

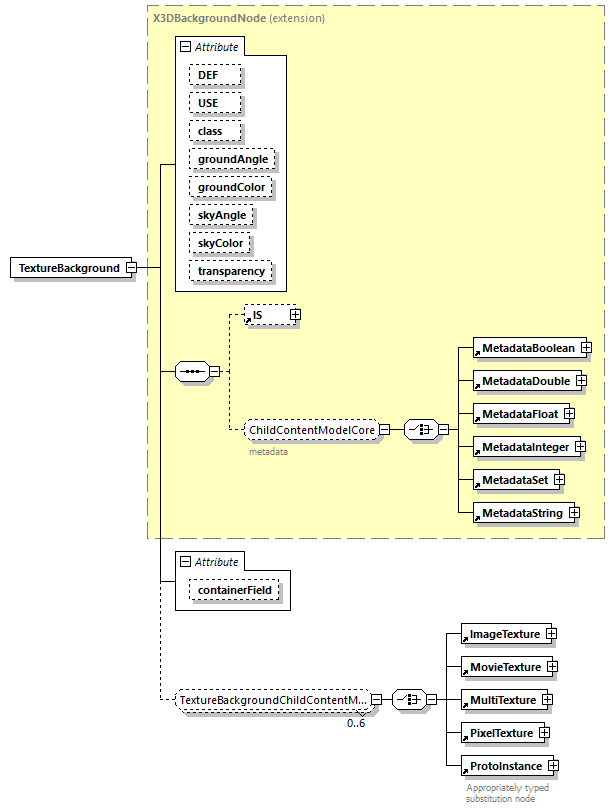

TextureBackground
TextureCoordinate
TextureCoordinate3D
TextureCoordinate4D
TextureCoordinateGenerator

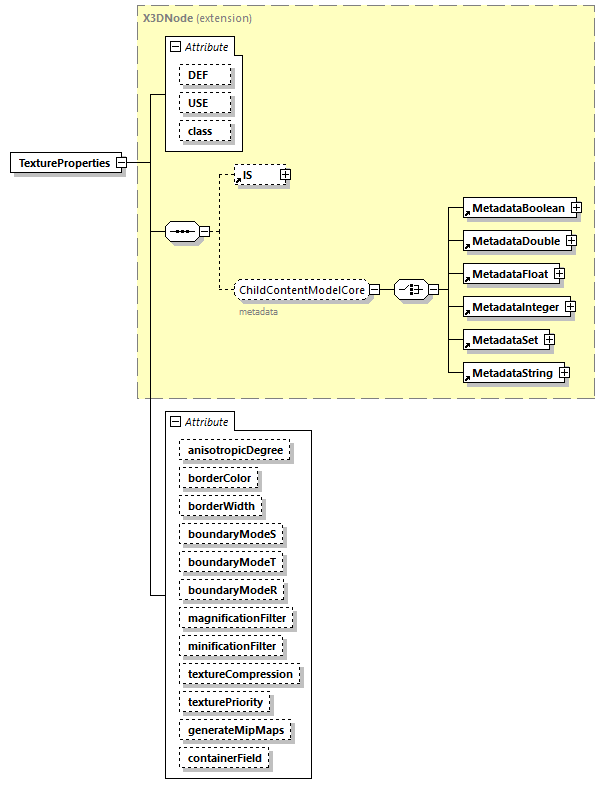

TextureProperties

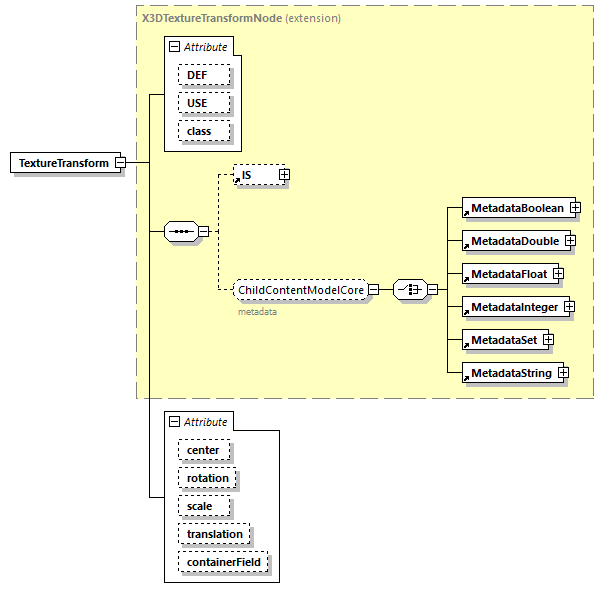

TextureTransform
TextureTransform3D
TextureTransformMatrix3D
TimeSensor
TimeTrigger
ToneMappedVolumeStyle

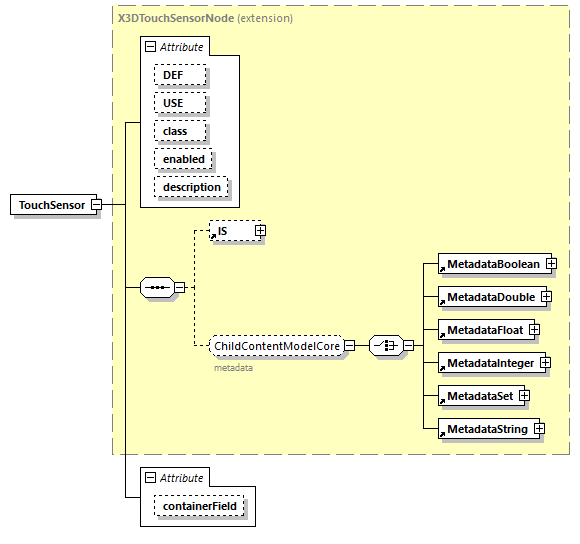

TouchSensor
Transform
TransformSensor
TransmitterPdu

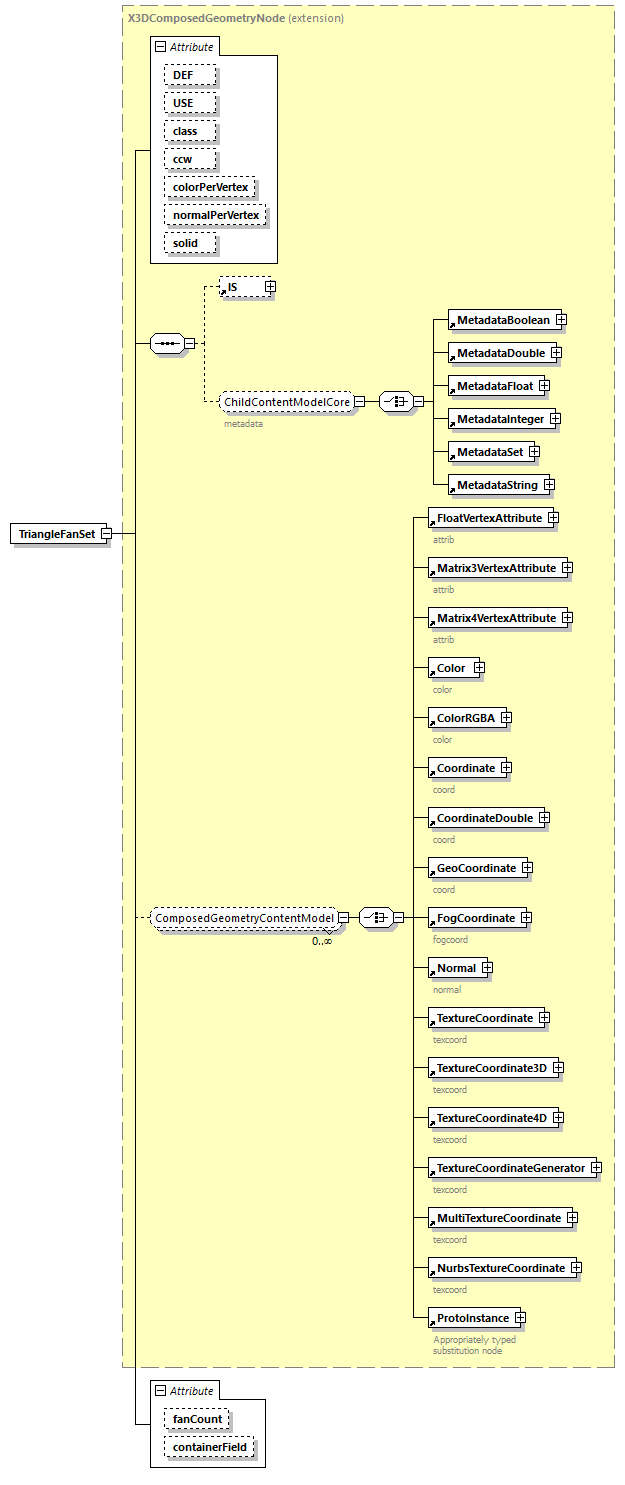

TriangleFanSet
TriangleSet

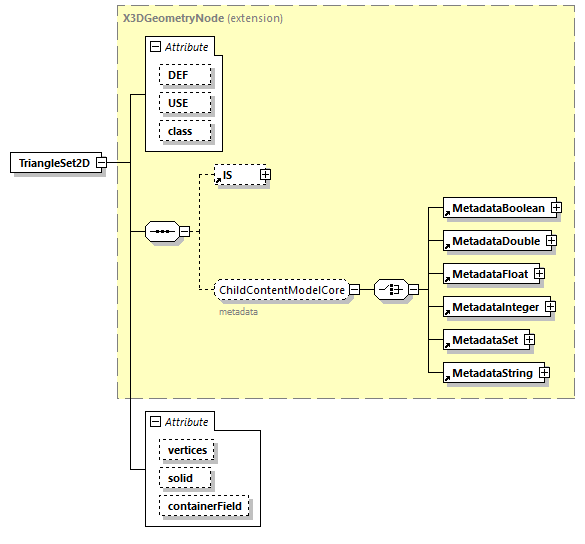

TriangleSet2D

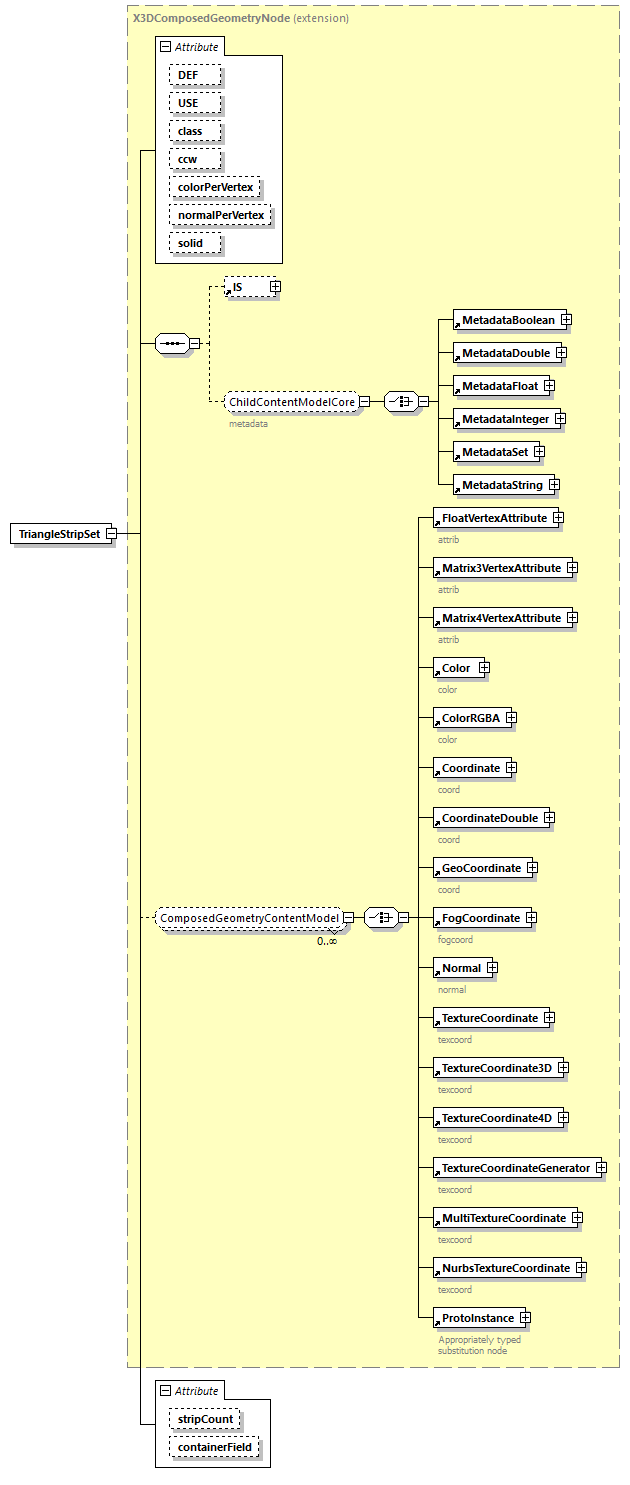

TriangleStripSet

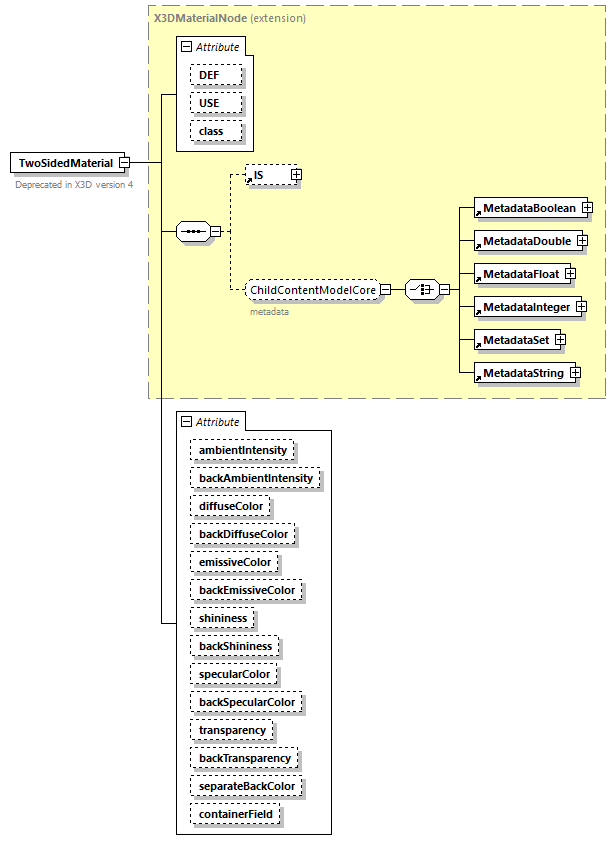

TwoSidedMaterial
unit
UniversalJoint

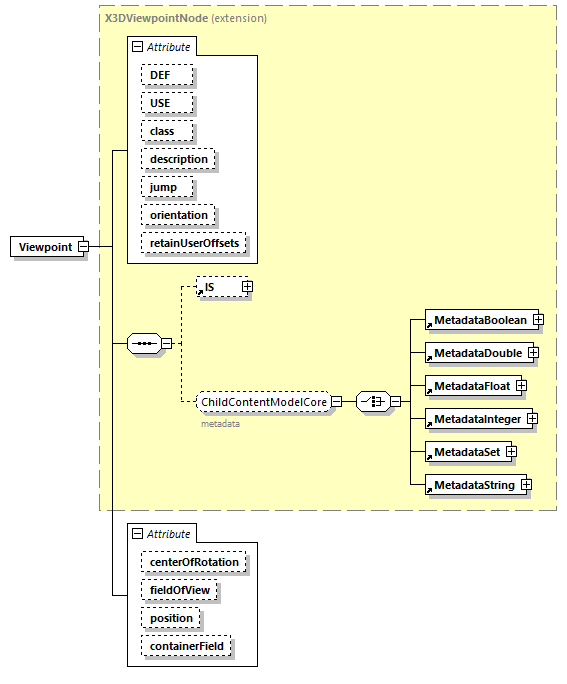

Viewpoint
ViewpointGroup
Viewport
VisibilitySensor
VolumeData
VolumeEmitter
VolumePickSensor
WindPhysicsModel
WorldInfo
X3D


schema location:  https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPublic.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com

Elements  Simple types
XvlShell  XvlShell.shellTypes


schema location:  https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPrivate.xsd
attributeFormDefault:  unqualified
elementFormDefault:  qualified
targetNamespace:  https://www.design2machine.com



schema location:  C:\Program Files\Altova\Common2020\Schemas\xmldsig\files\xmldsig-core-schema.xsd
attributeFormDefault:
elementFormDefault:  qualified
targetNamespace:  http://www.w3.org/2000/09/xmldsig#

Elements  Complex types  Simple types
CanonicalizationMethod  CanonicalizationMethodType  CryptoBinary
DigestMethod  DigestMethodType  DigestValueType

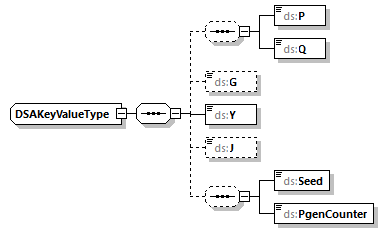

DigestValue  DSAKeyValueType  HMACOutputLengthType
DSAKeyValue  KeyInfoType

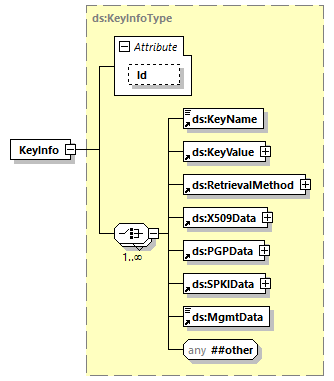

KeyInfo  KeyValueType
KeyName  ManifestType
KeyValue  ObjectType

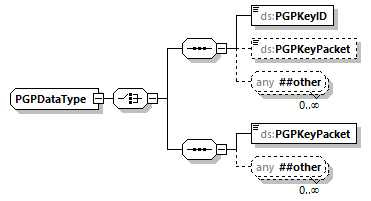

Manifest  PGPDataType
MgmtData  ReferenceType
Object  RetrievalMethodType

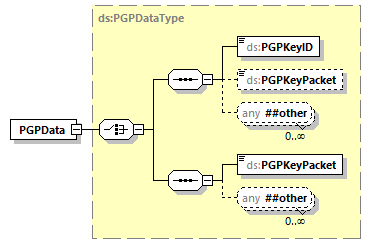

PGPData  RSAKeyValueType
Reference  SignatureMethodType

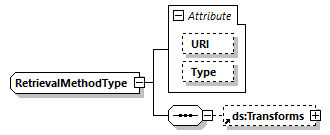

RetrievalMethod  SignaturePropertiesType

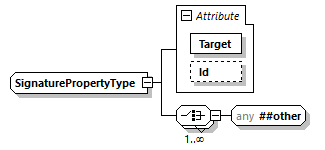

RSAKeyValue  SignaturePropertyType
Signature  SignatureType

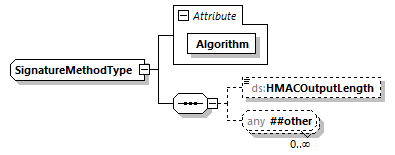

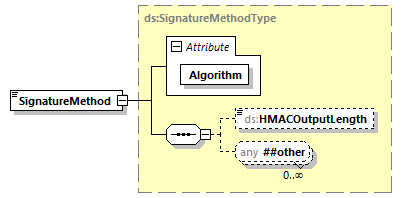

SignatureMethod  SignatureValueType

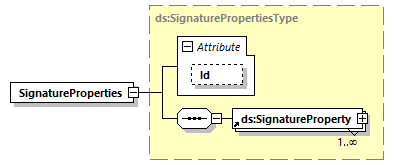

SignatureProperties  SignedInfoType
SignatureProperty  SPKIDataType
SignatureValue  TransformsType
SignedInfo  TransformType
SPKIData  X509DataType
Transform  X509IssuerSerialType
Transforms
X509Data


element BTLx
diagram BTLx_2_2_0_p1.png
namespace https://www.design2machine.com
properties
content complex
children FileHistory Project
attributes
Name  Type  Use  Default  Fixed  Annotation
Version  derived by: xs:string  required
documentation
e.g. 1.0 or 1.0.2
Language  xs:string
documentation
language shortcut in compliance with ISO 639-1
annotation
documentation
Root element for BTLx data
source <xs:element name="BTLx">
  <xs:annotation>
    <xs:documentation>Root element for BTLx data</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="FileHistory" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>
            <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Project" type="ProjectType"/>
    </xs:sequence>
    <xs:attribute name="Version" use="required">
      <xs:annotation>
        <xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>
      </xs:annotation>
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="2.2.0"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="Language" type="xs:string">
      <xs:annotation>
        <xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

attribute BTLx/@Version
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration 2.2.0
annotation
documentation
e.g. 1.0 or 1.0.2
source <xs:attribute name="Version" use="required">
  <xs:annotation>
    <xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="2.2.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute BTLx/@Language
type xs:string
annotation
documentation
language shortcut in compliance with ISO 639-1
source <xs:attribute name="Language" type="xs:string">
  <xs:annotation>
    <xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>
  </xs:annotation>
</xs:attribute>

element BTLx/FileHistory
diagram BTLx_2_2_0_p2.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children InitialExportProgram EditingProgram
source <xs:element name="FileHistory" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>
      <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element BTLx/FileHistory/InitialExportProgram
diagram BTLx_2_2_0_p3.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

element BTLx/FileHistory/EditingProgram
diagram BTLx_2_2_0_p4.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

element BTLx/Project
diagram BTLx_2_2_0_p5.png
namespace https://www.design2machine.com
type ProjectType
properties
content complex
children UserAttributes Rawparts Parts Composites
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Number  xs:string
GUID  GUIDType
Section  xs:string
ListName  xs:string
Customer  xs:string
Architect  xs:string
Editor  xs:string
DeliveryDate  xs:date
documentation
in compliance with ISO 8601
SourceFile  xs:string
ProcessingQuality  ProcessingQualityType    automatic
Recess  RecessType    automatic
Comment  xs:string
source <xs:element name="Project" type="ProjectType"/>

complexType AlignmentType
diagram BTLx_2_2_0_p6.png
namespace https://www.design2machine.com
used by
element PartType/Alignment
attributes
Name  Type  Use  Default  Fixed  Annotation
Location  LocationType  required
Endtype  EndType  required
annotation
documentation
Definition of an alignment in a wall
source <xs:complexType name="AlignmentType">
  <xs:annotation>
    <xs:documentation>Definition of an alignment in a wall</xs:documentation>
  </xs:annotation>
  <xs:attribute name="Location" type="LocationType" use="required"/>
  <xs:attribute name="Endtype" type="EndType" use="required"/>
</xs:complexType>

attribute AlignmentType/@Location
type LocationType
properties
use required
facets
Kind Value Annotation
enumeration bottomRail
enumeration topRail
enumeration bottomRailAngled
enumeration topRailAngled
enumeration horizontalComponent
enumeration verticalComponent
enumeration angledComponent
source <xs:attribute name="Location" type="LocationType" use="required"/>

attribute AlignmentType/@Endtype
type EndType
properties
use required
facets
Kind Value Annotation
enumeration rectangularCut
enumeration angledCut
enumeration doubleCut
source <xs:attribute name="Endtype" type="EndType" use="required"/>

complexType ArcBaseType
diagram BTLx_2_2_0_p7.png
namespace https://www.design2machine.com
type extension of LineBaseType
properties
base LineBaseType
children EndPoint PointOnArc
used by
elements SimpleContourBaseType/Arc SimpleContourBase1Type/Arc SimpleContourBase2Type/Arc
annotation
documentation
Definition of a contour arc
source <xs:complexType name="ArcBaseType">
  <xs:annotation>
    <xs:documentation>Definition of a contour arc</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LineBaseType">
      <xs:sequence>
        <xs:element name="PointOnArc" type="CoordinateType"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ArcBaseType/PointOnArc
diagram BTLx_2_2_0_p8.png
namespace https://www.design2machine.com
type CoordinateType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
source <xs:element name="PointOnArc" type="CoordinateType"/>

complexType ArcType
diagram BTLx_2_2_0_p9.png
namespace https://www.design2machine.com
type extension of LineBaseType
properties
base LineBaseType
children EndPoint PointOnArc
used by
elements SimpleContourType/Arc SimpleContour1Type/Arc SimpleContourIncType/Arc FreeContourType/Contour/Arc FreeContourType/DualContour/PrincipalContour/Arc FreeContourType/Apertures/Aperture/Contour/Arc FreeContourType/Apertures/Aperture/DualContour/PrincipalContour/Arc SawContourType/Contour/Arc SawContourType/DualContour/PrincipalContour/Arc MillContourType/Contour/Arc MillContourType/DualContour/PrincipalContour/Arc MillContourType/Apertures/Aperture/Contour/Arc MillContourType/Apertures/Aperture/DualContour/PrincipalContour/Arc NailContourType/Contour/Arc CrampContourType/Contour/Arc ScrewContourType/Contour/Arc
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType
annotation
documentation
Definition of a contour arc
source <xs:complexType name="ArcType">
  <xs:annotation>
    <xs:documentation>Definition of a contour arc</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="LineBaseType">
      <xs:sequence>
        <xs:element name="PointOnArc" type="CoordinateType"/>
      </xs:sequence>
      <xs:attribute name="Process" type="BooleanType"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

attribute ArcType/@Process
type BooleanType
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Process" type="BooleanType"/>

element ArcType/PointOnArc
diagram BTLx_2_2_0_p10.png
namespace https://www.design2machine.com
type CoordinateType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
source <xs:element name="PointOnArc" type="CoordinateType"/>

complexType BirdsMouthType
diagram BTLx_2_2_0_p11.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Orientation StartX StartY StartDepth Angle Inclination1 Inclination2 Depth Width WidthCounterPartLimited WidthCounterPart HeightCounterPartLimited HeightCounterPart FaceLimitedFront FaceLimitedBack LeadAngleParallel LeadAngle LeadInclinationParallel LeadInclination RafterNailHole
used by
element ProcessingsType/BirdsMouth
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Definition of a birds mouth
source <xs:complexType name="BirdsMouthType">
  <xs:annotation>
    <xs:documentation>Definition of a birds mouth</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingType">
      <xs:sequence>
        <xs:element name="Orientation" type="OrientationType"/>
        <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>
        <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>
        <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>
        <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>
        <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>
        <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>
        <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>
        <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>
        <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>
        <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>
        <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element BirdsMouthType/Orientation
diagram BTLx_2_2_0_p12.png
namespace https://www.design2machine.com
type OrientationType
properties
content simple
facets
Kind Value Annotation
enumeration start
enumeration end
source <xs:element name="Orientation" type="OrientationType"/>

element BirdsMouthType/StartX
diagram BTLx_2_2_0_p13.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartY
diagram BTLx_2_2_0_p14.png
namespace https://www.design2machine.com
type WidthNType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -50000.0
maxInclusive 50000.0
source <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartDepth
diagram BTLx_2_2_0_p15.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Angle
diagram BTLx_2_2_0_p16.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/Inclination1
diagram BTLx_2_2_0_p17.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 45.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

element BirdsMouthType/Inclination2
diagram BTLx_2_2_0_p18.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 135.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

element BirdsMouthType/Depth
diagram BTLx_2_2_0_p19.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Width
diagram BTLx_2_2_0_p20.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

element BirdsMouthType/WidthCounterPartLimited
diagram BTLx_2_2_0_p21.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/WidthCounterPart
diagram BTLx_2_2_0_p22.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/HeightCounterPartLimited
diagram BTLx_2_2_0_p23.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/HeightCounterPart
diagram BTLx_2_2_0_p24.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/FaceLimitedFront
diagram BTLx_2_2_0_p25.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/FaceLimitedBack
diagram BTLx_2_2_0_p26.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/LeadAngleParallel
diagram BTLx_2_2_0_p27.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadAngle
diagram BTLx_2_2_0_p28.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/LeadInclinationParallel
diagram BTLx_2_2_0_p29.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadInclination
diagram BTLx_2_2_0_p30.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/RafterNailHole
diagram BTLx_2_2_0_p31.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

complexType CamberType
diagram BTLx_2_2_0_p32.png
namespace https://www.design2machine.com
used by
elements PartType/Camber RawPartType/Camber
attributes
Name  Type  Use  Default  Fixed  Annotation
ReferencePlaneID  derived by: xs:unsignedInt  required
StartingPoint  xs:double  required
EndPoint  xs:double  required
CamberPoint  xs:double  required
Camber  xs:double  required
annotation
documentation
Definition of a camber
source <xs:complexType name="CamberType">
  <xs:annotation>
    <xs:documentation>Definition of a camber</xs:documentation>
  </xs:annotation>
  <xs:attribute name="ReferencePlaneID" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:unsignedInt">
        <xs:minInclusive value="1"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="StartingPoint" type="xs:double" use="required"/>
  <xs:attribute name="EndPoint" type="xs:double" use="required"/>
  <xs:attribute name="CamberPoint" type="xs:double" use="required"/>
  <xs:attribute name="Camber" type="xs:double" use="required"/>
</xs:complexType>

attribute CamberType/@ReferencePlaneID
type restriction of xs:unsignedInt
properties
use required
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="ReferencePlaneID" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedInt">
      <xs:minInclusive value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute CamberType/@StartingPoint
type xs:double
properties
use required
source <xs:attribute name="StartingPoint" type="xs:double" use="required"/>

attribute CamberType/@EndPoint
type xs:double
properties
use required
source <xs:attribute name="EndPoint" type="xs:double" use="required"/>

attribute CamberType/@CamberPoint
type xs:double
properties
use required
source <xs:attribute name="CamberPoint" type="xs:double" use="required"/>

attribute CamberType/@Camber
type xs:double
properties
use required
source <xs:attribute name="Camber" type="xs:double" use="required"/>

complexType ChamferType
diagram BTLx_2_2_0_p33.png
namespace https://www.design2machine.com
type extension of ProcessingBaseType
properties
base ProcessingBaseType
children UserAttributes StartX StartLimited EndLimited Length Depth ChamferEdge12 ChamferEdge23 ChamferEdge34 ChamferEdge41 ChamferExit
used by
element ProcessingsType/Chamfer
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
annotation
documentation
Definition of a chamfer
source <xs:complexType name="ChamferType">
  <xs:annotation>
    <xs:documentation>Definition of a chamfer</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="ProcessingBaseType">
      <xs:sequence>
        <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>
        <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>
        <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>
        <xs:element name="Depth" default="1.0" minOccurs="0">
          <xs:simpleType>
            <xs:restriction base="xs:double">
              <xs:minInclusive value="0.0"/>
              <xs:maxInclusive value="100.0"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:element>
        <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>
        <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element ChamferType/StartX
diagram BTLx_2_2_0_p34.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element ChamferType/StartLimited
diagram BTLx_2_2_0_p35.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/EndLimited
diagram BTLx_2_2_0_p36.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/Length
diagram BTLx_2_2_0_p37.png
namespace https://www.design2machine.com
type LengthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100000.0
source <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

element ChamferType/Depth
diagram BTLx_2_2_0_p38.png
namespace https://www.design2machine.com
type restriction of xs:double
properties
minOcc 0
maxOcc 1
content simple
default 1.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100.0
source <xs:element name="Depth" default="1.0" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="0.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element ChamferType/ChamferEdge12
diagram BTLx_2_2_0_p39.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge23
diagram BTLx_2_2_0_p40.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge34
diagram BTLx_2_2_0_p41.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge41
diagram BTLx_2_2_0_p42.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferExit
diagram BTLx_2_2_0_p43.png
namespace https://www.design2machine.com
type ChamferExitType
properties
minOcc 0
maxOcc 1
content simple
default orthogonal
facets
Kind Value Annotation
enumeration orthogonal
enumeration angular
enumeration round
source <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

complexType ColourType
diagram BTLx_2_2_0_p44.png
namespace https://www.design2machine.com
used by
element ComponentType/Colour
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
annotation
documentation
Definition of a colour (red, green, blue, transparency)
source <xs:complexType name="ColourType">
  <xs:annotation>
    <xs:documentation>Definition of a colour (red, green, blue, transparency)</xs:documentation>
  </xs:annotation>
  <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>
  <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>
</xs:complexType>

attribute ColourType/@Red
type xs:unsignedByte
properties
use required
source <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Green
type xs:unsignedByte
properties
use required
source <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Blue
type xs:unsignedByte
properties
use required
source <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Transparency
type xs:unsignedByte
properties
use required
source <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>

complexType ComponentType
diagram BTLx_2_2_0_p45.png
namespace https://www.design2machine.com
properties
abstract true
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape CenterOfGravity
used by
complexTypes CompositeModuleType PartType RawPartType
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
ProcessingQuality  ProcessingQualityType
Recess  RecessType
ElementNumber  xs:string
Layer  xs:int
ModuleNumber  xs:string
Comment  xs:string
annotation
documentation
Definition of a component
source <xs:complexType name="ComponentType" abstract="true">
  <xs:annotation>
    <xs:documentation>Definition of a component</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Transformations" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:annotation>
            <xs:documentation>there have to be "Count" Transformations</xs:documentation>
          </xs:annotation>
          <xs:element name="Transformation" type="ReferenceType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Outlines" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="3">
          <xs:element name="Outline">
            <xs:complexType>
              <xs:complexContent>
                <xs:extension base="OutlineType"/>
              </xs:complexContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="UserAttributes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:element name="UserAttribute" type="UserAttributeType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Colour" type="ColourType" minOccurs="0"/>
    <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

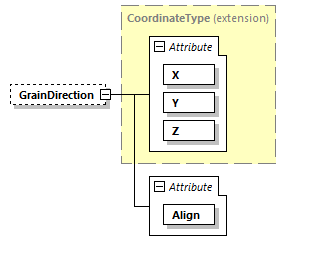

    <xs:element name="GrainDirection" minOccurs="0">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="CoordinateType">
            <xs:attribute name="Align" type="BooleanType" use="required"/>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="ReferenceSide" minOccurs="0">
      <xs:complexType>
        <xs:attribute name="Side" type="RefSideType" use="required"/>
        <xs:attribute name="Align" type="BooleanType" use="required"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>
    <xs:element name="UserReferencePlanes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="unbounded">
          <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Processings" minOccurs="0">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="ProcessingsType">
            <xs:sequence minOccurs="0" maxOccurs="unbounded">
              <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>
            </xs:sequence>
          </xs:extension>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="Shape" type="ShapeType" minOccurs="0"/>
    <xs:element name="CenterOfGravity" type="CoordinateType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>relative to the origin of the component</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="Count" default="1">
    <xs:simpleType>
      <xs:restriction base="xs:int">
        <xs:minInclusive value="1"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="Length" type="xs:double" use="required"/>
  <xs:attribute name="Width" type="xs:double" use="required"/>
  <xs:attribute name="Height" type="xs:double" use="required"/>
  <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>
  <xs:attribute name="AssemblyNumber" type="xs:string"/>
  <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>
  <xs:attribute name="Designation" type="xs:string"/>
  <xs:attribute name="Annotation" type="xs:string"/>
  <xs:attribute name="Storey" type="xs:string"/>
  <xs:attribute name="StoreyType" type="StoreyType"/>
  <xs:attribute name="Group" type="xs:string"/>
  <xs:attribute name="Package" type="xs:string"/>
  <xs:attribute name="Material" type="xs:string"/>
  <xs:attribute name="TimberGrade" type="xs:string"/>
  <xs:attribute name="QualityGrade" type="xs:string"/>
  <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>
  <xs:attribute name="StartOffset" type="xs:double" use="optional"/>
  <xs:attribute name="EndOffset" type="xs:double" use="optional"/>
  <xs:attribute name="Weight" type="xs:double"/>
  <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>
  <xs:attribute name="Recess" type="RecessType"/>
  <xs:attribute name="ElementNumber" type="xs:string"/>
  <xs:attribute name="Layer" type="xs:int"/>
  <xs:attribute name="ModuleNumber" type="xs:string"/>
  <xs:attribute name="Comment" type="xs:string"/>
</xs:complexType>

attribute ComponentType/@Count
type restriction of xs:int
properties
default 1
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="Count" default="1">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="1"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute ComponentType/@Length
type xs:double
properties
use required
source <xs:attribute name="Length" type="xs:double" use="required"/>

attribute ComponentType/@Width
type xs:double
properties
use required
source <xs:attribute name="Width" type="xs:double" use="required"/>

attribute ComponentType/@Height
type xs:double
properties
use required
source <xs:attribute name="Height" type="xs:double" use="required"/>

attribute ComponentType/@SingleMemberNumber
type xs:unsignedInt
source <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

attribute ComponentType/@AssemblyNumber
type xs:string
source <xs:attribute name="AssemblyNumber" type="xs:string"/>

attribute ComponentType/@OrderNumber
type xs:unsignedInt
source <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

attribute ComponentType/@Designation
type xs:string
source <xs:attribute name="Designation" type="xs:string"/>

attribute ComponentType/@Annotation
type xs:string
source <xs:attribute name="Annotation" type="xs:string"/>

attribute ComponentType/@Storey
type xs:string
source <xs:attribute name="Storey" type="xs:string"/>

attribute ComponentType/@StoreyType
type StoreyType
facets
Kind Value Annotation
enumeration
enumeration ceiling
enumeration roof
enumeration wall
source <xs:attribute name="StoreyType" type="StoreyType"/>

attribute ComponentType/@Group
type xs:string
source <xs:attribute name="Group" type="xs:string"/>

attribute ComponentType/@Package
type xs:string
source <xs:attribute name="Package" type="xs:string"/>

attribute ComponentType/@Material
type xs:string
source <xs:attribute name="Material" type="xs:string"/>

attribute ComponentType/@TimberGrade
type xs:string
source <xs:attribute name="TimberGrade" type="xs:string"/>

attribute ComponentType/@QualityGrade
type xs:string
source <xs:attribute name="QualityGrade" type="xs:string"/>

attribute ComponentType/@PlaningLength
type xs:double
properties
use optional
source <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

attribute ComponentType/@StartOffset
type xs:double
properties
use optional
source <xs:attribute name="StartOffset" type="xs:double" use="optional"/>

attribute ComponentType/@EndOffset
type xs:double
properties
use optional
source <xs:attribute name="EndOffset" type="xs:double" use="optional"/>

attribute ComponentType/@Weight
type xs:double
source <xs:attribute name="Weight" type="xs:double"/>

attribute ComponentType/@ProcessingQuality
type ProcessingQualityType
facets
Kind Value Annotation
enumeration automatic
enumeration visible
enumeration fast
source <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

attribute ComponentType/@Recess
type RecessType
facets
Kind Value Annotation
enumeration automatic
enumeration manual
source <xs:attribute name="Recess" type="RecessType"/>

attribute ComponentType/@ElementNumber
type xs:string
source <xs:attribute name="ElementNumber" type="xs:string"/>

attribute ComponentType/@Layer
type xs:int
source <xs:attribute name="Layer" type="xs:int"/>

attribute ComponentType/@ModuleNumber
type xs:string
source <xs:attribute name="ModuleNumber" type="xs:string"/>

attribute ComponentType/@Comment
type xs:string
source <xs:attribute name="Comment" type="xs:string"/>

element ComponentType/Transformations
diagram BTLx_2_2_0_p46.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Transformation
source <xs:element name="Transformations" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>there have to be "Count" Transformations</xs:documentation>
      </xs:annotation>
      <xs:element name="Transformation" type="ReferenceType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/Transformations/Transformation
diagram BTLx_2_2_0_p47.png
namespace https://www.design2machine.com
type ReferenceType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
GUID  GUIDType  required
source <xs:element name="Transformation" type="ReferenceType"/>

element ComponentType/Outlines
diagram BTLx_2_2_0_p48.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Outline
source <xs:element name="Outlines" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="3">
      <xs:element name="Outline">
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="OutlineType"/>
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/Outlines/Outline
diagram BTLx_2_2_0_p49.png
namespace https://www.design2machine.com
type extension of OutlineType
properties
content complex
children Contour DualContour Silhouette Apertures
attributes
Name  Type  Use  Default  Fixed  Annotation
ReferencePlaneID  derived by: xs:unsignedInt  required
Process  BooleanType    no
source <xs:element name="Outline">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="OutlineType"/>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ComponentType/UserAttributes
diagram BTLx_2_2_0_p50.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserAttribute
source <xs:element name="UserAttributes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="UserAttribute" type="UserAttributeType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/UserAttributes/UserAttribute
diagram BTLx_2_2_0_p51.png
namespace https://www.design2machine.com
type UserAttributeType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Value  xs:string  required
Type  UAttributeType    string
source <xs:element name="UserAttribute" type="UserAttributeType"/>

element ComponentType/Colour
diagram BTLx_2_2_0_p52.png
namespace https://www.design2machine.com
type ColourType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
source <xs:element name="Colour" type="ColourType" minOccurs="0"/>

element ComponentType/PartOffset
diagram BTLx_2_2_0_p53.png
namespace https://www.design2machine.com
type PartOffsetType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FlushSide  derived by: xs:byte  required
OffsetSide1  xs:double    0.0
OffsetSide2  xs:double    0.0
OffsetSide3  xs:double    0.0
OffsetSide4  xs:double    0.0
source <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

element ComponentType/GrainDirection
diagram BTLx_2_2_0_p54.png
namespace https://www.design2machine.com
type extension of CoordinateType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
Align  BooleanType  required
source <xs:element name="GrainDirection" minOccurs="0">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="CoordinateType">
        <xs:attribute name="Align" type="BooleanType" use="required"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

attribute ComponentType/GrainDirection/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/ReferenceSide
diagram BTLx_2_2_0_p55.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Side  RefSideType  required
Align  BooleanType  required
source <xs:element name="ReferenceSide" minOccurs="0">
  <xs:complexType>
    <xs:attribute name="Side" type="RefSideType" use="required"/>
    <xs:attribute name="Align" type="BooleanType" use="required"/>
  </xs:complexType>
</xs:element>

attribute ComponentType/ReferenceSide/@Side
type RefSideType
properties
use required
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:attribute name="Side" type="RefSideType" use="required"/>

attribute ComponentType/ReferenceSide/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/MaterialClass
diagram BTLx_2_2_0_p56.png
namespace https://www.design2machine.com
type MaterialClassType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Group  MaterialGroupType  required
Specification  xs:string
source <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

element ComponentType/UserReferencePlanes
diagram BTLx_2_2_0_p57.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserReferencePlane
source <xs:element name="UserReferencePlanes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ComponentType/UserReferencePlanes/UserReferencePlane
diagram BTLx_2_2_0_p58.png
namespace https://www.design2machine.com
type UserReferencePlaneType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  derived by: xs:unsignedInt  required
source <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

element ComponentType/Processings
diagram BTLx_2_2_0_p59.png
namespace https://www.design2machine.com
type extension of ProcessingsType
properties
minOcc 0
maxOcc 1
content complex
children JackRafterCut LongitudinalCut DoubleCut RidgeValleyCut SawCut Slot BirdsMouth HipValleyRafterNotch Lap LogHouseHalfLap FrenchRidgeLap Chamfer LogHouseJoint LogHouseFront Pocket Drilling Tenon Mortise House HouseMortise DovetailTenon DovetailMortise JapaneseTenon JapaneseMortise Marking Text SimpleScarf ScarfJoint StepJoint StepJointNotch ProfileFront ProfileCambered RoundArch Planing ProfileHead Sphere TriangleCut TyroleanDovetail Dovetail FreeContour SawContour MillContour NailContour CrampContour ScrewContour PenContour GlueArea PlaningArea PlasterArea InsulationArea LockoutArea FreeSurface Variant ProcessingGroup
source <xs:element name="Processings" minOccurs="0">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="ProcessingsType">
        <xs:sequence minOccurs="0" maxOccurs="unbounded">
          <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element ComponentType/Processings/ProcessingGroup
diagram BTLx_2_2_0_p60.png
namespace https://www.design2machine.com
type ProcessingGroupType
properties
content complex
children UserAttributes Processings
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt  required
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
source <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

element ComponentType/Shape
diagram BTLx_2_2_0_p61.png
namespace https://www.design2machine.com
type ShapeType
properties
minOcc 0
maxOcc 1
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
elements CADFace CollidableShape HAnimHumanoid LinePickSensor PointPickSensor PrimitivePickSensor TransformSensor VolumePickSensor
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
source <xs:element name="Shape" type="ShapeType" minOccurs="0"/>

element ComponentType/CenterOfGravity
diagram BTLx_2_2_0_p62.png
namespace https://www.design2machine.com
type CoordinateType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
annotation
documentation
relative to the origin of the component
source <xs:element name="CenterOfGravity" type="CoordinateType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>relative to the origin of the component</xs:documentation>
  </xs:annotation>
</xs:element>

complexType CompositeElementChargeType
diagram BTLx_2_2_0_p63.png
namespace https://www.design2machine.com
type extension of CompositeElementType
properties
base CompositeElementType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape CenterOfGravity PartRefs ModuleRefs LayerRefs ElementRefs
used by
element ProjectType/Composites/ElementCharges/ElementCharge
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
ProcessingQuality  ProcessingQualityType
Recess  RecessType
ElementNumber  xs:string
Layer  xs:int
ModuleNumber  xs:string
Comment  xs:string
ProductionSequence  derived by: xs:string
annotation
documentation
Definition of a elementcharge
source <xs:complexType name="CompositeElementChargeType">
  <xs:annotation>
    <xs:documentation>Definition of a elementcharge</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="CompositeElementType">
      <xs:sequence>
        <xs:element name="ElementRefs" minOccurs="0">
          <xs:complexType>
            <xs:sequence maxOccurs="unbounded">
              <xs:element name="ElementRef" type="ReferenceType"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

element CompositeElementChargeType/ElementRefs
diagram BTLx_2_2_0_p64.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children ElementRef
source <xs:element name="ElementRefs" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="ElementRef" type="ReferenceType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element CompositeElementChargeType/ElementRefs/ElementRef
diagram BTLx_2_2_0_p65.png
namespace https://www.design2machine.com
type ReferenceType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
GUID  GUIDType  required
source <xs:element name="ElementRef" type="ReferenceType"/>

complexType CompositeElementType
diagram BTLx_2_2_0_p66.png
namespace https://www.design2machine.com
type extension of CompositeLayerType
properties
base CompositeLayerType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape CenterOfGravity PartRefs ModuleRefs LayerRefs
used by
element ProjectType/Composites/Elements/Element
complexType CompositeElementChargeType
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
ProcessingQuality  ProcessingQualityType
Recess  RecessType
ElementNumber  xs:string
Layer  xs:int
ModuleNumber  xs:string
Comment  xs:string
ProductionSequence  derived by: xs:string
annotation
documentation
Definition of a element
- An element must have one layer with number 0.
- An element must have a referenceside.
- Layer numbers must be ascending on the reference side (number greater than 0) and descending on the other side (number less than 0).
source <xs:complexType name="CompositeElementType">
  <xs:annotation>
    <xs:documentation source="test">Definition of a element
- An element must have one layer with number 0.
- An element must have a referenceside.
- Layer numbers must be ascending on the reference side (number greater than 0) and descending on the other side (number less than 0).</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="CompositeLayerType">
      <xs:sequence>
        <xs:element name="LayerRefs" minOccurs="0">
          <xs:complexType>
            <xs:sequence maxOccurs="unbounded">
              <xs:element name="LayerRef" type="ReferenceType"/>
            </xs:sequence>
          </xs:complexType>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="ProductionSequence">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:pattern value="([+-]?\d+(,[+-]?\d+)*)?"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:attribute>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

attribute CompositeElementType/@ProductionSequence
type restriction of xs:string
facets
Kind Value Annotation
pattern ([+-]?\d+(,[+-]?\d+)*)?
source <xs:attribute name="ProductionSequence">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:pattern value="([+-]?\d+(,[+-]?\d+)*)?"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

element CompositeElementType/LayerRefs
diagram BTLx_2_2_0_p67.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children LayerRef
source <xs:element name="LayerRefs" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="LayerRef" type="ReferenceType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element CompositeElementType/LayerRefs/LayerRef
diagram BTLx_2_2_0_p68.png
namespace https://www.design2machine.com
type ReferenceType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
GUID  GUIDType  required
source <xs:element name="LayerRef" type="ReferenceType"/>

complexType CompositeLayerType
diagram BTLx_2_2_0_p69.png
namespace https://www.design2machine.com
type extension of CompositeModuleType
properties
base CompositeModuleType
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape CenterOfGravity PartRefs ModuleRefs
used by
element ProjectType/Composites/Layers/Layer
complexType CompositeElementType
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
