Schema BTLx_2_0_0.xsd


schema location ..\BTLx_2_0_0.xsd
attributeFormDefault
elementFormDefault qualified
targetNamespace https://www.design2machine.com

Elements  Complex types  Simple types
BTLx  AlignmentType  AlignmentHorizontalType
ArcType  AlignmentVerticalType
BaseContourApType  Angle2NType
BaseContourType  Angle2Type

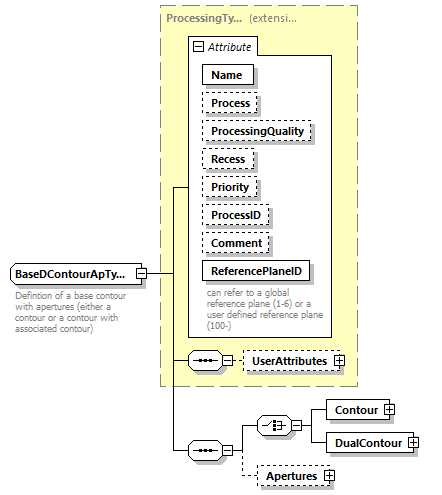

BaseDContourApType  Angle3Type

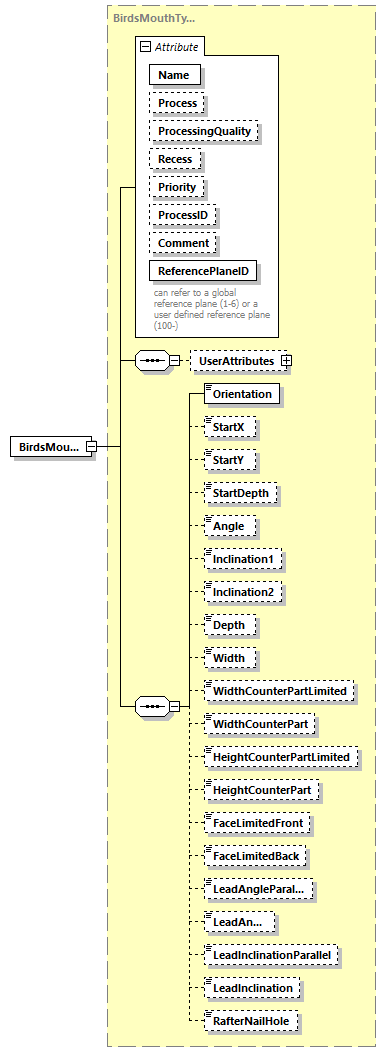

BirdsMouthType  AngleNType
CamberType  AngleType
ChamferType  ArcShapeType
ColourType  BooleanType
ComponentType  ChamferExitType
CompositeElementChargeType  ContourRecessType

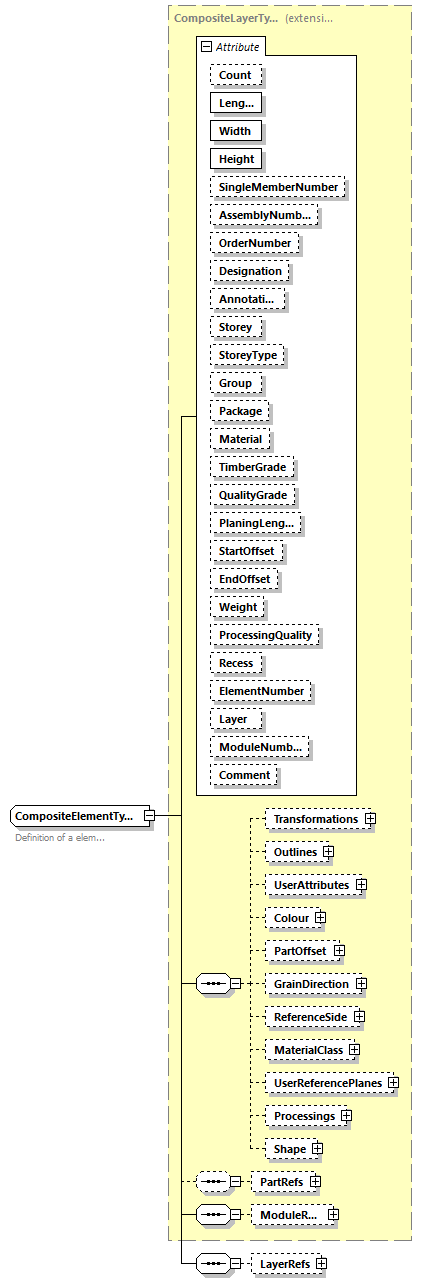

CompositeElementType  ContourType
CompositeLayerType  DiameterType

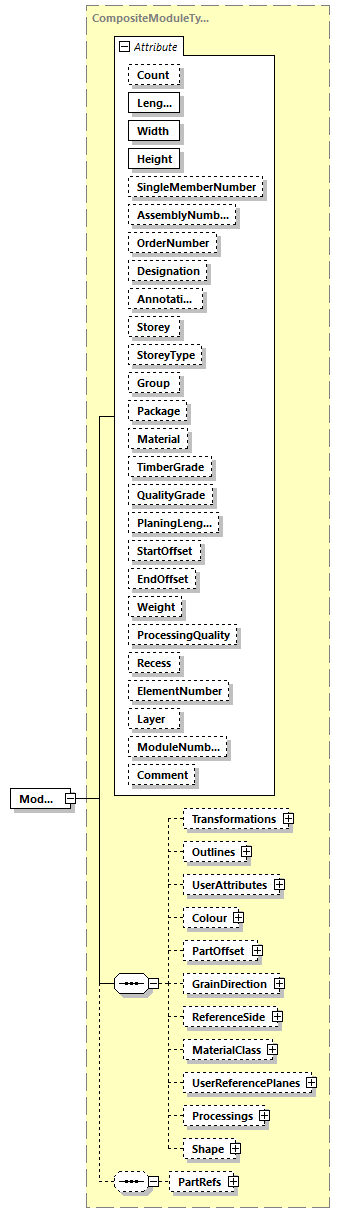

CompositeModuleType  DovetailShapeType
ControlPointType  EdgePositionType

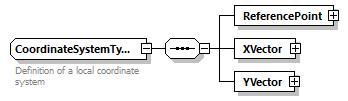

CoordinateSystemType  EndType
CoordinateType  GUIDType
CrampContourType  Inclination2Type

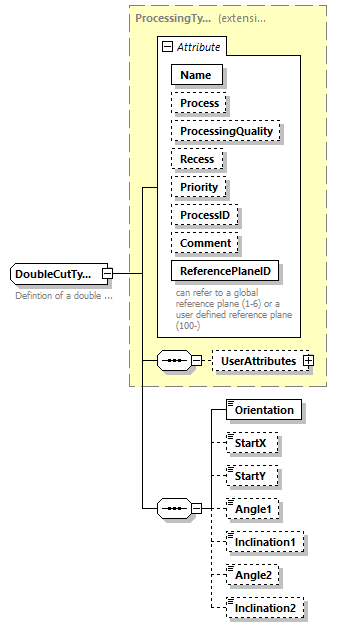

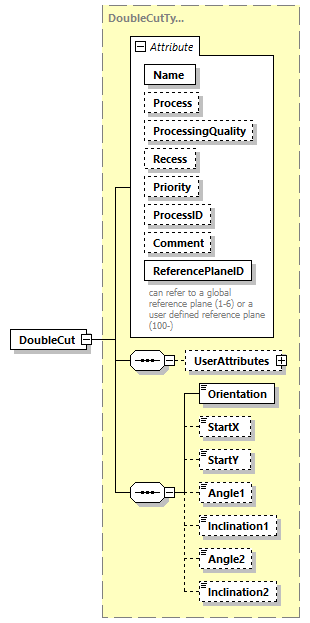

DoubleCutType  Inclination3Type
DovetailMortiseType  InclinationType

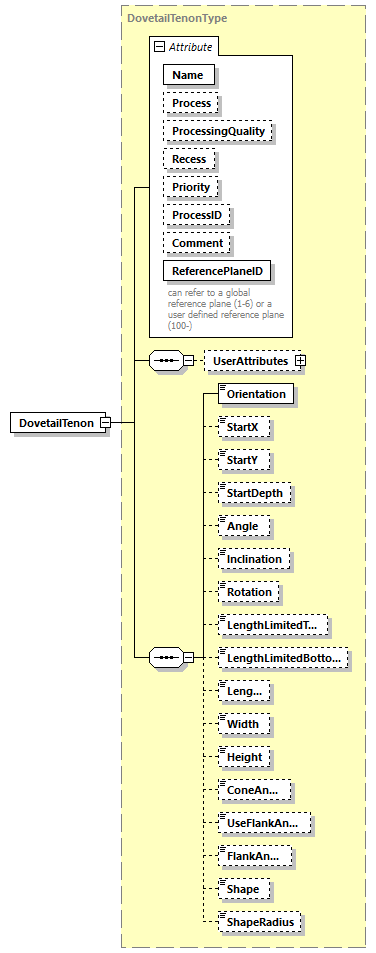

DovetailTenonType  KnotListType

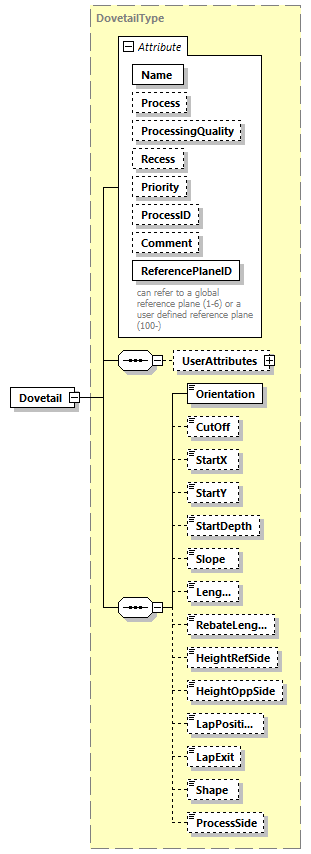

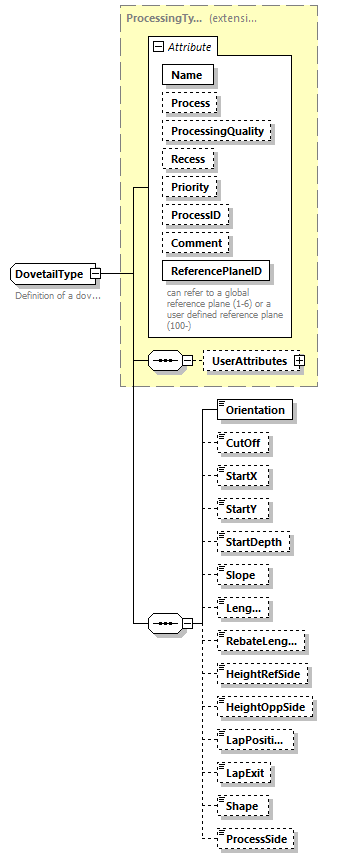

DovetailType  LapExitType

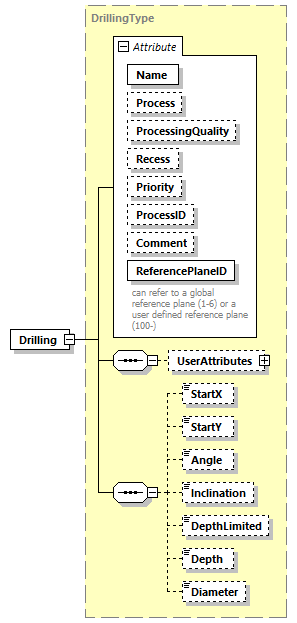

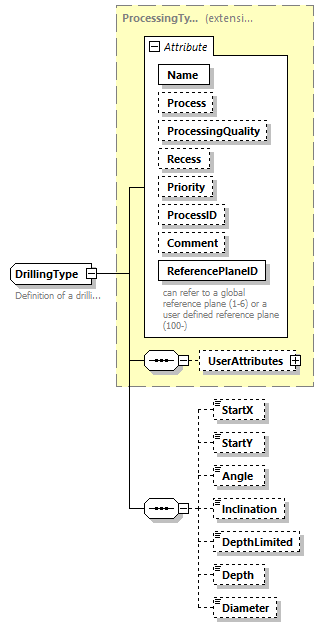

DrillingType  LengthPosType

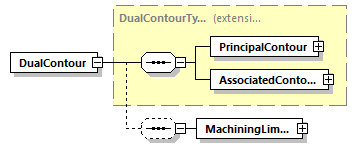

DualContourType  LengthSType

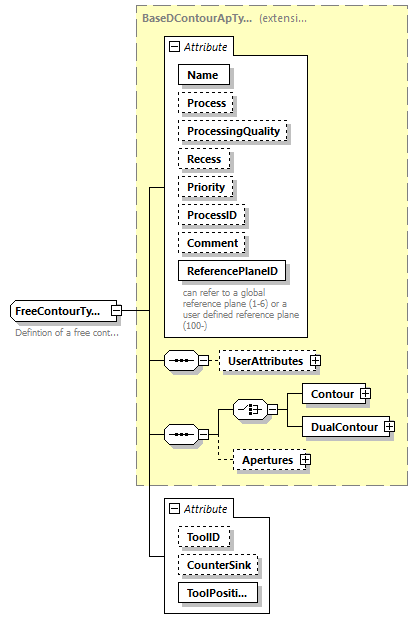

FreeContourType  LengthType

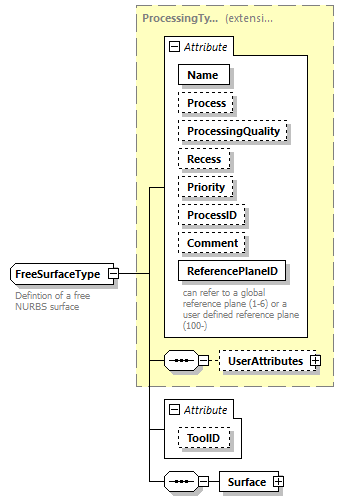

FreeSurfaceType  LimitationTopType

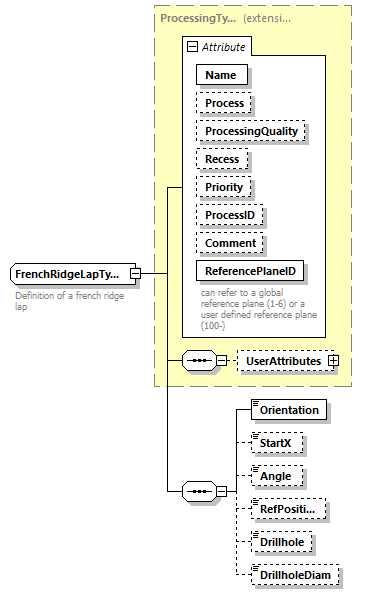

FrenchRidgeLapType  LocationType
GlueAreaType  LogLapPositionType

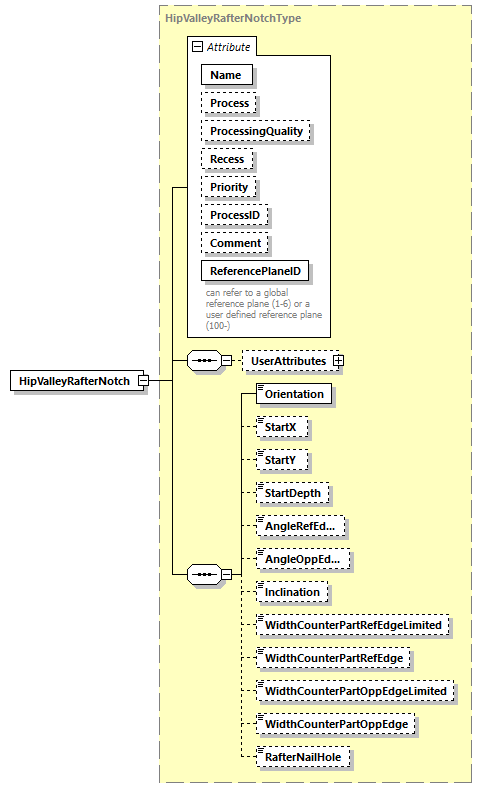

HipValleyRafterNotchType  MarkingStyleType

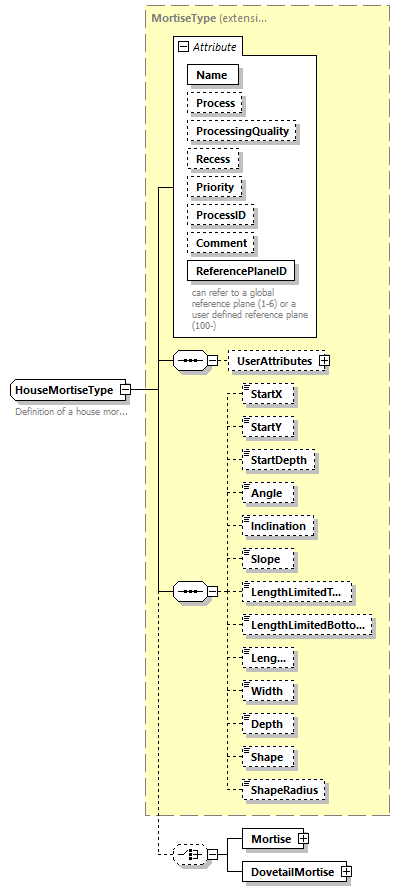

HouseMortiseType  MaterialGroupType
HouseType  OrientationType

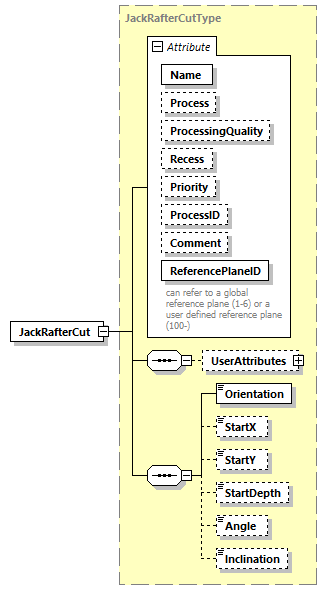

JackRafterCutType  PremillType

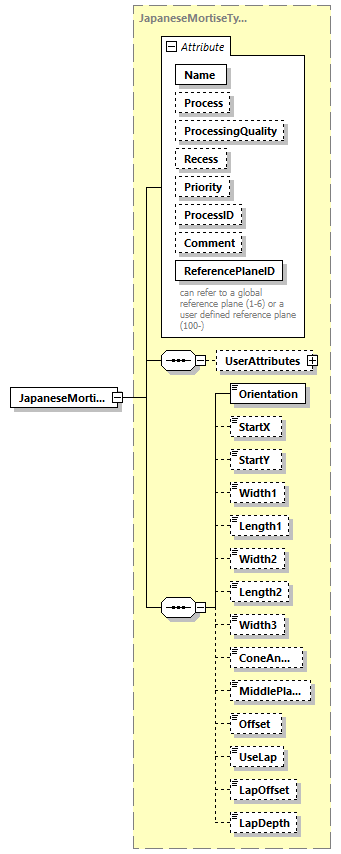

JapaneseMortiseType  ProcessingQualityType

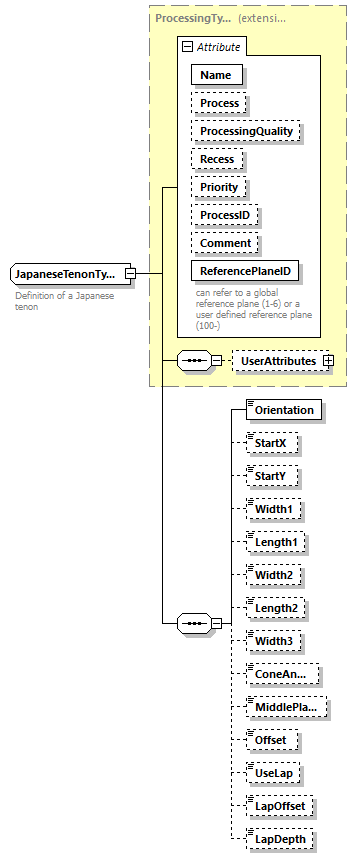

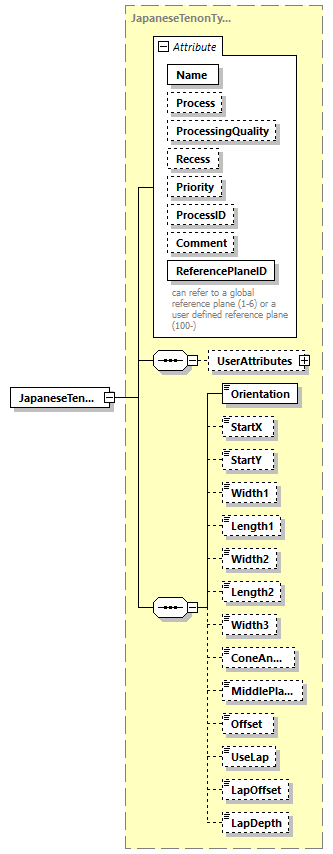

JapaneseTenonType  ProcessSideType
LapType  RecessAdvType

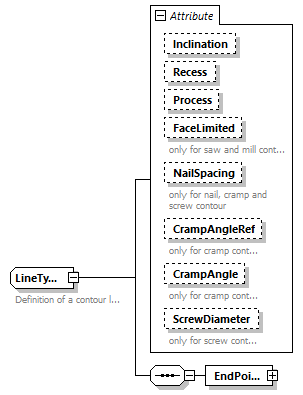

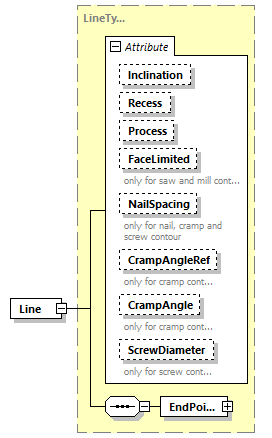

LineType  RecessType

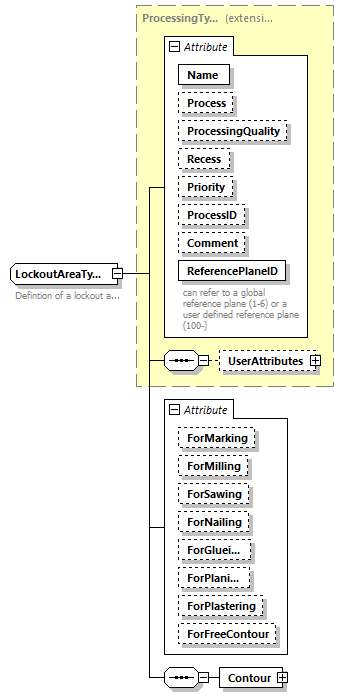

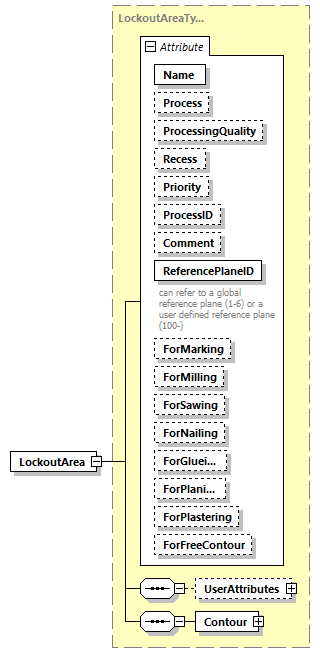

LockoutAreaType  RefSideType
LogHouseFrontType  ScarfShapeType
LogHouseHalfLapType  StepShapeType

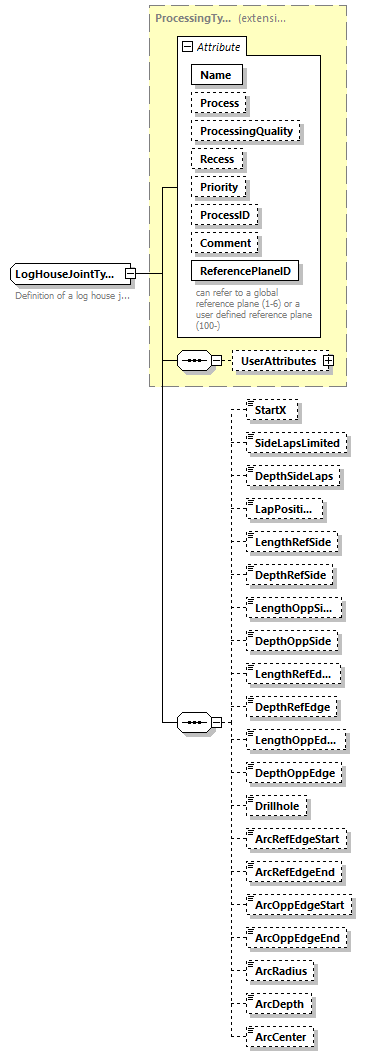

LogHouseJointType  StoreyType
LongitudinalCutType  TenonShapeType

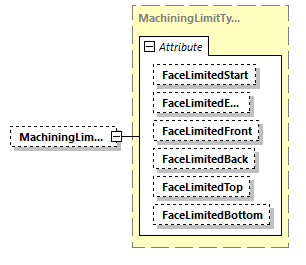

MachiningLimitType  ToolPositionType
MarkingType  TyroleanDovetailShapeType
MaterialClassType  UAttributeType

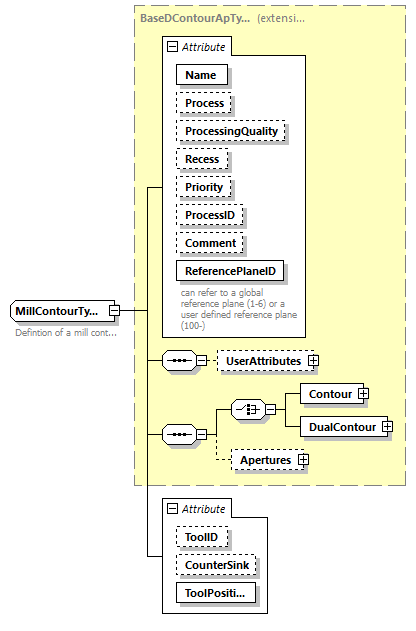

MillContourType  WidthNType
MortiseType  WidthType
NailContourType

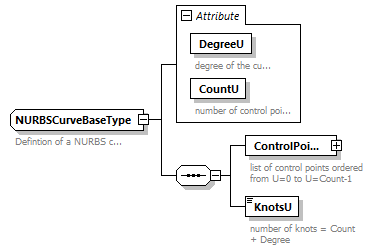

NURBSCurveBaseType

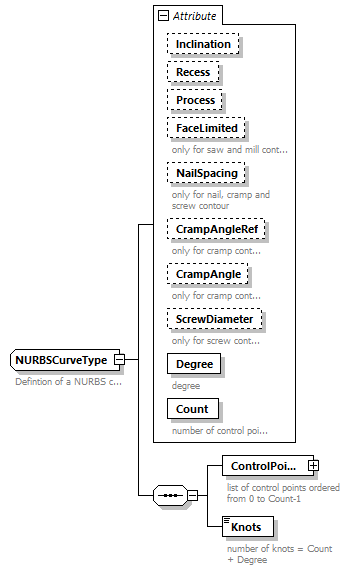

NURBSCurveType
NURBSPatchDerivType
NURBSPatchType
OutlineType
PartOffsetType
PartType

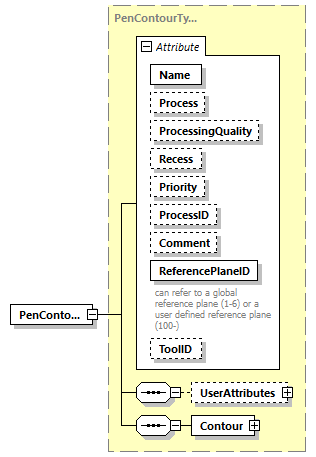

PenContourType
PlaningAreaType
PlaningType

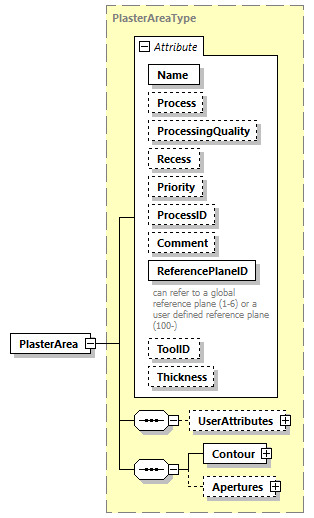

PlasterAreaType

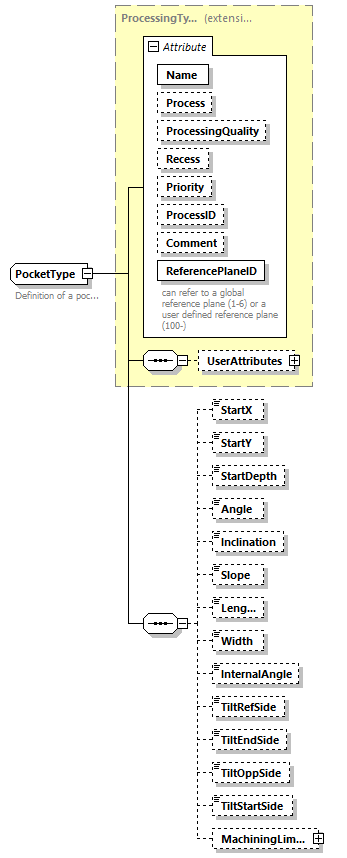

PocketType
PointType

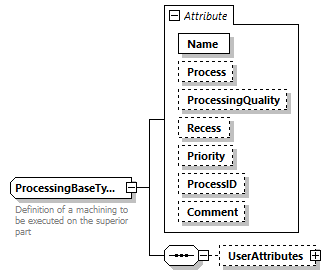

ProcessingBaseType
ProcessingGroupType

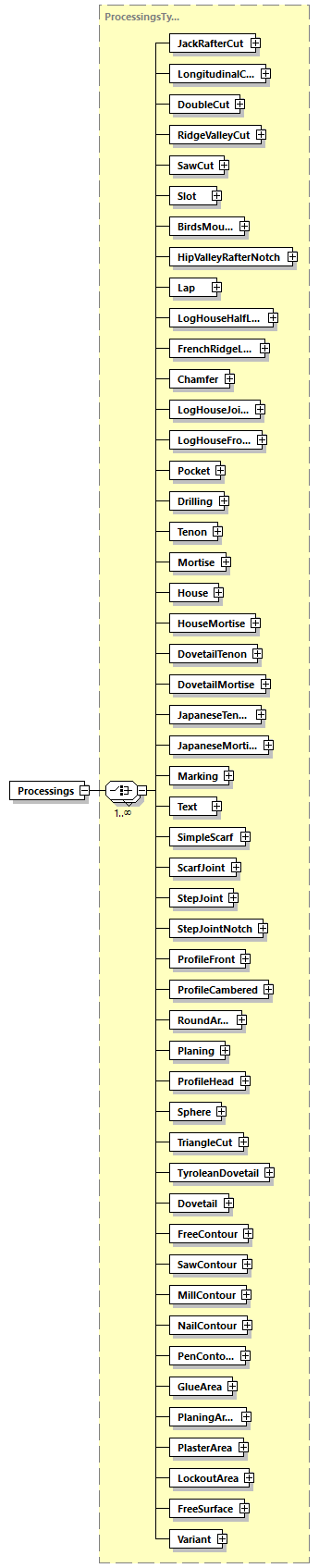

ProcessingsType
ProcessingType

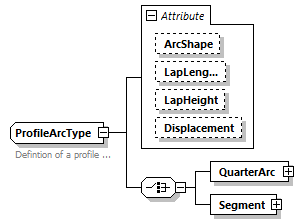

ProfileArcType
ProfileCamberedType

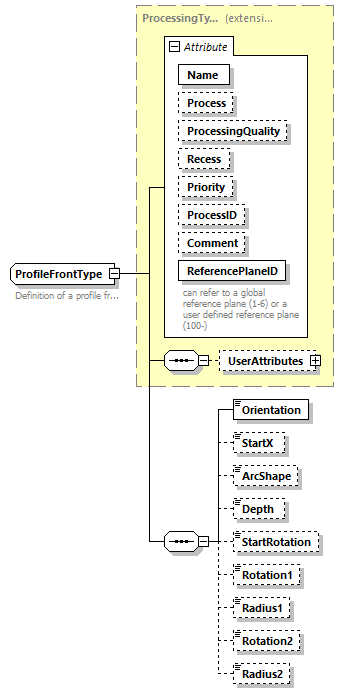

ProfileFrontType
ProfileHeadType

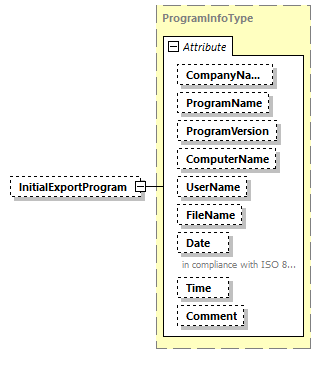

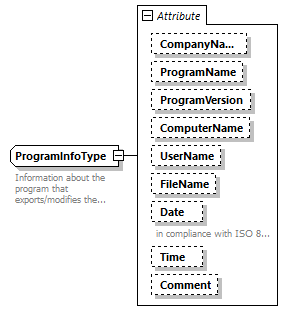

ProgramInfoType

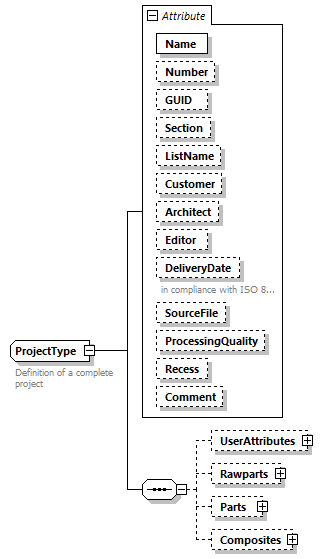

ProjectType
RawPartType
ReferenceType
RidgeValleyCutType
RoundArchType

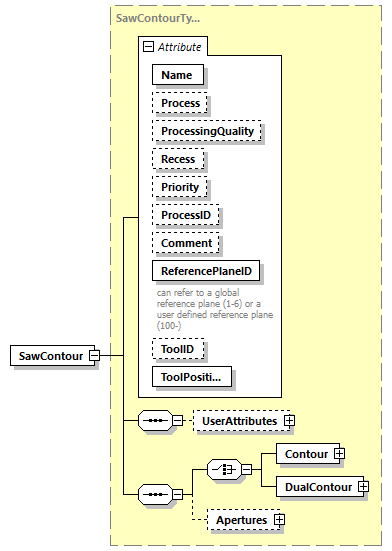

SawContourType
SawCutType

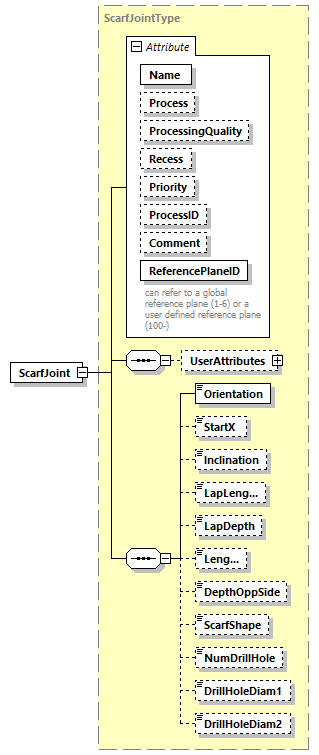

ScarfJointType
ScrewContourType
ShapeType

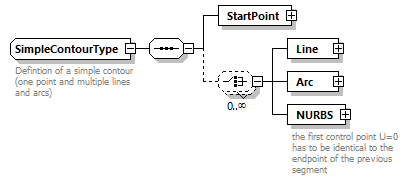

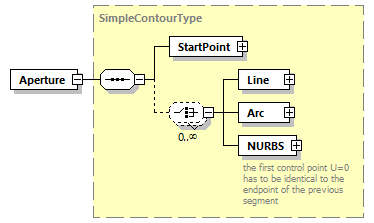

SimpleContourType
SimpleScarfType
SlotType

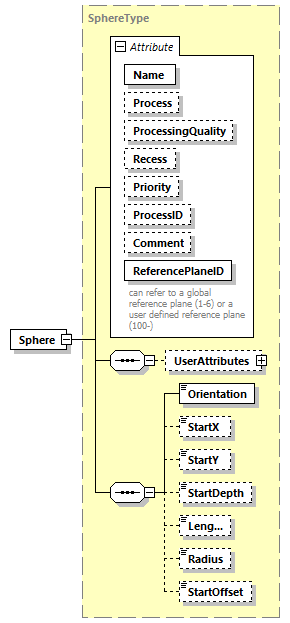

SphereType
StepJointNotchType
StepJointType
TenonType

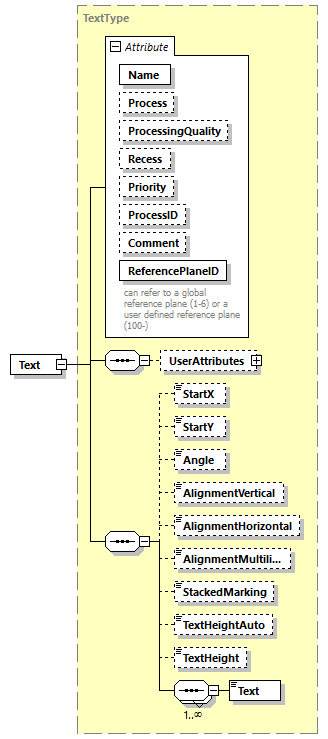

TextType
TriangleCutType
TyroleanDovetailType
UserAttributeType

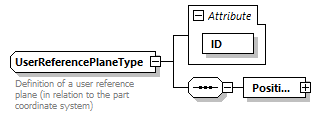

UserReferencePlaneType
VariantParameterType

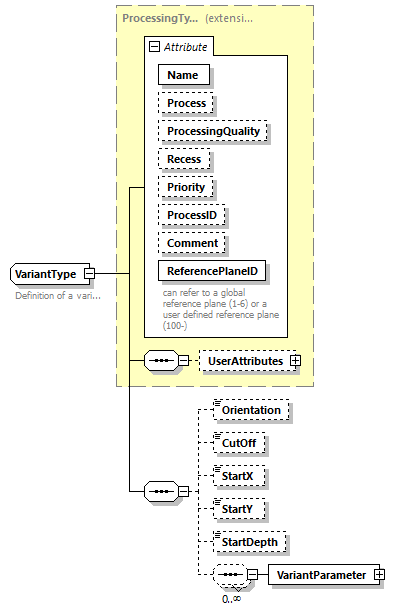

VariantType


schema location https://www.web3d.org/specifications/x3d-3.3.xsd
attributeFormDefault unqualified
elementFormDefault qualified
targetNamespace https://www.design2machine.com

Elements  Groups  Complex types  Simple types  Attr. groups

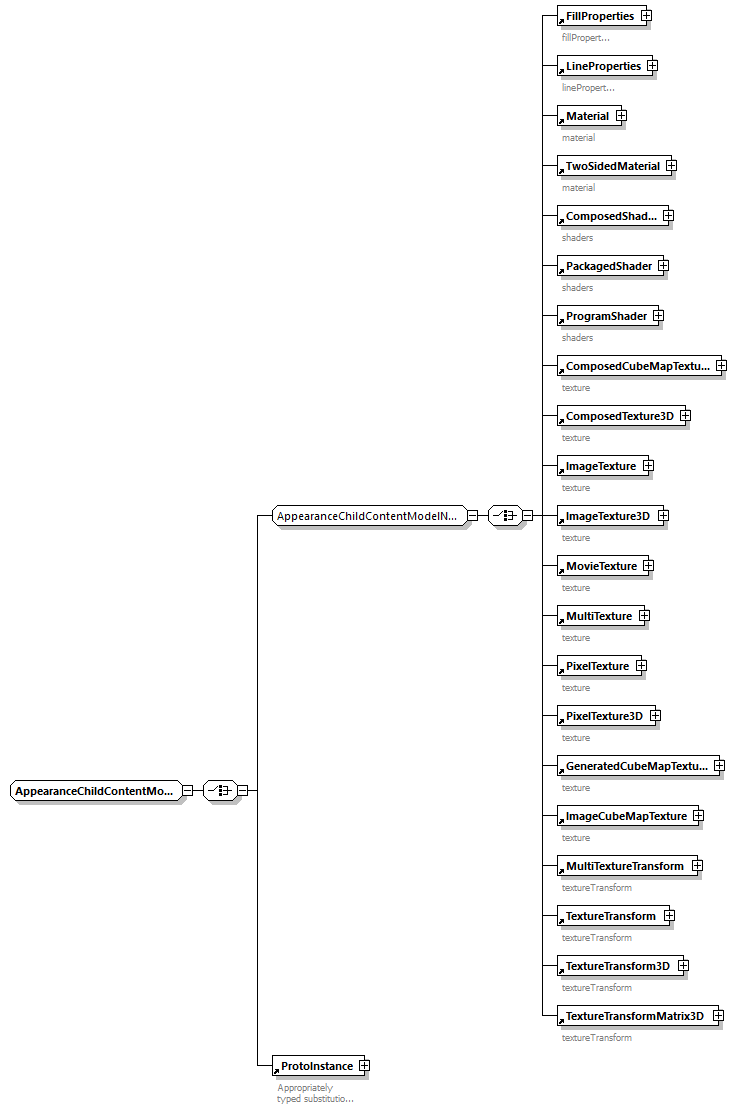

Anchor  AppearanceChildContentModel  SceneGraphStructureStatement  accessTypeChoices  DEF_USE

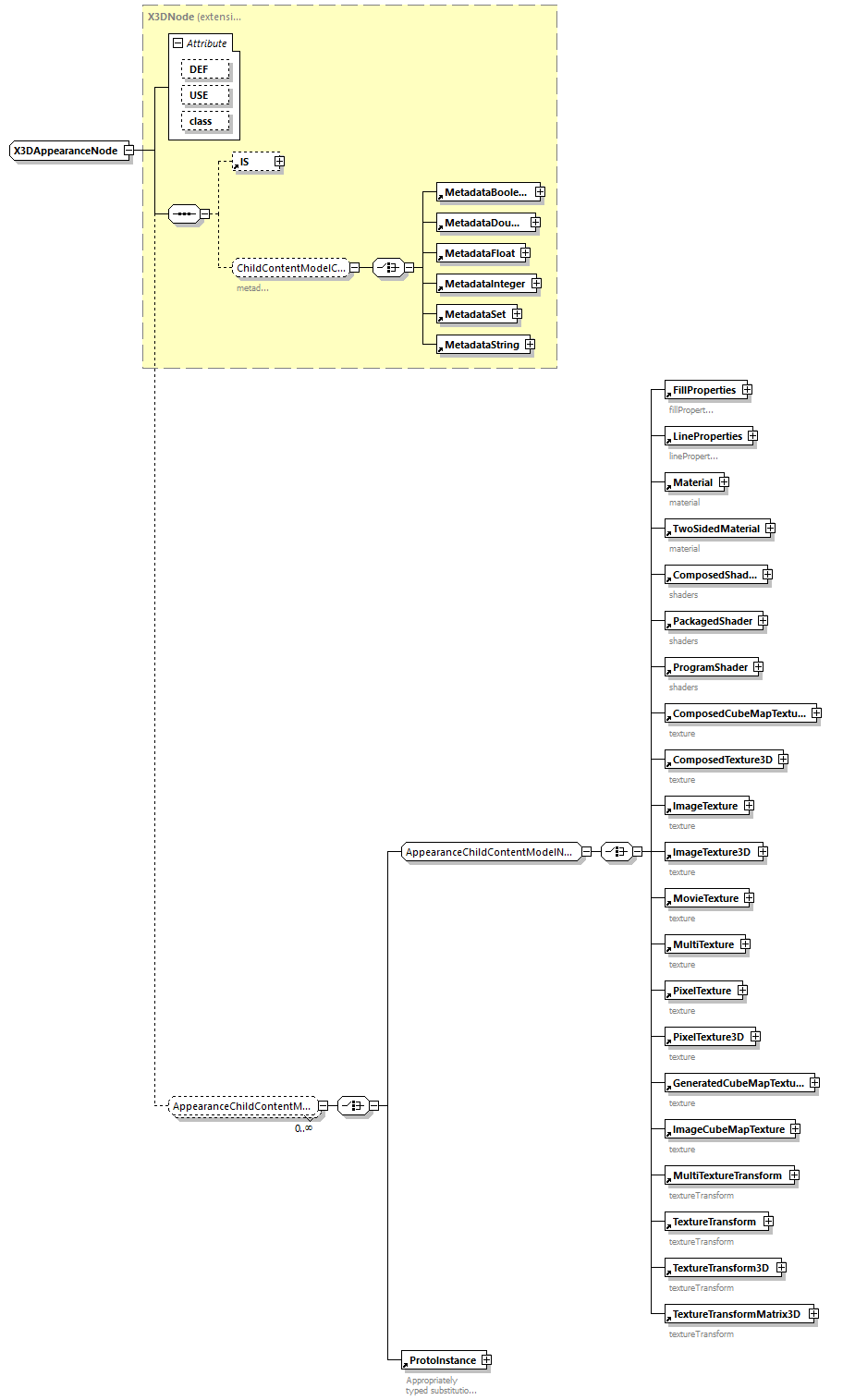

Appearance  AppearanceChildContentModelNoProtoInstance  X3DAppearanceChildNode  appliedParametersChoices  globalAttributes

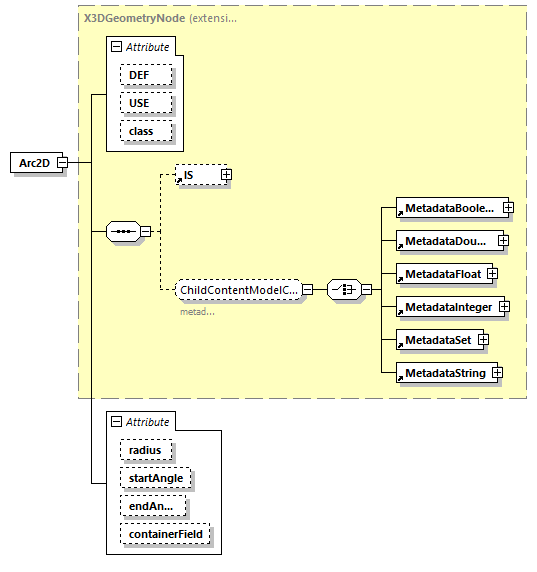

Arc2D  ChildContentModel  X3DAppearanceNode  bboxSizeType
ArcClose2D  ChildContentModelCore  X3DBackgroundNode  closureTypeChoices
AudioClip  ChildContentModelDIS  X3DBindableNode  componentNameChoices
Background  ChildContentModelFull  X3DBoundedObject  containerFieldChoicesAudioClip
BallJoint  ChildContentModelGeoSpatial  X3DChaserNode  containerFieldChoicesColor
Billboard  ChildContentModelHumanoidAnimation  X3DChildNode  containerFieldChoicesDISEntityTypeMapping

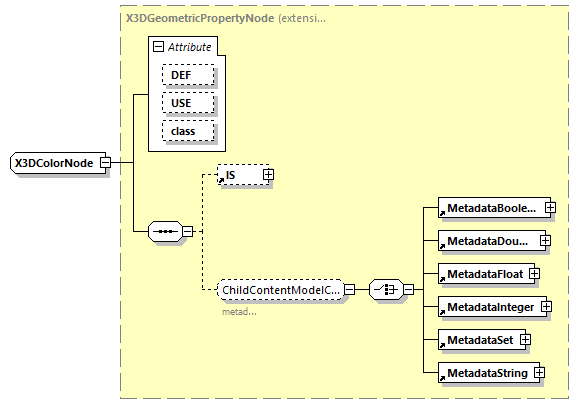

BlendedVolumeStyle  ChildContentModelImmersive  X3DColorNode  containerFieldChoicesGroupLODShapeTransform
BooleanFilter  ChildContentModelInteractive  X3DComposableVolumeRenderStyleNode  containerFieldChoicesHAnimJoint
BooleanSequencer  ChildContentModelInterchange  X3DComposedGeometryNode  containerFieldChoicesHAnimSegment

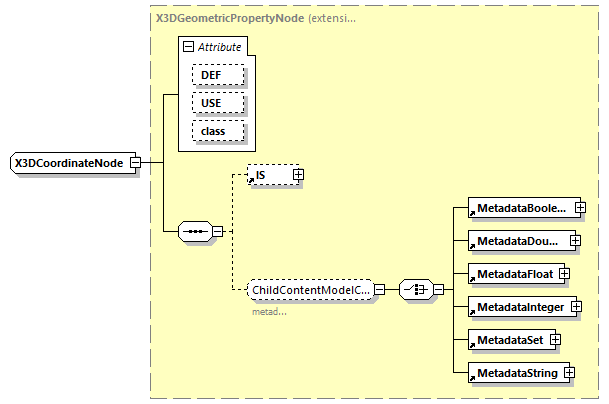

BooleanToggle  ChildContentModelNurbs  X3DCoordinateNode  containerFieldChoicesHAnimSite
BooleanTrigger  ChildContentModelProtoInstance  X3DDamperNode  containerFieldChoicesMetadata
BoundaryEnhancementVolumeStyle  ChildContentModelSceneGraphStructure  X3DDragSensorNode  containerFieldChoicesPackagedShader
BoundedPhysicsModel  ColorCoordinateContentModel  X3DEnvironmentalSensorNode  containerFieldChoicesShaderPart

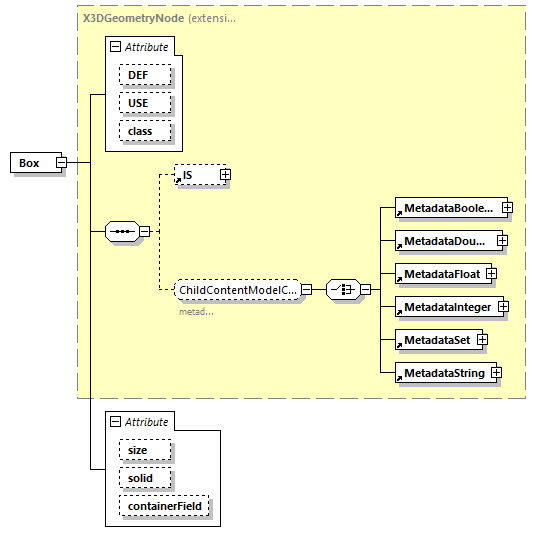

Box  ColorCoordinateNormalTexCoordContentModel  X3DEnvironmentTextureNode  containerFieldChoicesTextureCoordinate
CADAssembly  ColorNormalTexCoordContentModel  X3DField  containerFieldChoicesX3DCoordinateNode

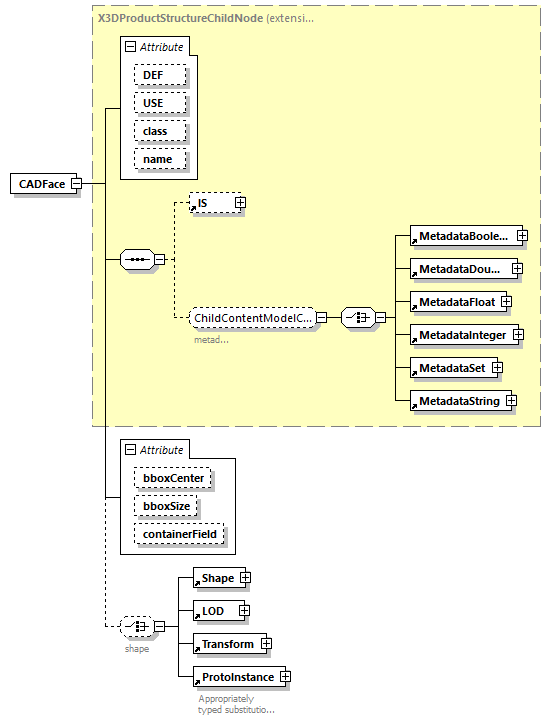

CADFace  ComposedGeometryContentModel  X3DFogObject  containerFieldChoicesX3DNormalNode
CADLayer  GeometryContentModel  X3DFollowerNode  containerFieldChoicesX3DTexture2DNode
CADPart  GeometryContentModel2D  X3DFontStyleNode  containerFieldChoicesX3DTexture3DNode
CartoonVolumeStyle  GeometryContentModel2DImmersive  X3DGeometricPropertyNode  containerFieldChoicesX3DUrlObject

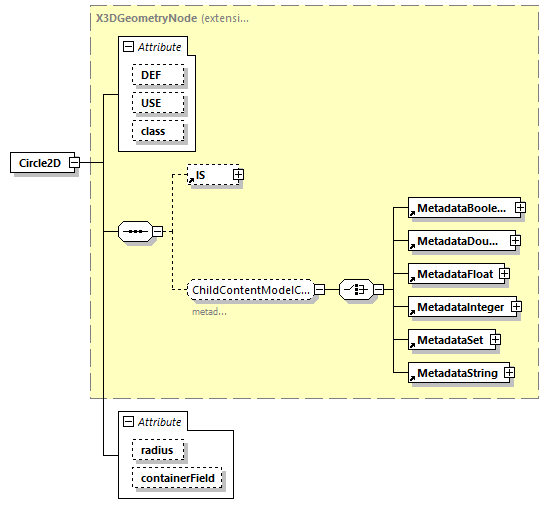

Circle2D  GeometryContentModelCAD  X3DGeometryNode  containerFieldChoicesX3dUrlObjectTexture
ClipPlane  GeometryContentModelGeoSpatial  X3DGroupingNode  fieldTypeChoices

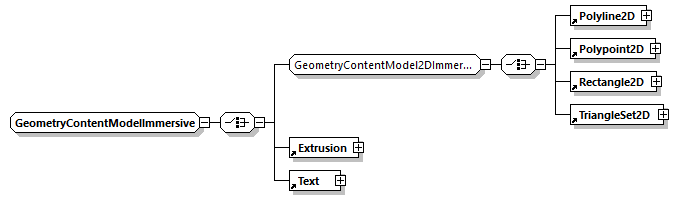

CollidableOffset  GeometryContentModelImmersive  X3DInfoNode  fogTypeChoices

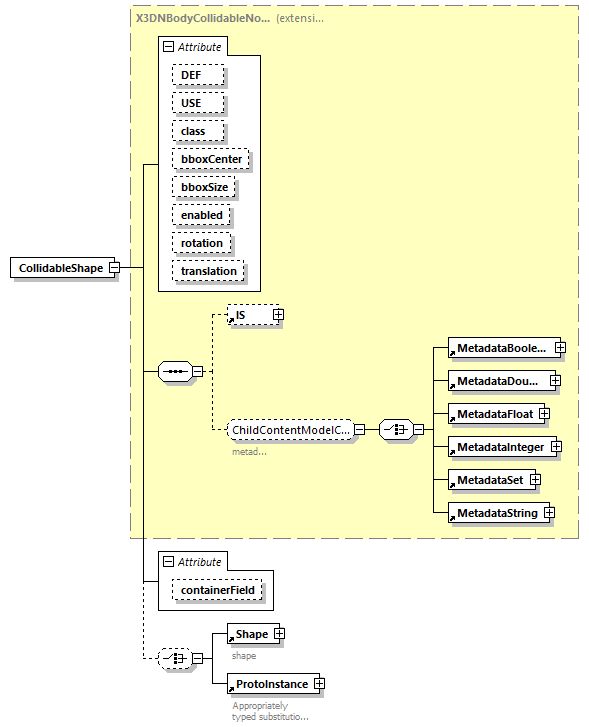

CollidableShape  GeometryContentModelInteractive  X3DInterpolatorNode  fontFamilyValues
Collision  GeometryContentModelInterchange  X3DKeyDeviceSensorNode  fontStyleChoices

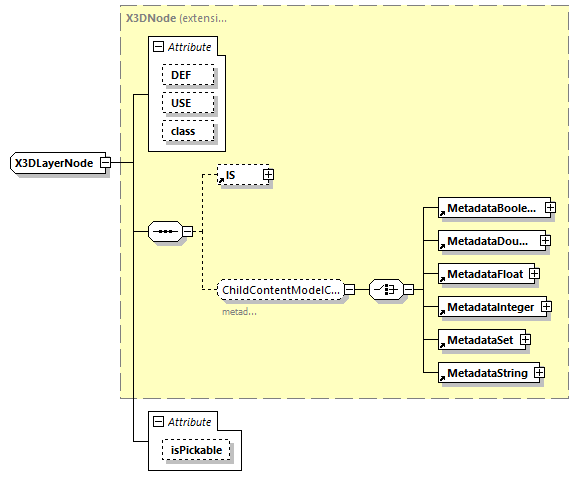

CollisionCollection  GeometryContentModelNurbs  X3DLayerNode  forceOutputValues

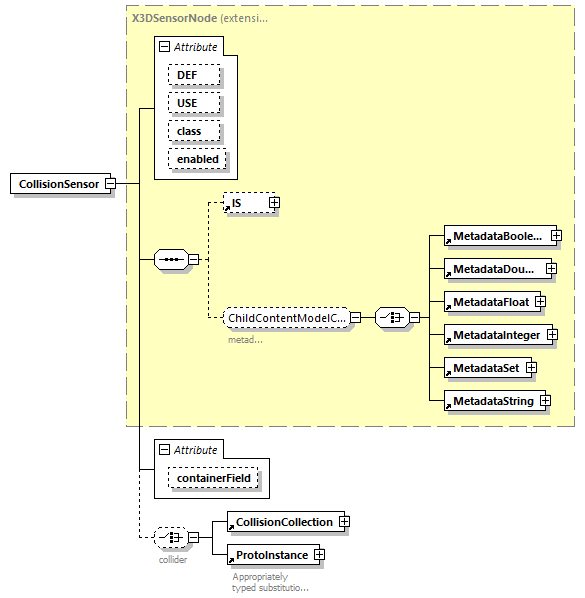

CollisionSensor  GroupingNodeChildContentModel  X3DLayoutNode  generatedCubeMapTextureUpdateChoices

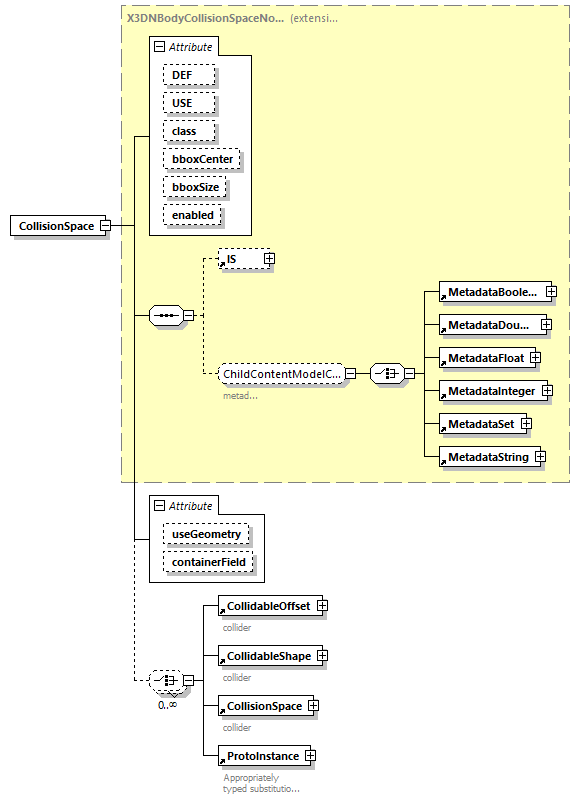

CollisionSpace  LayoutGroupContentModel  X3DLightNode  geoMetadataKeyValues

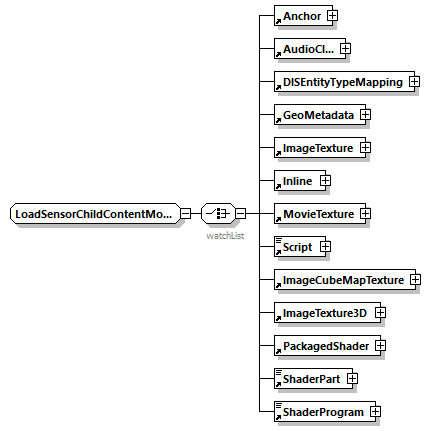

Color  LoadSensorChildContentModel  X3DMaterialNode  geoSystemEarthEllipsoidValues

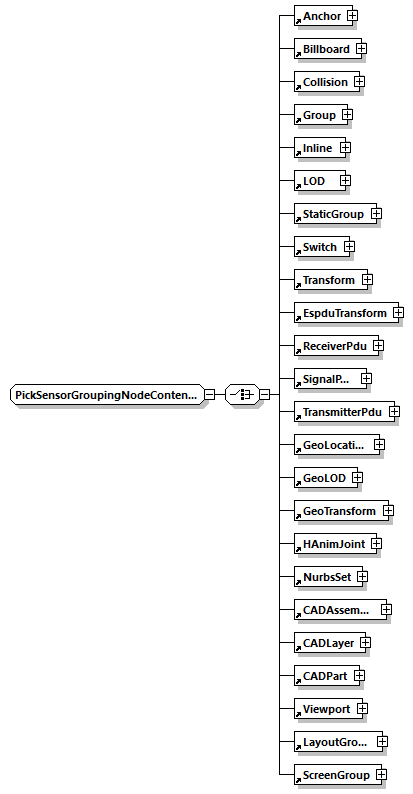

ColorChaser  PickSensorGroupingNodeContentModel  X3DMetadataObject  geoSystemSpatialReferenceFrameValues
ColorDamper  RigidBodyCollectionContentModel  X3DNBodyCollidableNode  geoSystemType
ColorInterpolator  RigidBodyContentModel  X3DNBodyCollisionSpaceNode  hanimFeaturePointNameValues
ColorRGBA  RigidJointNodeContentModel  X3DNetworkSensorNode  hanimHumanoidInfoKeyValues

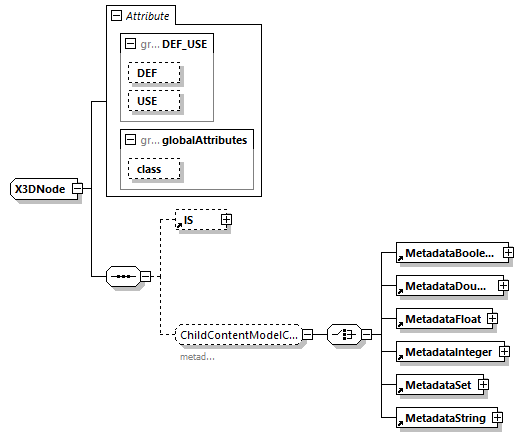

component  SceneGraphFragmentContentModel  X3DNode  hanimJointNameValues
ComposedCubeMapTexture  SceneGraphFragmentWithPrototypeDeclarationsContentModel  X3DNodeMixedContent  hanimSegmentNameValues
ComposedShader  ShapeChildContentModel  X3DNormalNode  hanimVersionChoices
ComposedTexture3D  SoundChildContentModel  X3DNurbsControlCurveNode  initializeOnlyAccessTypes
ComposedVolumeStyle  TextChildContentModel  X3DNurbsSurfaceGeometryNode  inputOnlyAccessTypes

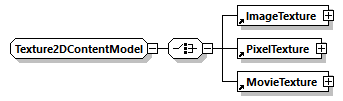

Cone  Texture2DContentModel  X3DParametricGeometryNode  inputOutputAccessTypes

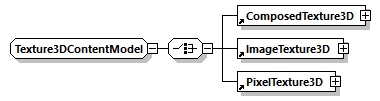

ConeEmitter  Texture3DContentModel  X3DParticleEmitterNode  intensityType
connect  TextureBackgroundChildContentModel  X3DParticlePhysicsModelNode  intersectionTypeValues

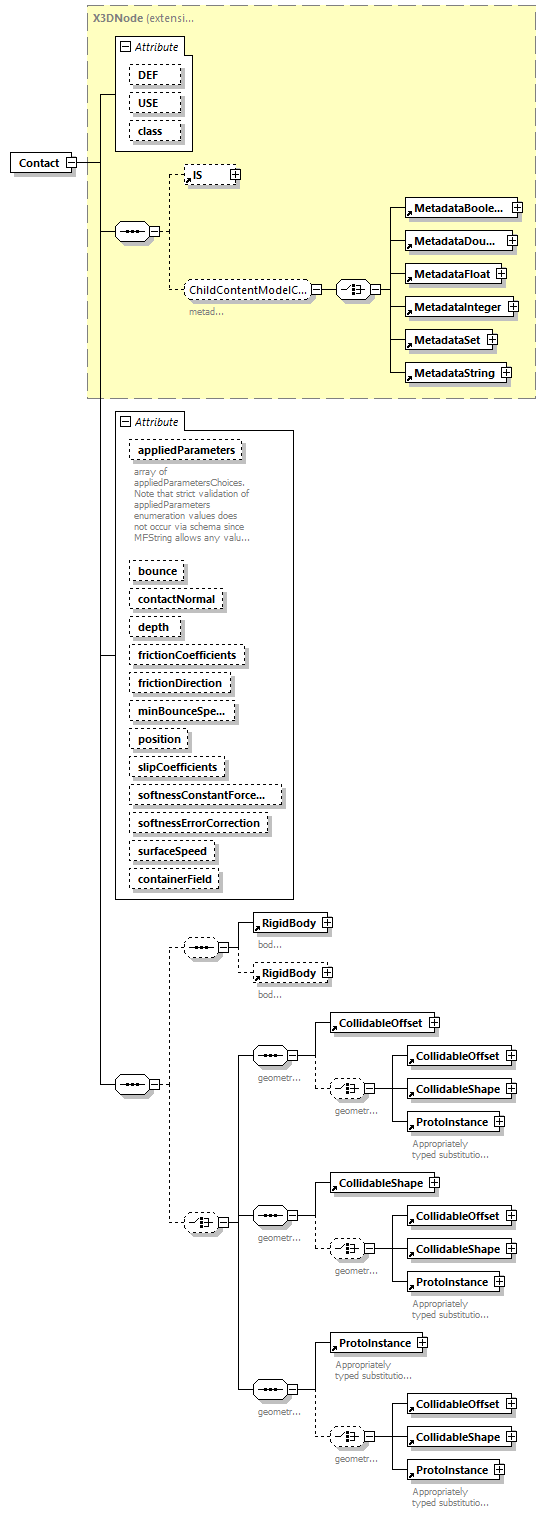

Contact  TextureContentModel  X3DPickableObject  justifyChoices

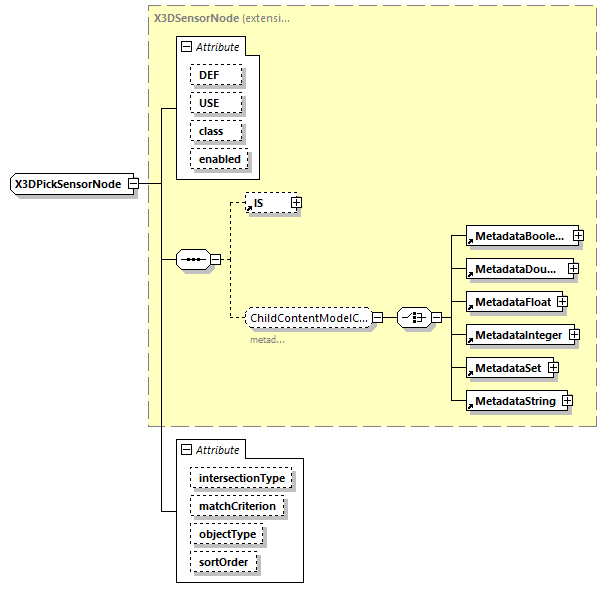

Contour2D  VolumeRenderStyleContentModel  X3DPickSensorNode  layoutAlignChoices
ContourPolyline2D  X3DPointingDeviceSensorNode  layoutScaleModeChoices

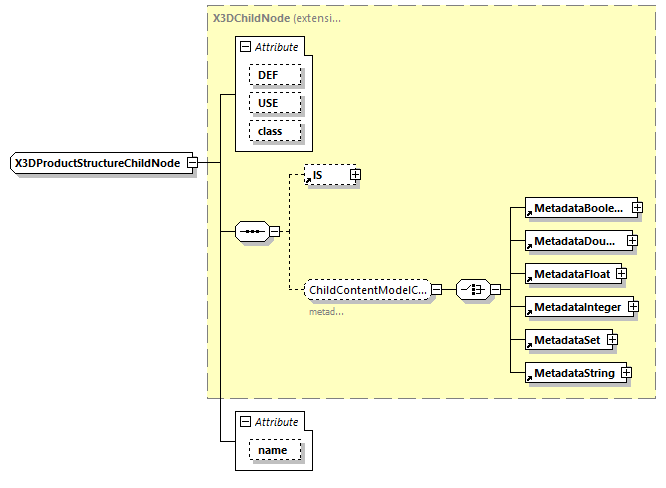

Coordinate  X3DProductStructureChildNode  layoutUnitsChoices
CoordinateChaser  X3DProgrammableShaderObject  metaDirectionChoices

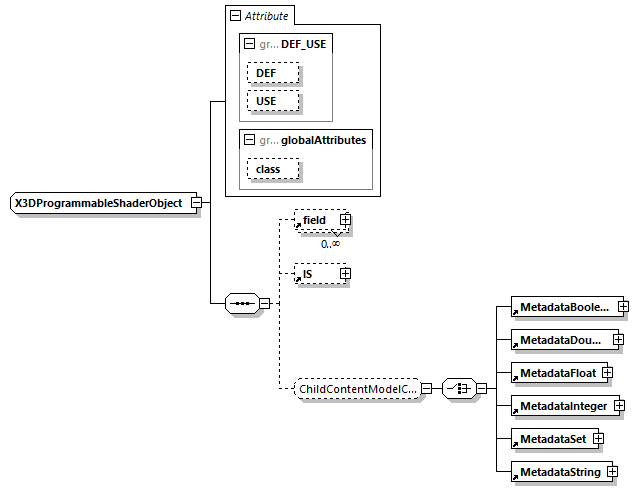

CoordinateDamper  X3DPrototypeInstance  metaNameValues

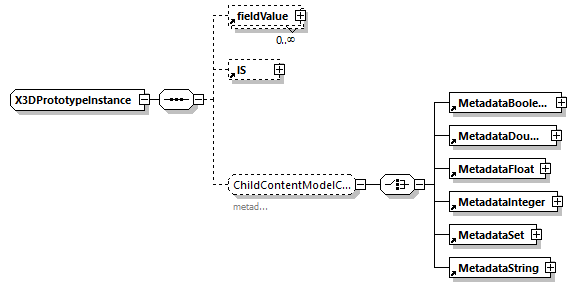

CoordinateDouble  X3DRigidJointNode  MFBool
CoordinateInterpolator  X3DScriptNode  MFColor
CoordinateInterpolator2D  X3DSensorNode  MFColorRGBA

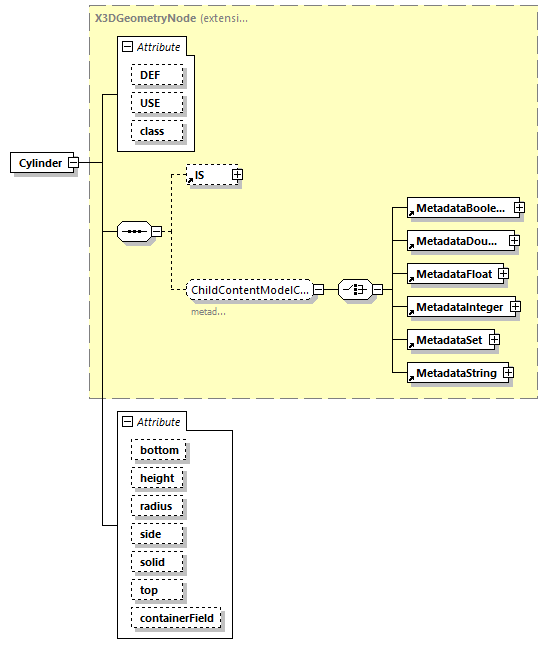

Cylinder  X3DSequencerNode  MFDouble
CylinderSensor  X3DShaderNode  MFFloat

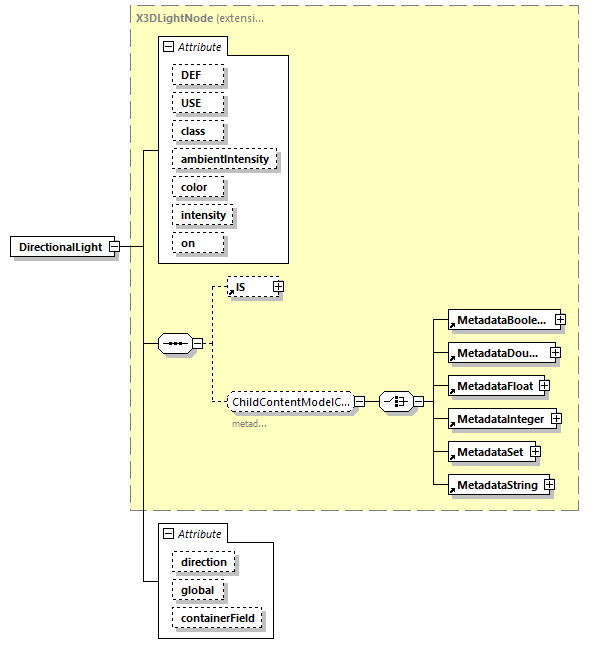

DirectionalLight  X3DShapeNode  MFImage

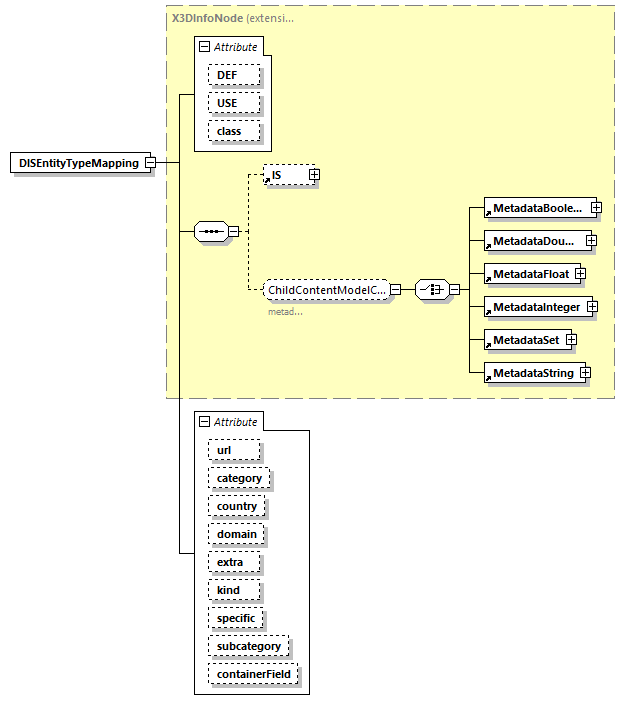

DISEntityManager  X3DSoundNode  MFInt32
DISEntityTypeMapping  X3DSoundSourceNode  MFMatrix3d
Disk2D  X3DTexture2DNode  MFMatrix3f
DoubleAxisHingeJoint  X3DTexture3DNode  MFMatrix4d
EaseInEaseOut  X3DTextureCoordinateNode  MFMatrix4f
EdgeEnhancementVolumeStyle  X3DTextureNode  MFNode
ElevationGrid  X3DTextureTransformNode  MFRotation
EspduTransform  X3DTimeDependentNode  MFString

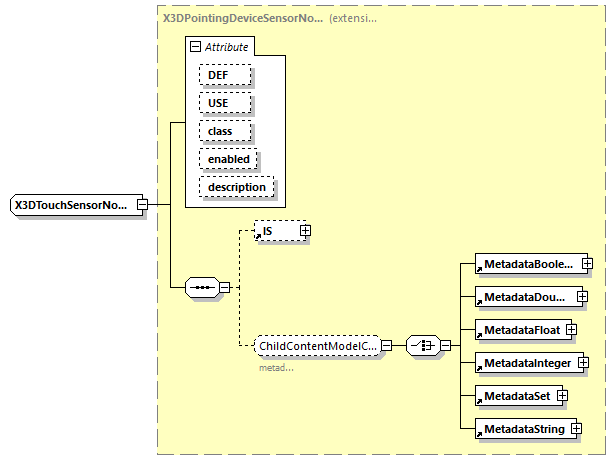

ExplosionEmitter  X3DTouchSensorNode  MFTime
EXPORT  X3DTriggerNode  MFVec2d
ExternProtoDeclare  X3DUrlObject  MFVec2f

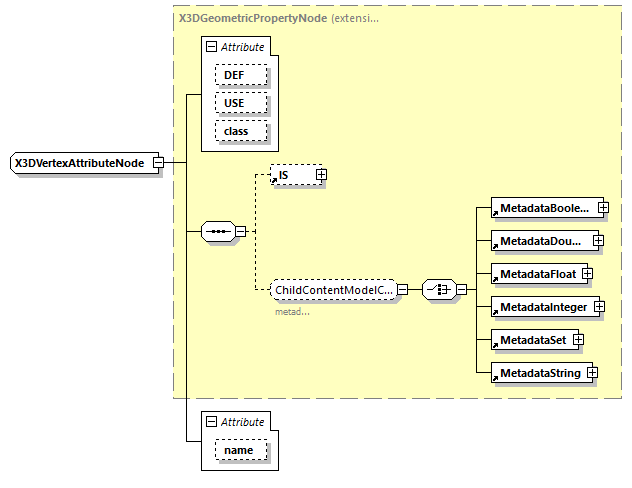

Extrusion  X3DVertexAttributeNode  MFVec3d
field  X3DViewpointNode  MFVec3f
fieldValue  X3DViewportNode  MFVec4d
FillProperties  X3DVolumeDataNode  MFVec4f

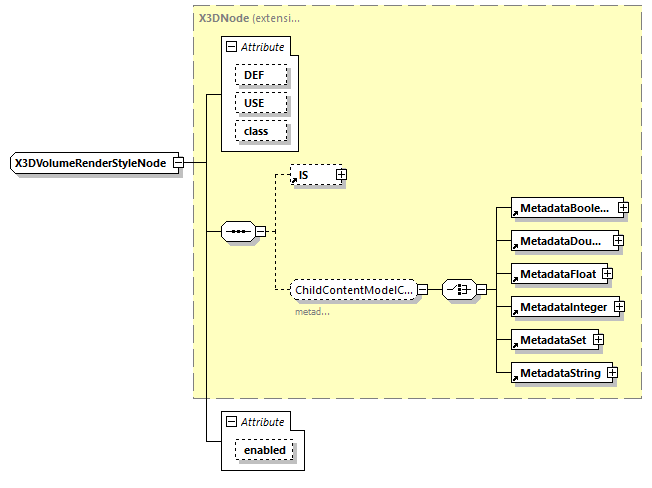

FloatVertexAttribute  X3DVolumeRenderStyleNode  multiTextureFunctionValues
Fog  multiTextureModeValues
FogCoordinate  multiTextureSourceValues
FontStyle  navigationTransitionTypeValues
ForcePhysicsModel  navigationTypeValues
GeneratedCubeMapTexture  networkModeChoices

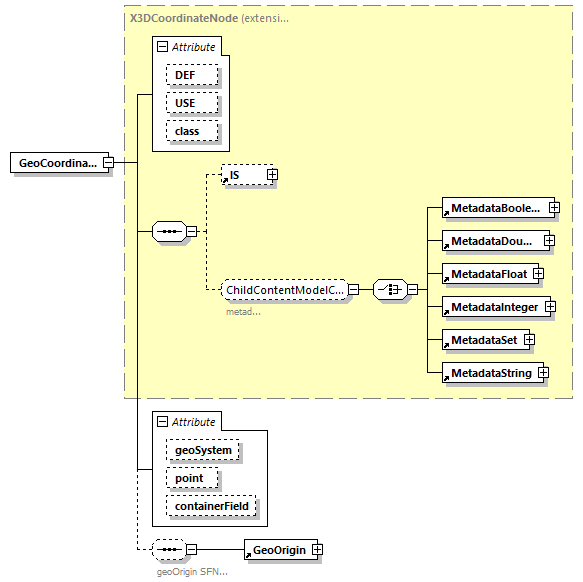

GeoCoordinate  outputOnlyAccessTypes
GeoElevationGrid  particleSystemGeometryTypeValues
GeoLocation  phaseFunctionValues
GeoLOD  pickableObjectTypeValues
GeoMetadata  pickSensorMatchCriterionChoices

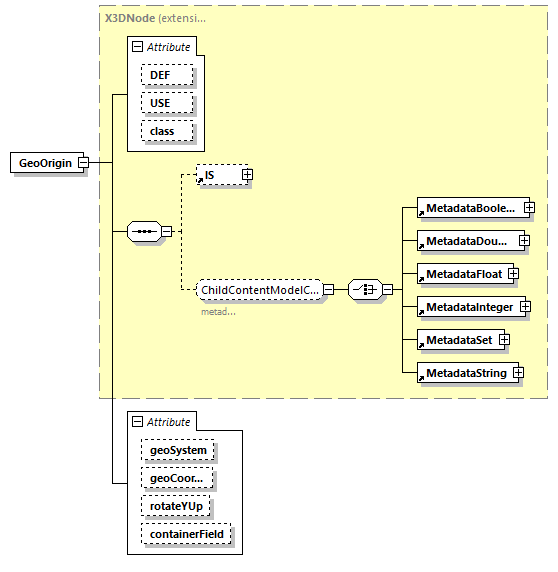

GeoOrigin  pickSensorSortOrderValues
GeoPositionInterpolator  profileNameChoices
GeoProximitySensor  projectionVolumeStyleTypeChoices
GeoTouchSensor  SFBool
GeoTransform  SFColor
GeoViewpoint  SFColorRGBA
Group  SFDouble

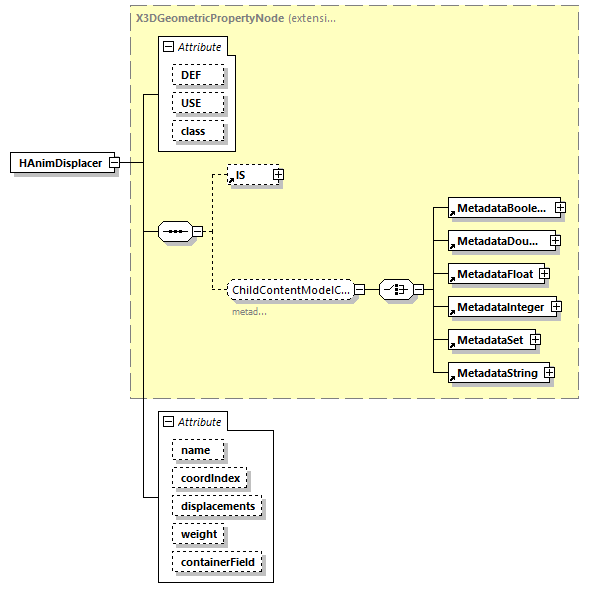

HAnimDisplacer  SFFloat
HAnimHumanoid  SFImage
HAnimJoint  SFInt32
HAnimSegment  SFMatrix3d
HAnimSite  SFMatrix3f
head  SFMatrix4d
ImageCubeMapTexture  SFMatrix4f
ImageTexture  SFNode
ImageTexture3D  SFRotation
IMPORT  SFString
IndexedFaceSet  SFTime

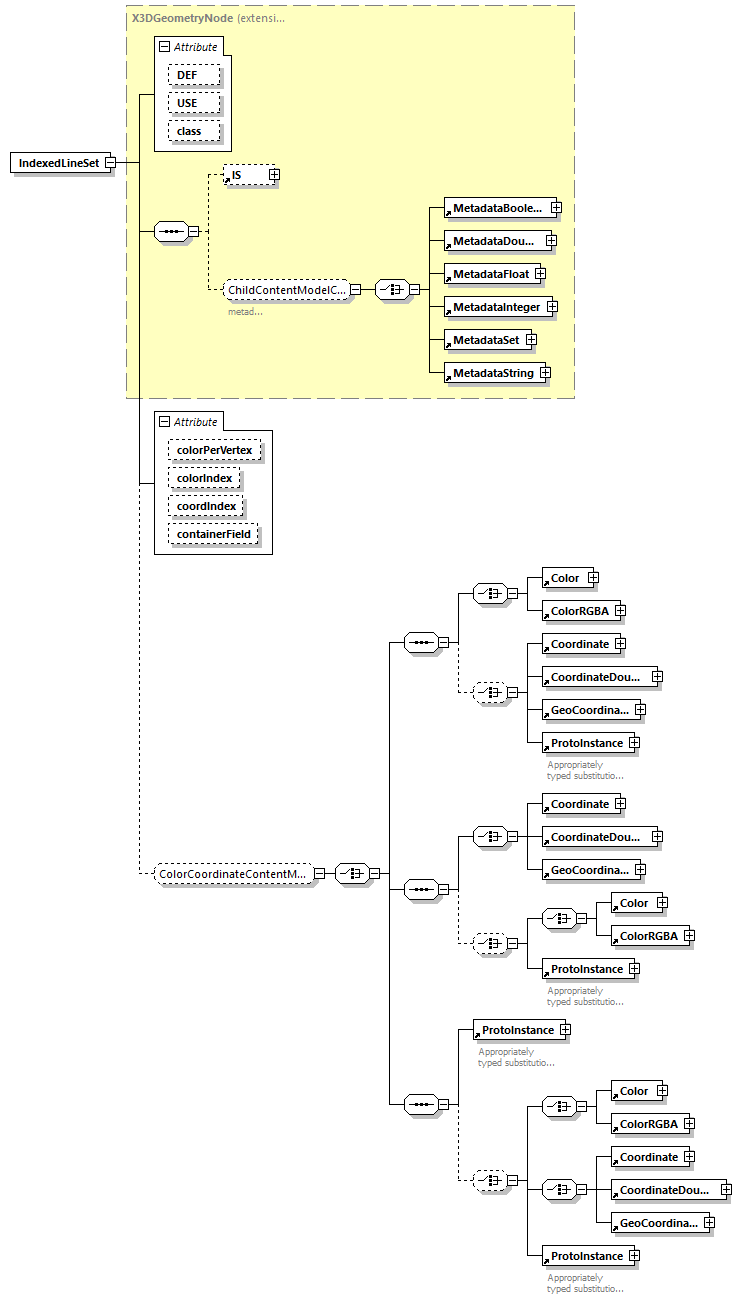

IndexedLineSet  SFVec2d
IndexedQuadSet  SFVec2f
IndexedTriangleFanSet  SFVec3d
IndexedTriangleSet  SFVec3f
IndexedTriangleStripSet  SFVec4d
Inline  SFVec4f
IntegerSequencer  shaderLanguageValues
IntegerTrigger  shaderPartTypeValues
IS  textureBoundaryModeChoices

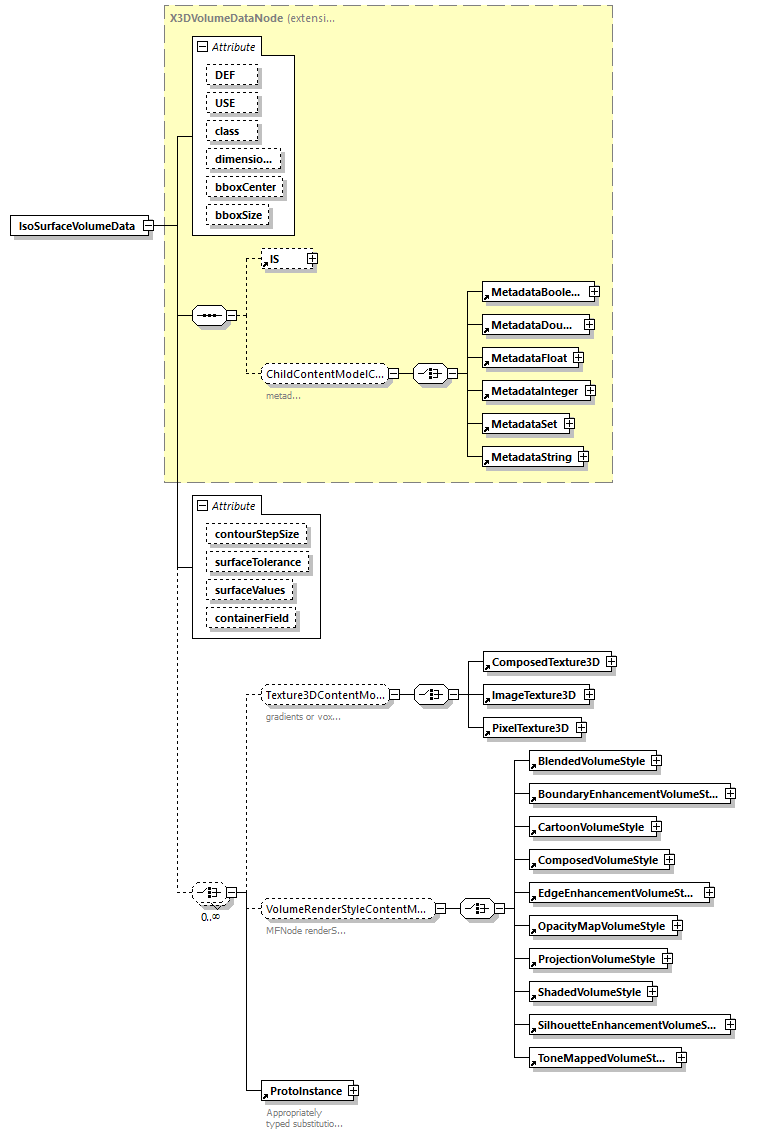

IsoSurfaceVolumeData  textureCompressionModeChoices
KeySensor  textureCoordinateGeneratorModeChoices
Layer  textureMagnificationModeChoices

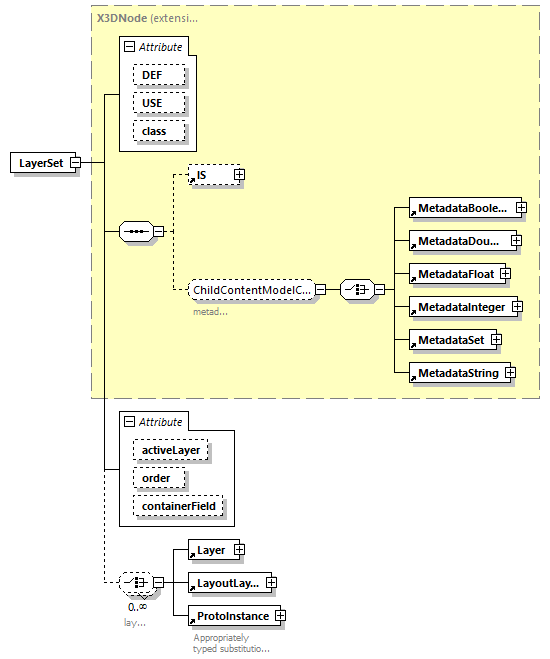

LayerSet  textureMinificationModeChoices
Layout  unitCategoryChoices
LayoutGroup  volumeRenderingWeightFunctionChoices
LayoutLayer  x3dVersionChoices
LinePickSensor
LineProperties
LineSet

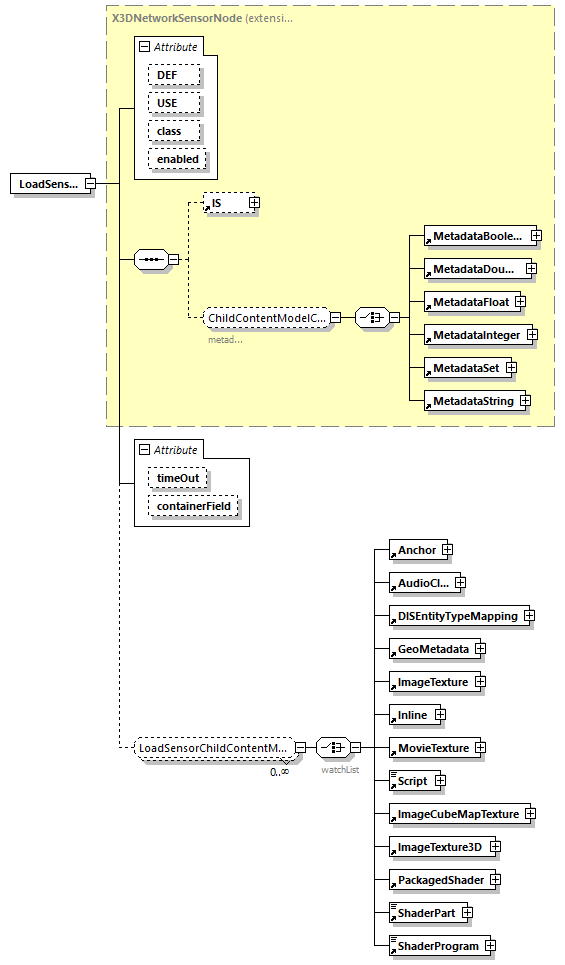

LoadSensor

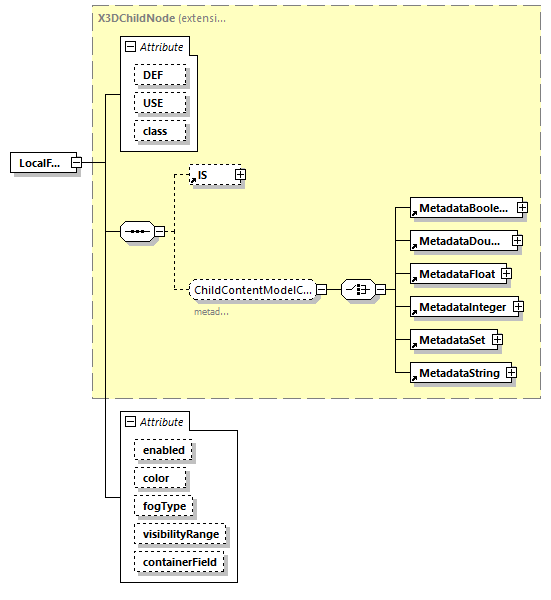

LocalFog
LOD
Material

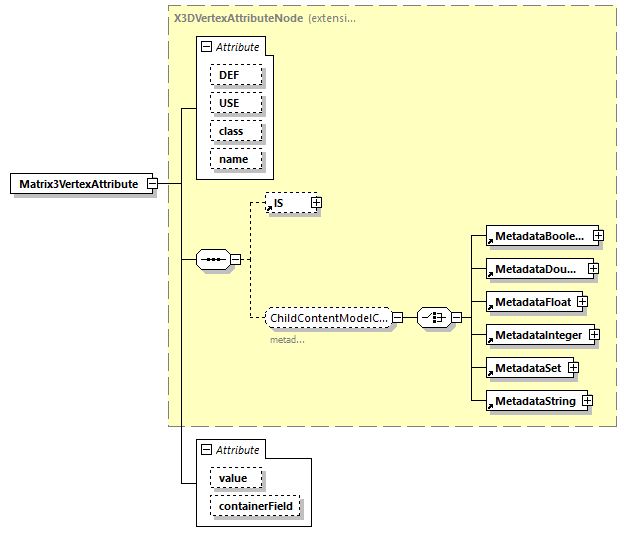

Matrix3VertexAttribute
Matrix4VertexAttribute
meta

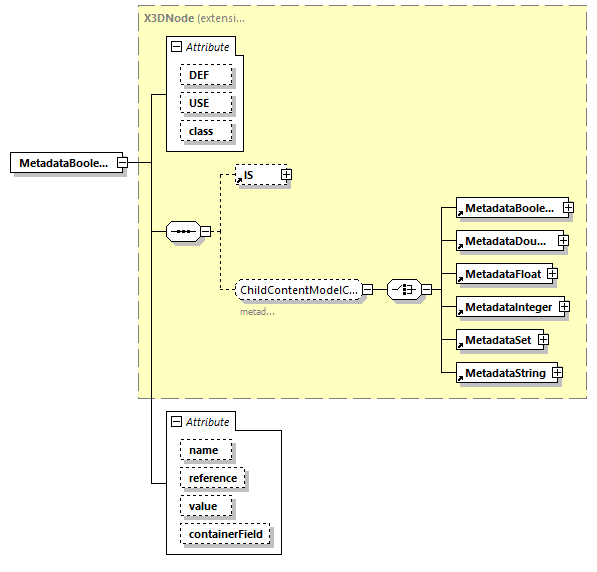

MetadataBoolean

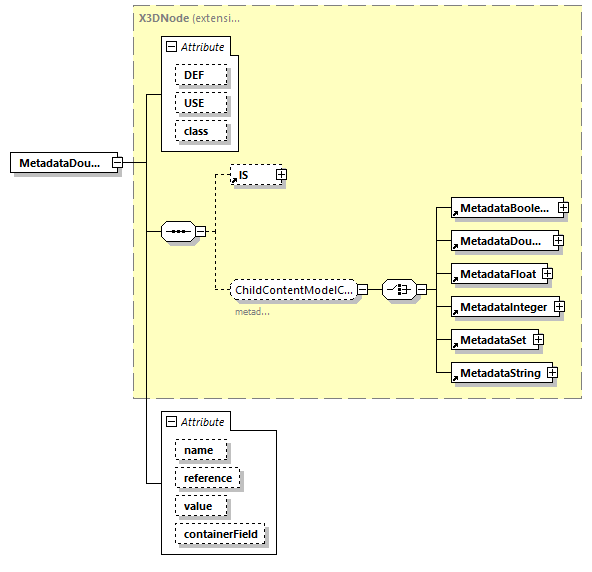

MetadataDouble

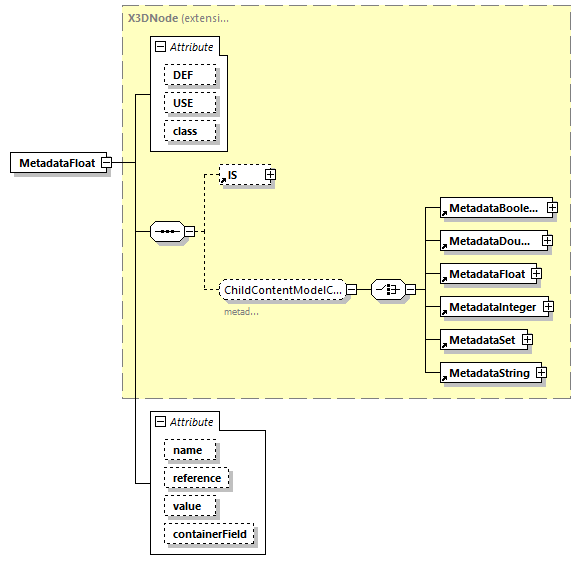

MetadataFloat
MetadataInteger
MetadataSet
MetadataString
MotorJoint

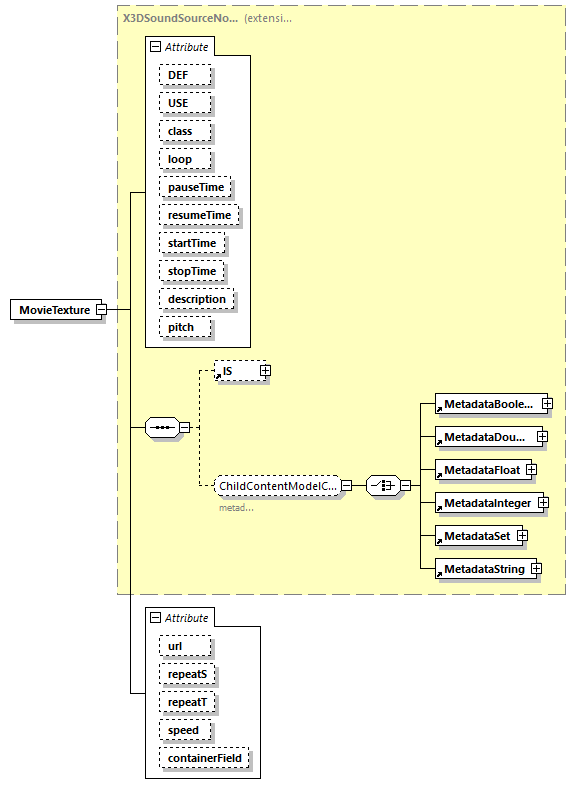

MovieTexture
MultiTexture
MultiTextureCoordinate
MultiTextureTransform

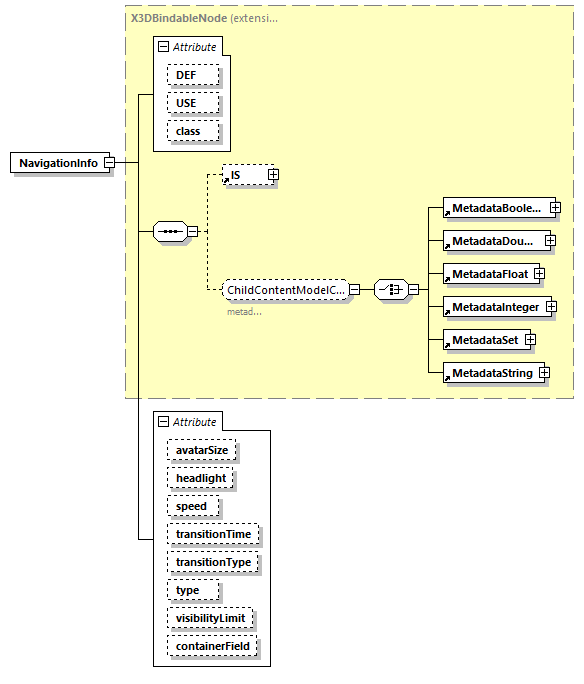

NavigationInfo
Normal
NormalInterpolator
NurbsCurve

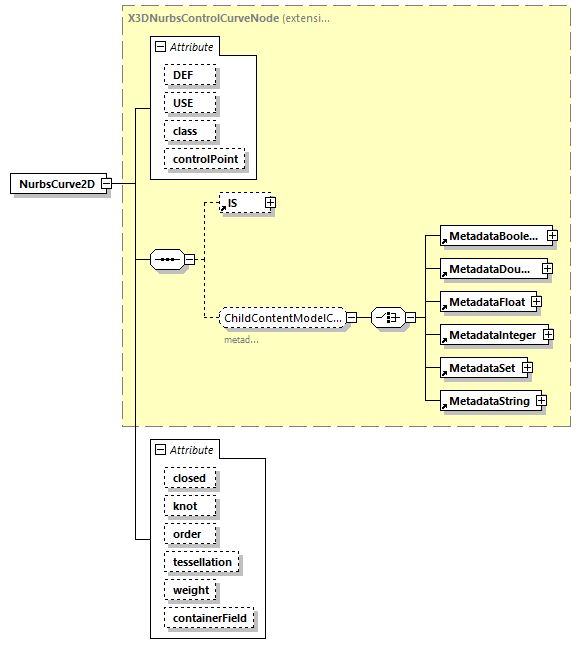

NurbsCurve2D
NurbsOrientationInterpolator
NurbsPatchSurface
NurbsPositionInterpolator
NurbsSet

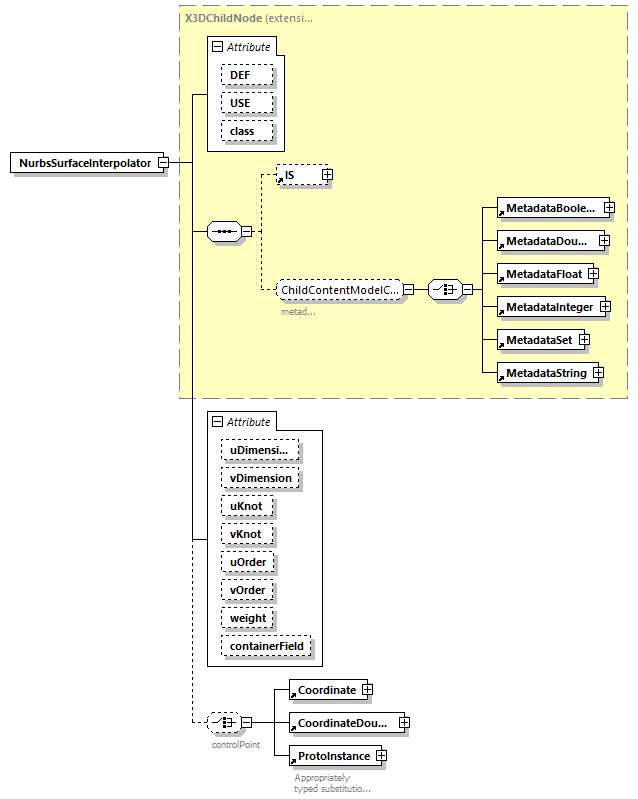

NurbsSurfaceInterpolator

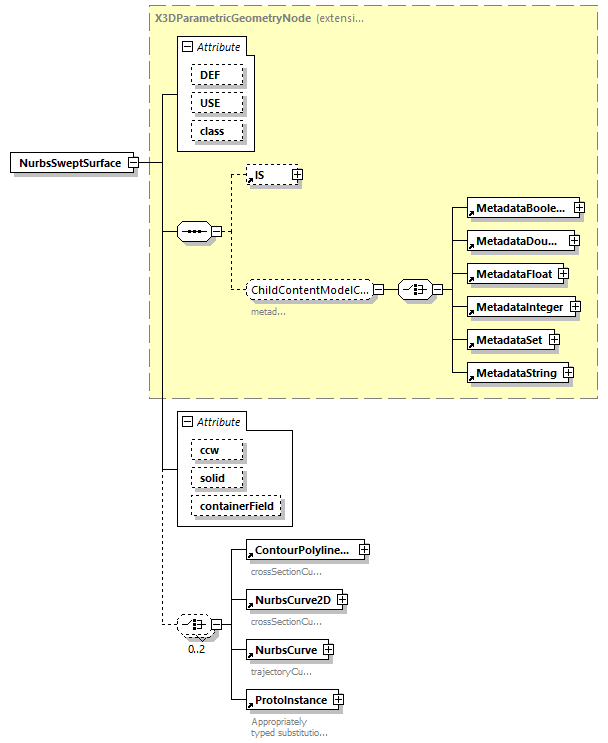

NurbsSweptSurface

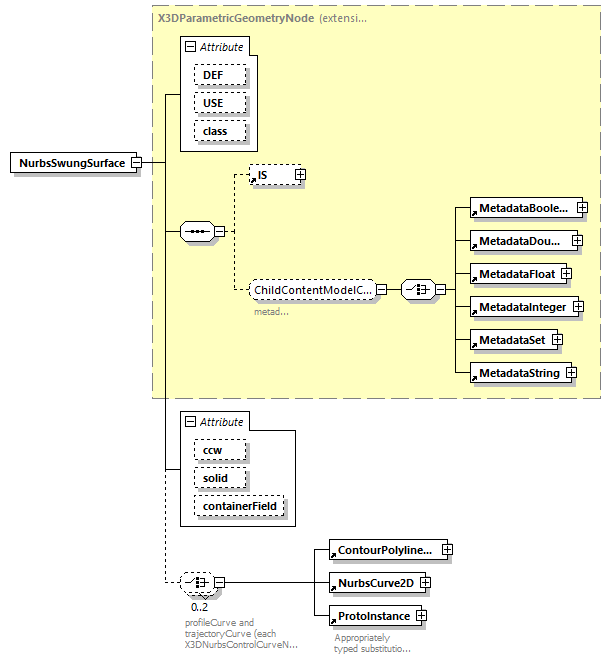

NurbsSwungSurface
NurbsTextureCoordinate
NurbsTrimmedSurface
OpacityMapVolumeStyle

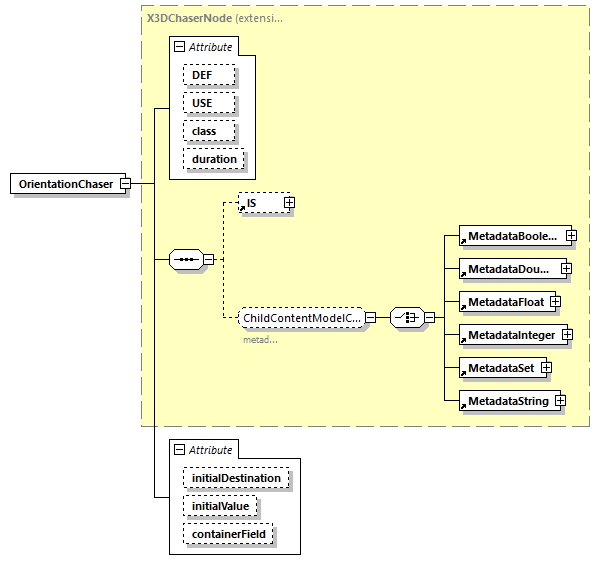

OrientationChaser
OrientationDamper
OrientationInterpolator
OrthoViewpoint

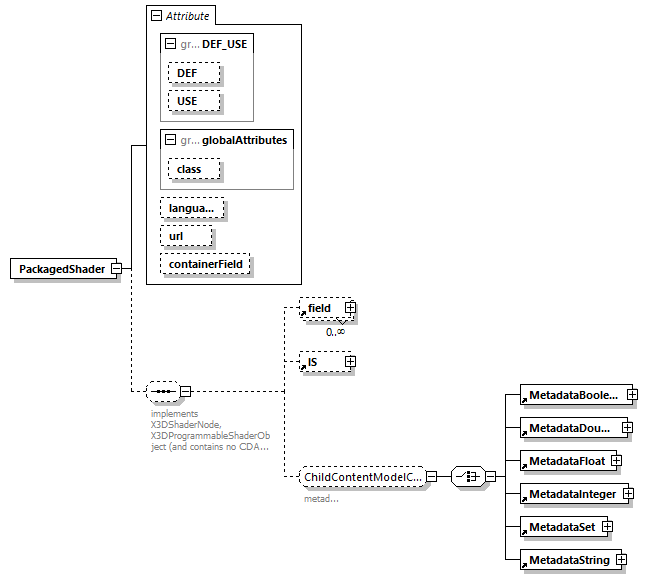

PackagedShader
ParticleSystem
PickableGroup
PixelTexture

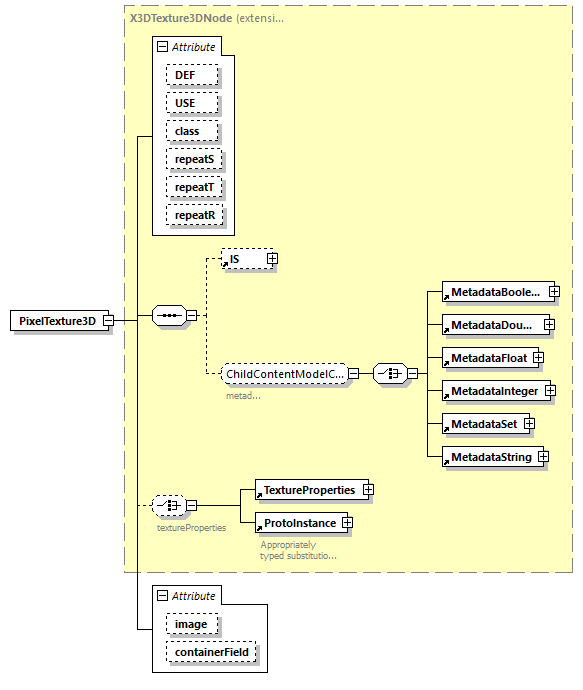

PixelTexture3D
PlaneSensor
PointEmitter
PointLight
PointPickSensor
PointSet
Polyline2D

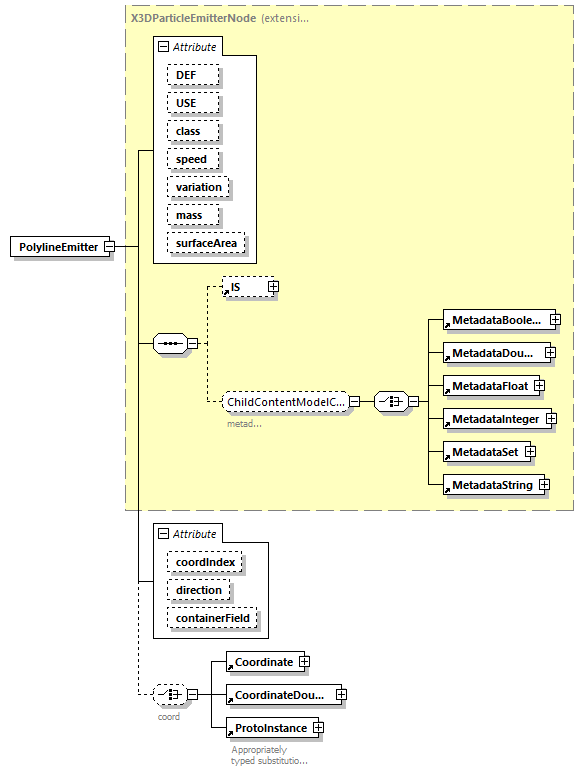

PolylineEmitter
Polypoint2D
PositionChaser
PositionChaser2D
PositionDamper
PositionDamper2D
PositionInterpolator
PositionInterpolator2D
PrimitivePickSensor

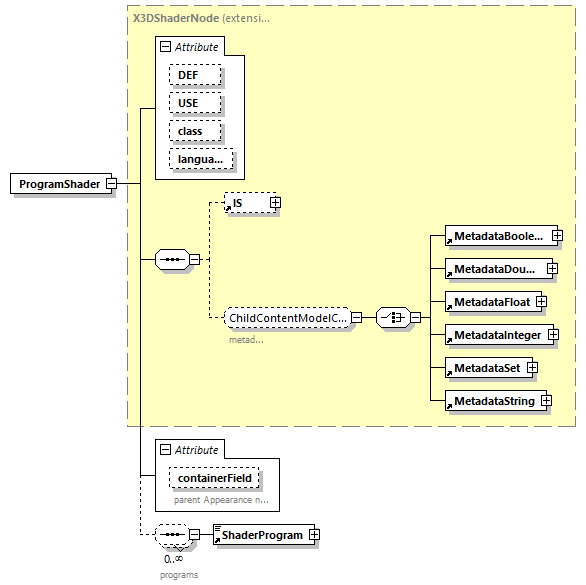

ProgramShader
ProjectionVolumeStyle
ProtoBody
ProtoDeclare
ProtoInstance
ProtoInterface

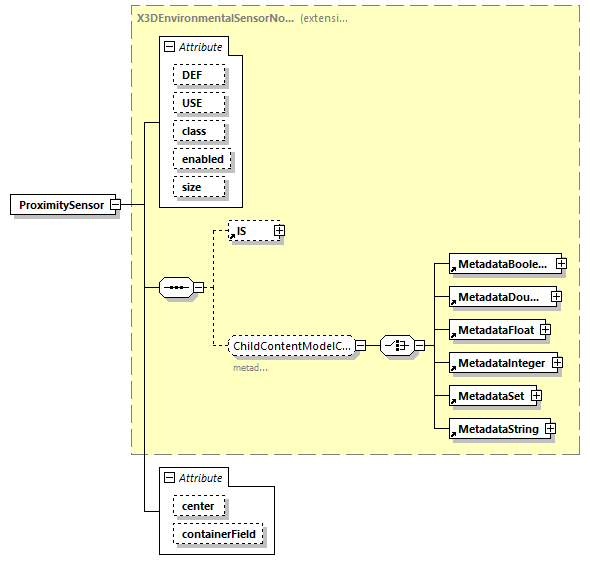

ProximitySensor

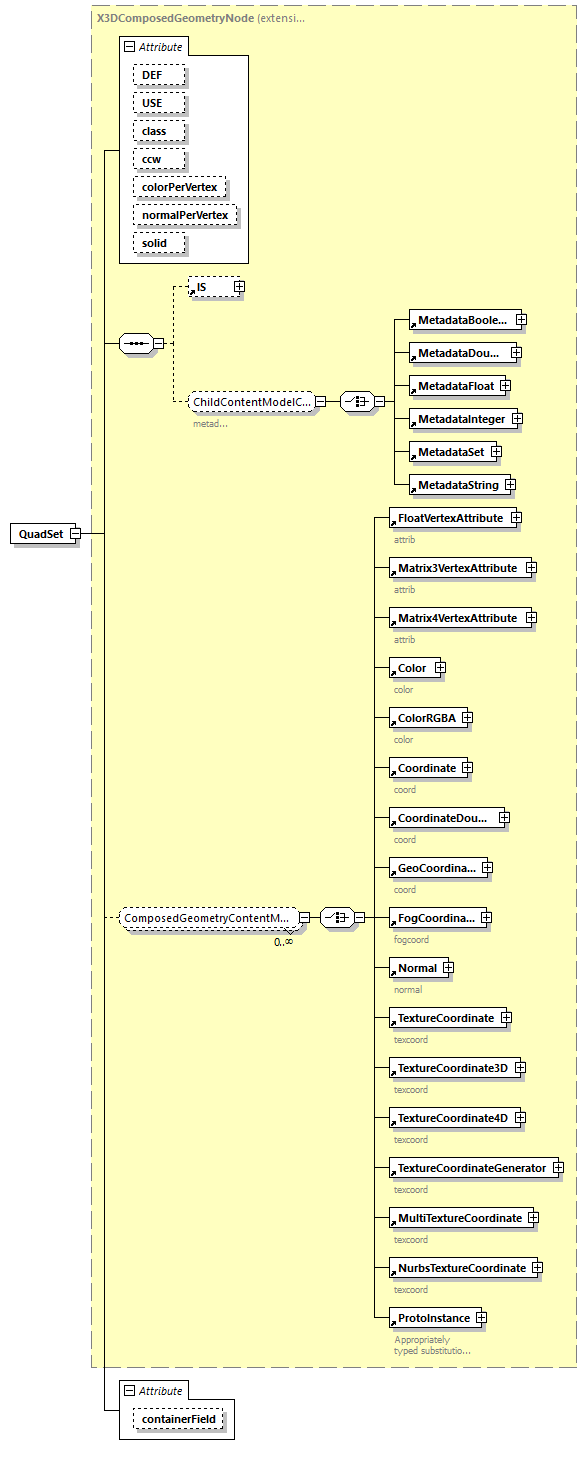

QuadSet

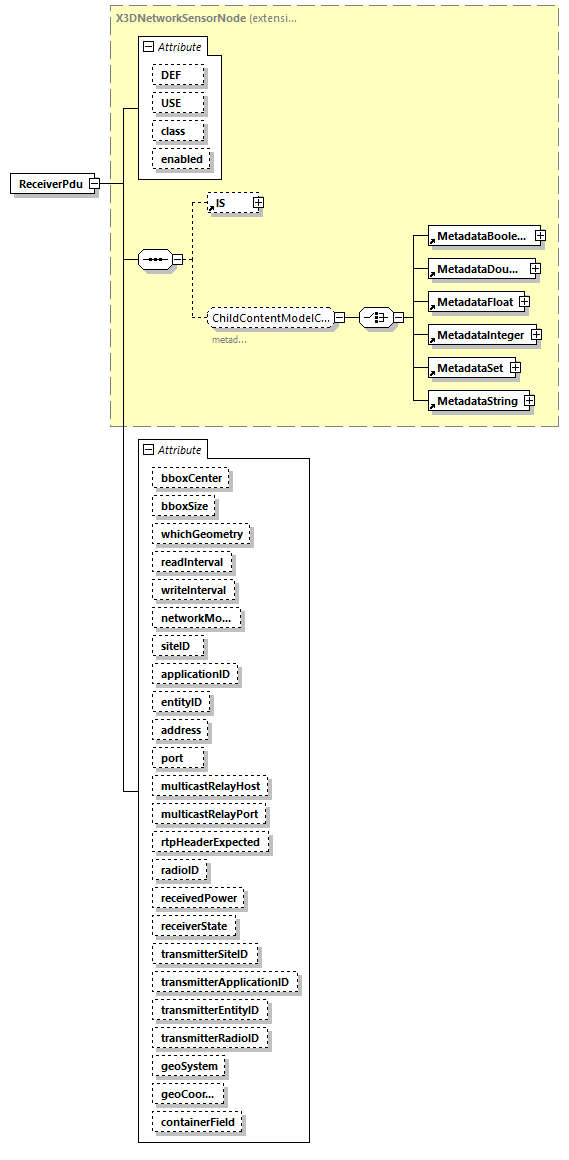

ReceiverPdu
Rectangle2D
RigidBody

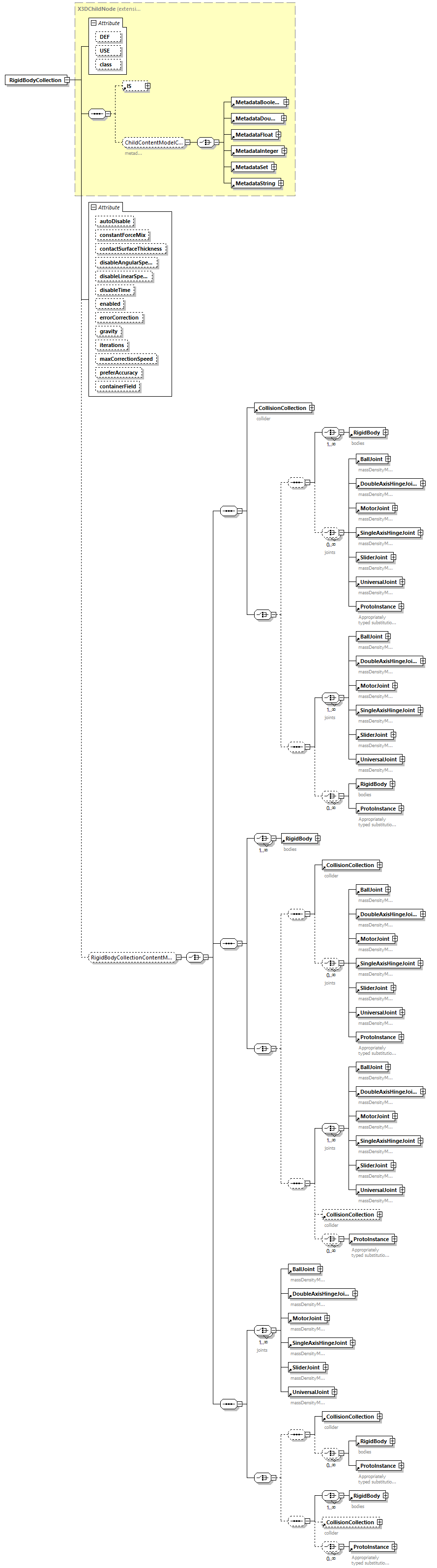

RigidBodyCollection
ROUTE

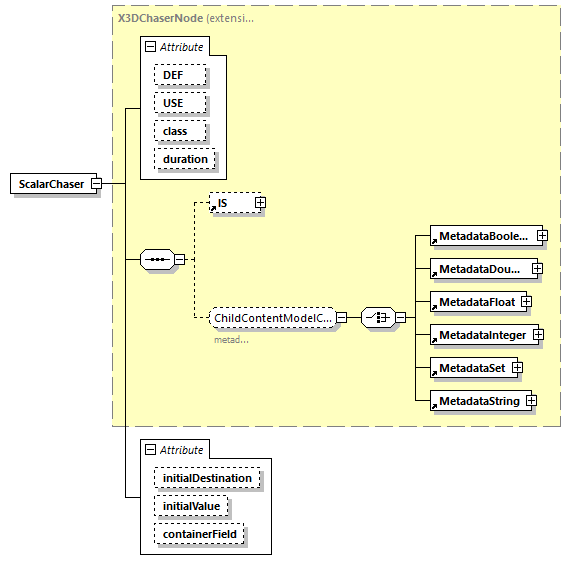

ScalarChaser

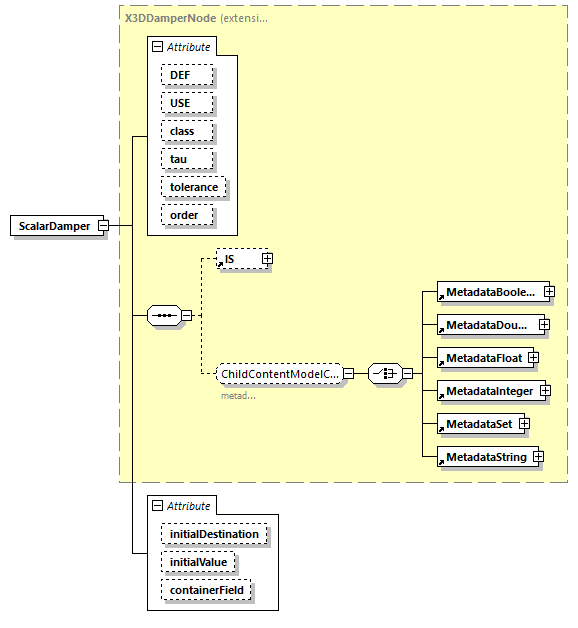

ScalarDamper

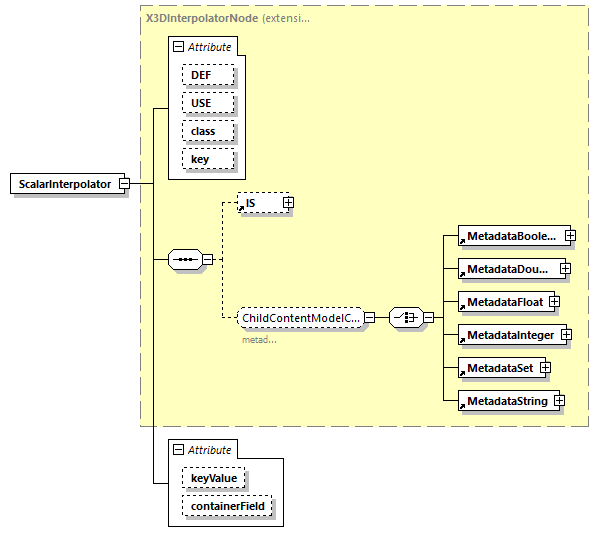

ScalarInterpolator
Scene

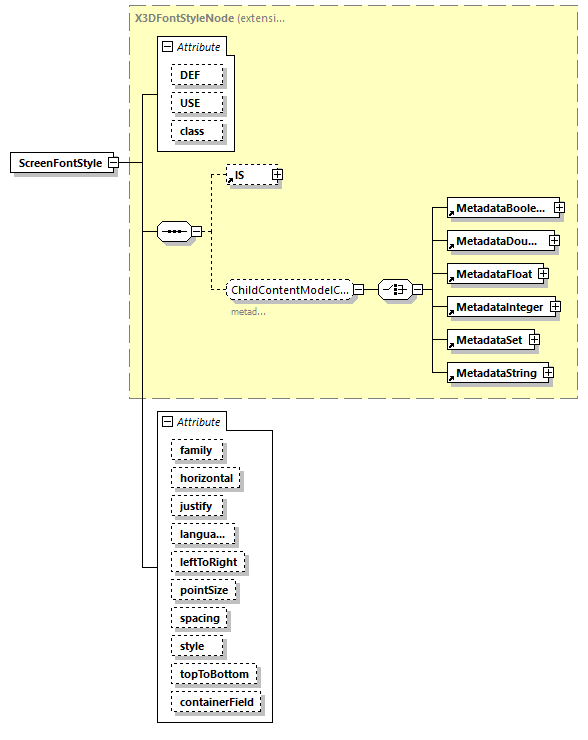

ScreenFontStyle
ScreenGroup
Script
SegmentedVolumeData

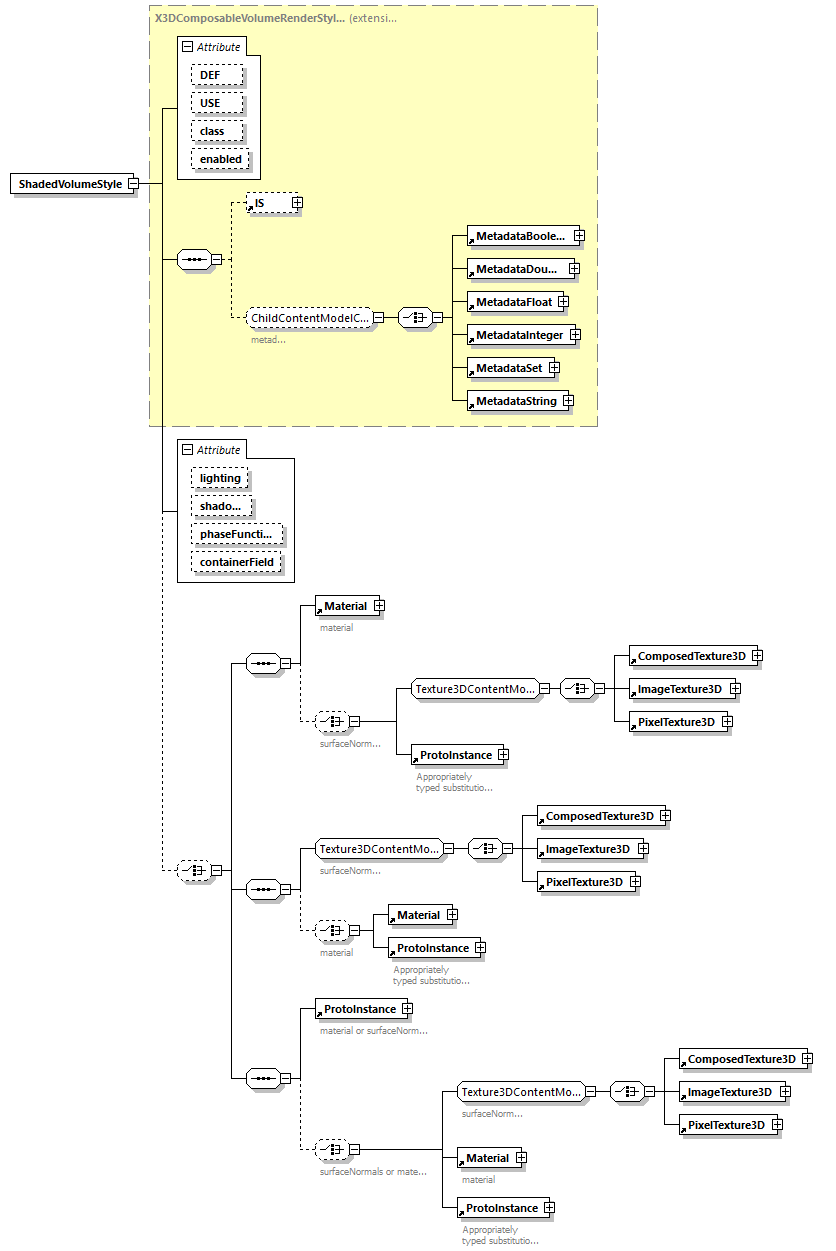

ShadedVolumeStyle

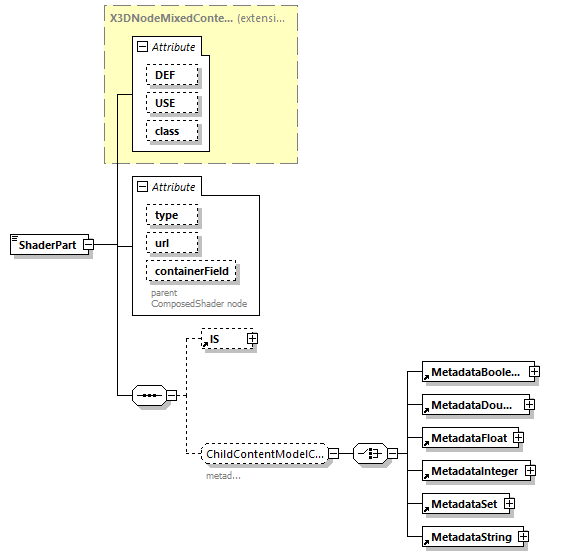

ShaderPart

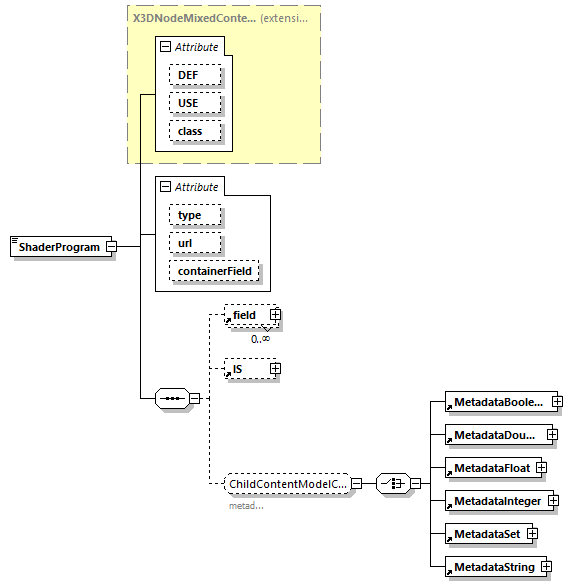

ShaderProgram
Shape
SignalPdu
SilhouetteEnhancementVolumeStyle
SingleAxisHingeJoint
SliderJoint
Sound
Sphere
SphereSensor
SplinePositionInterpolator
SplinePositionInterpolator2D
SplineScalarInterpolator

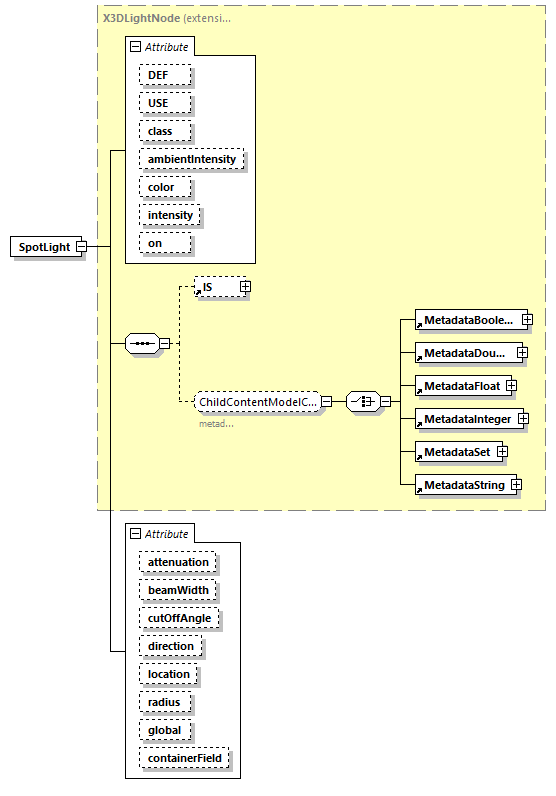

SpotLight

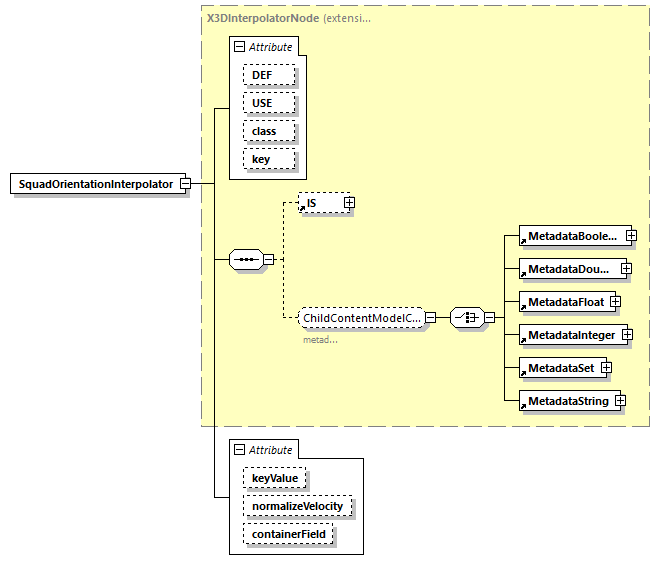

SquadOrientationInterpolator
StaticGroup
StringSensor
SurfaceEmitter
Switch

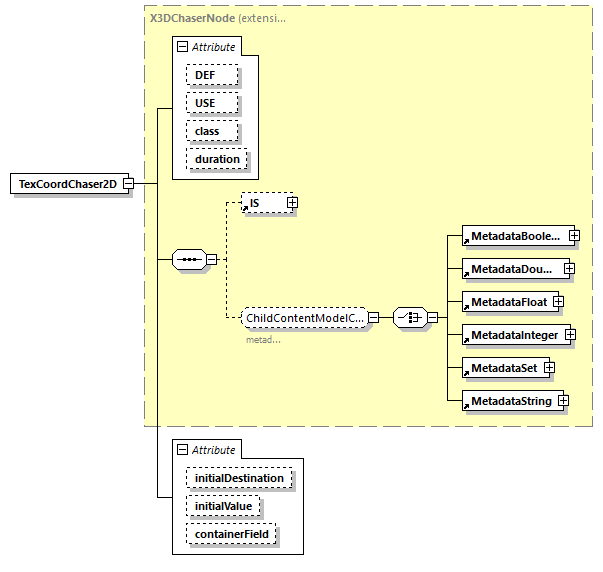

TexCoordChaser2D

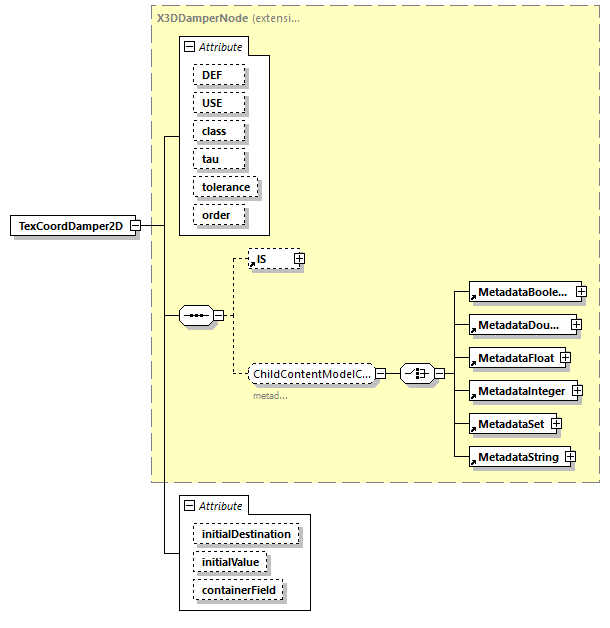

TexCoordDamper2D

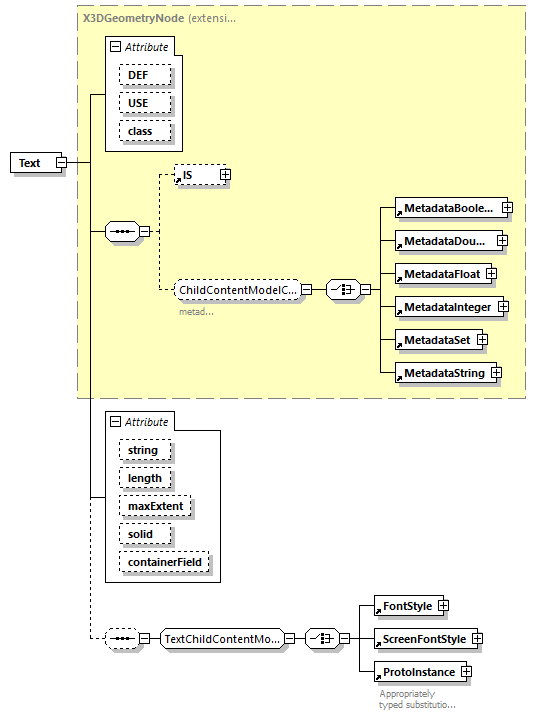

Text
TextureBackground
TextureCoordinate
TextureCoordinate3D
TextureCoordinate4D
TextureCoordinateGenerator
TextureProperties

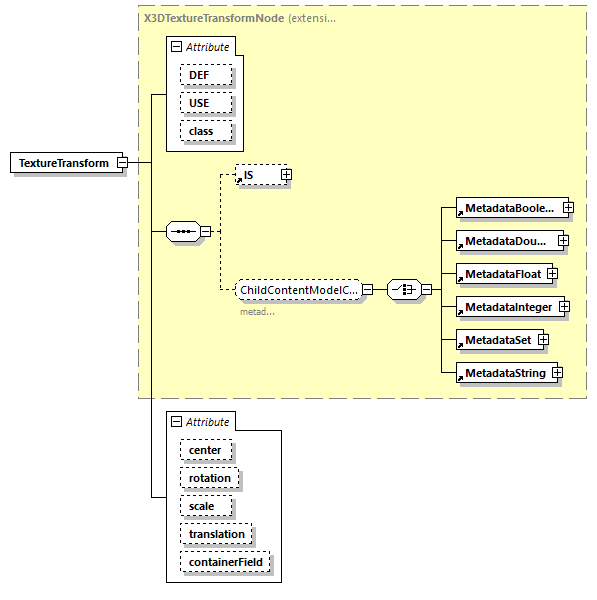

TextureTransform

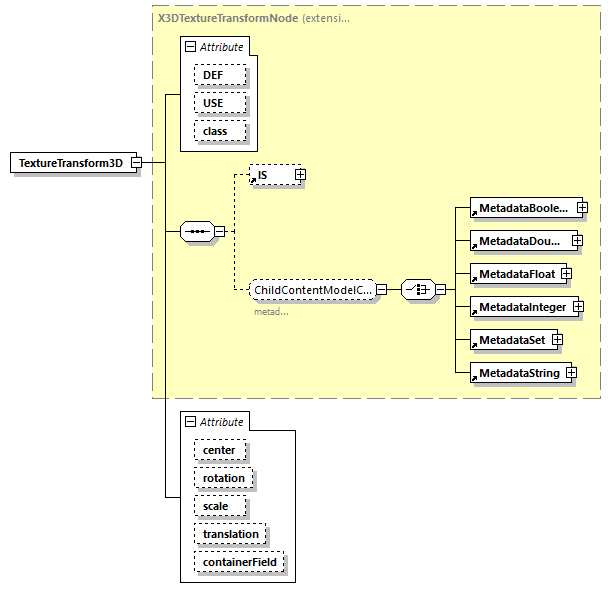

TextureTransform3D
TextureTransformMatrix3D
TimeSensor
TimeTrigger
ToneMappedVolumeStyle
TouchSensor
Transform
TransformSensor
TransmitterPdu

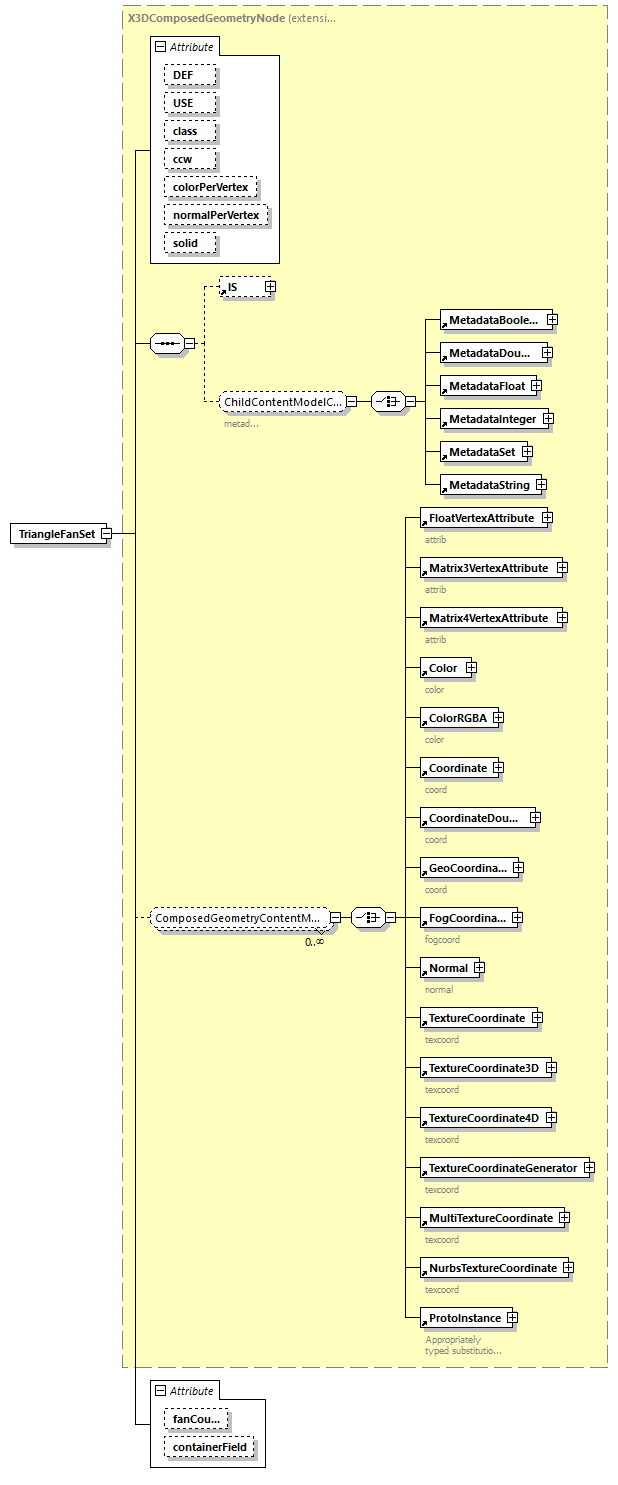

TriangleFanSet
TriangleSet

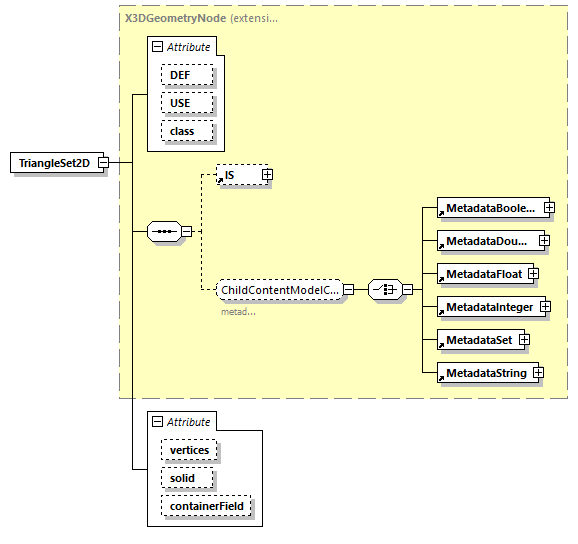

TriangleSet2D

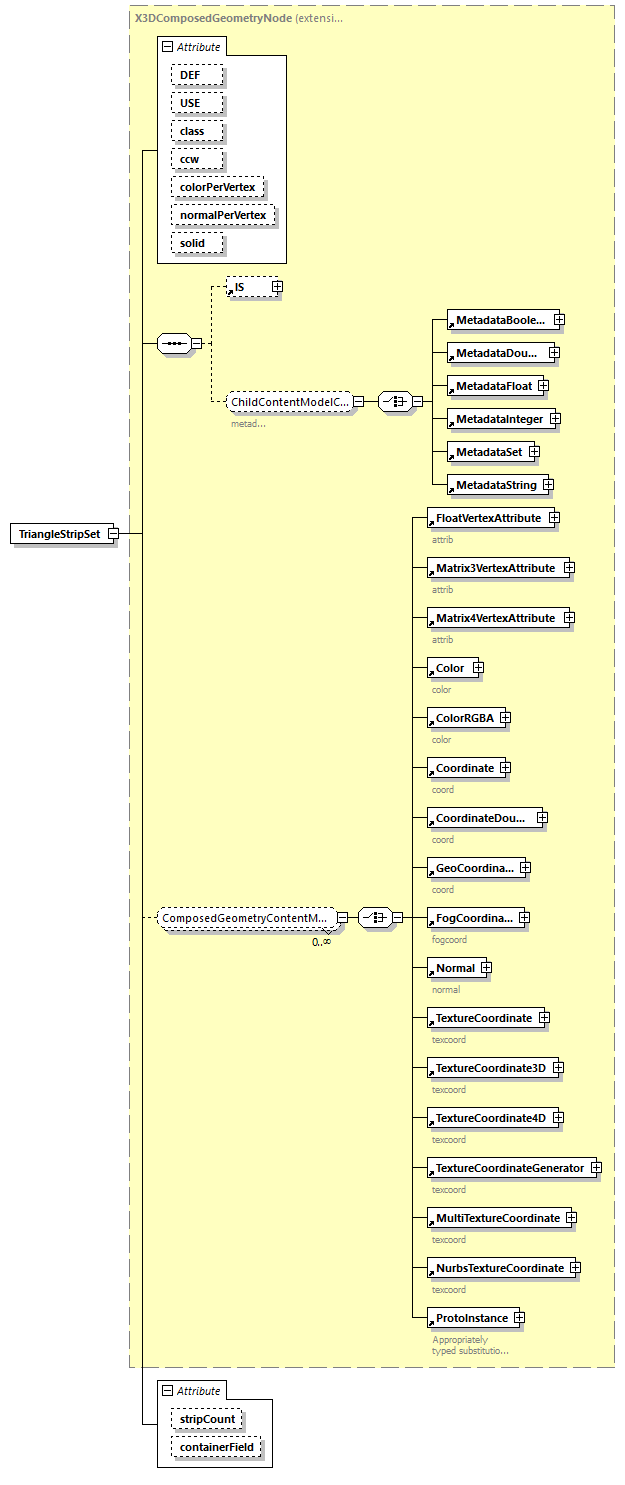

TriangleStripSet
TwoSidedMaterial
unit
UniversalJoint
Viewpoint

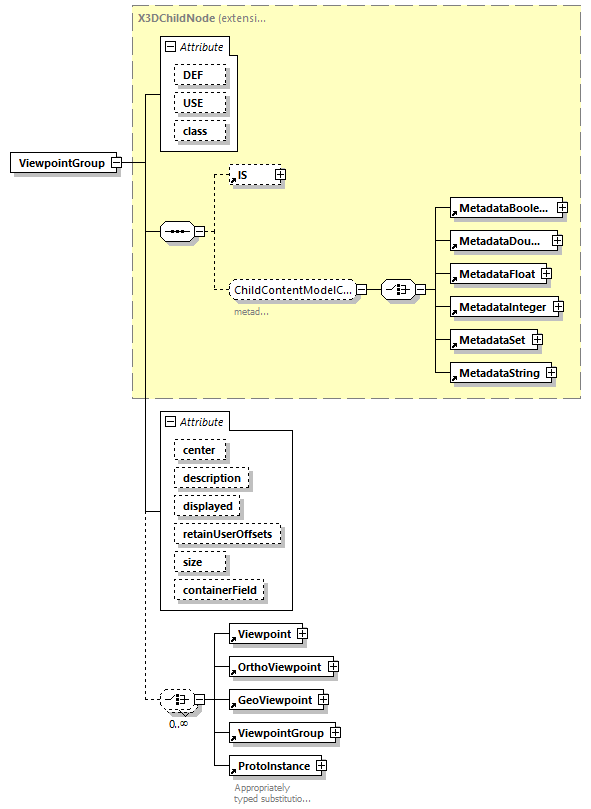

ViewpointGroup
Viewport
VisibilitySensor
VolumeData

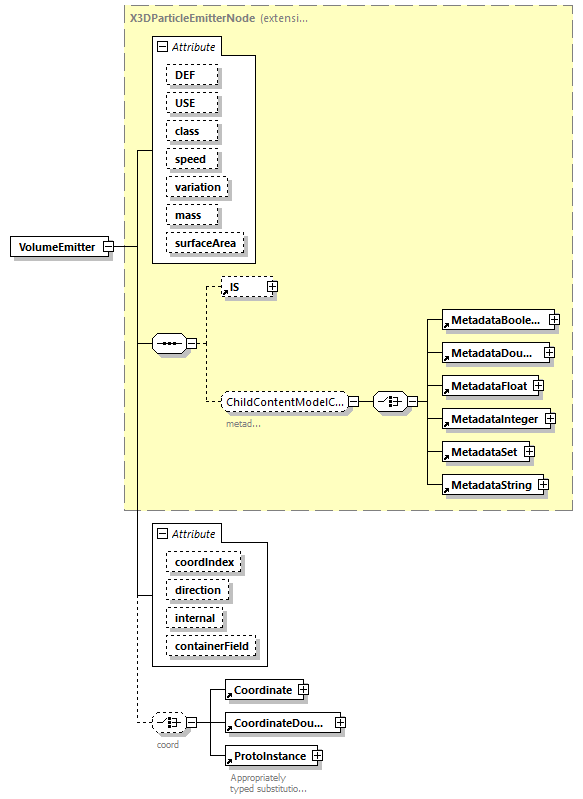

VolumeEmitter
VolumePickSensor

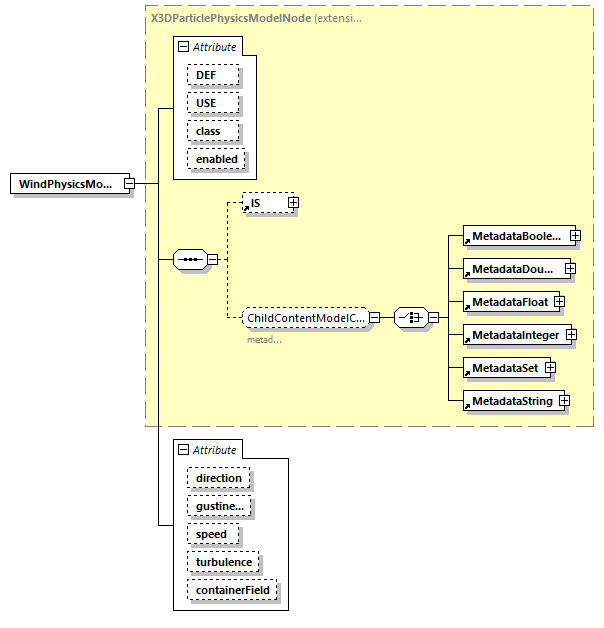

WindPhysicsModel

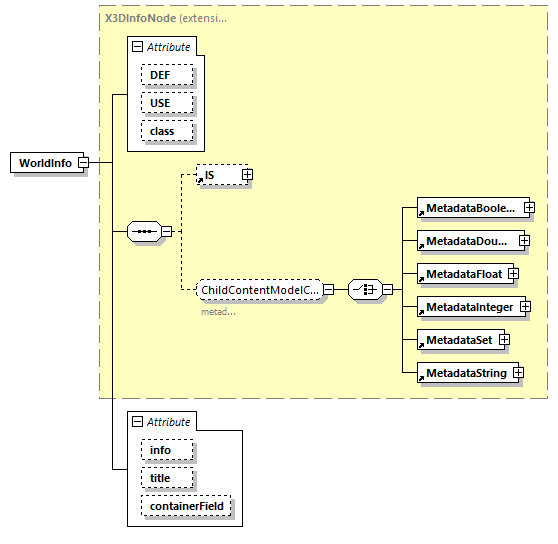

WorldInfo
X3D


schema location https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPublic.xsd
attributeFormDefault unqualified
elementFormDefault qualified
targetNamespace https://www.design2machine.com

Elements  Simple types
XvlShell  XvlShell.shellTypes


schema location https://www.web3d.org/specifications/x3d-3.3-Web3dExtensionsPrivate.xsd
attributeFormDefault unqualified
elementFormDefault qualified
targetNamespace https://www.design2machine.com



element BTLx
diagram BTLx_2_0_0_p1.png
namespace https://www.design2machine.com
properties
content complex
children FileHistory Project
attributes
Name  Type  Use  Default  Fixed  Annotation
Version  derived by: xs:string  required
documentation
e.g. 1.0 or 1.0.2
Language  xs:string
documentation
language shortcut in compliance with ISO 639-1
annotation
documentation
Root element for BTLx data
source <xs:element name="BTLx">

<xs:annotation>

<xs:documentation>Root element for BTLx data</xs:documentation>

</xs:annotation>

<xs:complexType>

<xs:sequence>

<xs:element name="FileHistory" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

<xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Project" type="ProjectType"/>

</xs:sequence>

<xs:attribute name="Version" use="required">

<xs:annotation>

<xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="2.0.0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Language" type="xs:string">

<xs:annotation>

<xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>

</xs:annotation>

</xs:attribute>

</xs:complexType>
</xs:element>

attribute BTLx/@Version
type restriction of xs:string
properties
use required
facets
Kind Value Annotation
enumeration 2.0.0
annotation
documentation
e.g. 1.0 or 1.0.2
source <xs:attribute name="Version" use="required">

<xs:annotation>

<xs:documentation>e.g. 1.0 or 1.0.2</xs:documentation>

</xs:annotation>

<xs:simpleType>

<xs:restriction base="xs:string">

<xs:enumeration value="2.0.0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BTLx/@Language
type xs:string
annotation
documentation
language shortcut in compliance with ISO 639-1
source <xs:attribute name="Language" type="xs:string">

<xs:annotation>

<xs:documentation>language shortcut in compliance with ISO 639-1</xs:documentation>

</xs:annotation>
</xs:attribute>

element BTLx/FileHistory
diagram BTLx_2_0_0_p2.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children InitialExportProgram EditingProgram
source <xs:element name="FileHistory" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

<xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element BTLx/FileHistory/InitialExportProgram
diagram BTLx_2_0_0_p3.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="InitialExportProgram" type="ProgramInfoType" minOccurs="0"/>

element BTLx/FileHistory/EditingProgram
diagram BTLx_2_0_0_p4.png
namespace https://www.design2machine.com
type ProgramInfoType
properties
minOcc 0
maxOcc unbounded
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
CompanyName  xs:string
ProgramName  xs:string
ProgramVersion  xs:string
ComputerName  xs:string
UserName  xs:string
FileName  xs:string
Date  xs:date
documentation
in compliance with ISO 8601
Time  xs:time
Comment  xs:string
source <xs:element name="EditingProgram" type="ProgramInfoType" minOccurs="0" maxOccurs="unbounded"/>

element BTLx/Project
diagram BTLx_2_0_0_p5.png
namespace https://www.design2machine.com
type ProjectType
properties
content complex
children UserAttributes Rawparts Parts Composites
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Number  xs:string
GUID  GUIDType
Section  xs:string
ListName  xs:string
Customer  xs:string
Architect  xs:string
Editor  xs:string
DeliveryDate  xs:date
documentation
in compliance with ISO 8601
SourceFile  xs:string
ProcessingQuality  ProcessingQualityType    automatic
Recess  RecessType    automatic
Comment  xs:string
source <xs:element name="Project" type="ProjectType"/>

complexType AlignmentType
diagram BTLx_2_0_0_p6.png
namespace https://www.design2machine.com
used by
element PartType/Alignment
attributes
Name  Type  Use  Default  Fixed  Annotation
Location  LocationType  required
Endtype  EndType  required
annotation
documentation
Definition of an alignment in a wall
source <xs:complexType name="AlignmentType">

<xs:annotation>

<xs:documentation>Definition of an alignment in a wall</xs:documentation>

</xs:annotation>

<xs:attribute name="Location" type="LocationType" use="required"/>

<xs:attribute name="Endtype" type="EndType" use="required"/>
</xs:complexType>

attribute AlignmentType/@Location
type LocationType
properties
use required
facets
Kind Value Annotation
enumeration bottomRail
enumeration topRail
enumeration bottomRailAngled
enumeration topRailAngled
enumeration horizontalComponent
enumeration verticalComponent
enumeration angledComponent
source <xs:attribute name="Location" type="LocationType" use="required"/>

attribute AlignmentType/@Endtype
type EndType
properties
use required
facets
Kind Value Annotation
enumeration rectangularCut
enumeration angledCut
enumeration doubleCut
source <xs:attribute name="Endtype" type="EndType" use="required"/>

complexType ArcType
diagram BTLx_2_0_0_p7.png
namespace https://www.design2machine.com
type extension of LineType
properties
base LineType
children EndPoint PointOnArc
used by
element SimpleContourType/Arc
attributes
Name  Type  Use  Default  Fixed  Annotation
Inclination  InclinationType
Recess  ContourRecessType
Process  BooleanType
FaceLimited  BooleanType    yes
documentation
only for saw and mill contour
NailSpacing  xs:double
documentation
only for nail, cramp and screw contour
CrampAngleRef
documentation
only for cramp contour
CrampAngle
documentation
only for cramp contour
ScrewDiameter
documentation
only for screw contour
annotation
documentation
Definition of a contour arc
source <xs:complexType name="ArcType">

<xs:annotation>

<xs:documentation>Definition of a contour arc</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="LineType">

<xs:sequence>

<xs:element name="PointOnArc" type="CoordinateType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element ArcType/PointOnArc
diagram BTLx_2_0_0_p8.png
namespace https://www.design2machine.com
type CoordinateType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
source <xs:element name="PointOnArc" type="CoordinateType"/>

complexType BaseContourApType
diagram BTLx_2_0_0_p9.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Contour Apertures
used by
complexTypes GlueAreaType PlaningAreaType PlasterAreaType
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Defintion of a base contour with apertures
source <xs:complexType name="BaseContourApType">

<xs:annotation>

<xs:documentation>Defintion of a base contour with apertures</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingType">

<xs:sequence>

<xs:element name="Contour" type="SimpleContourType"/>

<xs:element name="Apertures" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Aperture" type="SimpleContourType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element BaseContourApType/Contour
diagram BTLx_2_0_0_p10.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Contour" type="SimpleContourType"/>

element BaseContourApType/Apertures
diagram BTLx_2_0_0_p11.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Aperture
source <xs:element name="Apertures" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Aperture" type="SimpleContourType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element BaseContourApType/Apertures/Aperture
diagram BTLx_2_0_0_p12.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Aperture" type="SimpleContourType"/>

complexType BaseContourType
diagram BTLx_2_0_0_p13.png
namespace https://www.design2machine.com
children Contour DualContour
used by
elements BaseDContourApType/Apertures/Aperture OutlineType/Apertures/Aperture
complexType OutlineType
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
annotation
documentation
Defintion of a base contour (either a contour or a contour with associated contour)
source <xs:complexType name="BaseContourType">

<xs:annotation>

<xs:documentation>Defintion of a base contour (either a contour or a contour with associated contour)</xs:documentation>

</xs:annotation>

<xs:choice>

<xs:element name="Contour" type="SimpleContourType"/>

<xs:element name="DualContour" type="DualContourType"/>

</xs:choice>

<xs:attribute name="Process" type="BooleanType" default="no"/>
</xs:complexType>

attribute BaseContourType/@Process
type BooleanType
properties
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Process" type="BooleanType" default="no"/>

element BaseContourType/Contour
diagram BTLx_2_0_0_p14.png
namespace https://www.design2machine.com
type SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS
source <xs:element name="Contour" type="SimpleContourType"/>

element BaseContourType/DualContour
diagram BTLx_2_0_0_p15.png
namespace https://www.design2machine.com
type DualContourType
properties
content complex
children PrincipalContour AssociatedContour
source <xs:element name="DualContour" type="DualContourType"/>

complexType BaseDContourApType
diagram BTLx_2_0_0_p16.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Contour DualContour Apertures
used by
complexTypes FreeContourType MillContourType SawContourType
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Defintion of a base contour with apertures (either a contour or a contour with associated contour)
source <xs:complexType name="BaseDContourApType">

<xs:annotation>

<xs:documentation>Defintion of a base contour with apertures (either a contour or a contour with associated contour)</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingType">

<xs:sequence>

<xs:choice>

<xs:element name="Contour">

<xs:complexType>

<xs:complexContent>

<xs:extension base="SimpleContourType">

<xs:sequence minOccurs="0">

<xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:attribute name="DepthBounded" type="BooleanType" default="no"/>

<xs:attribute name="Depth" default="0.0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Inclination" type="InclinationType" default="0.0"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

<xs:element name="DualContour">

<xs:complexType>

<xs:complexContent>

<xs:extension base="DualContourType">

<xs:sequence minOccurs="0">

<xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:choice>

<xs:element name="Apertures" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Aperture" type="BaseContourType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element BaseDContourApType/Contour

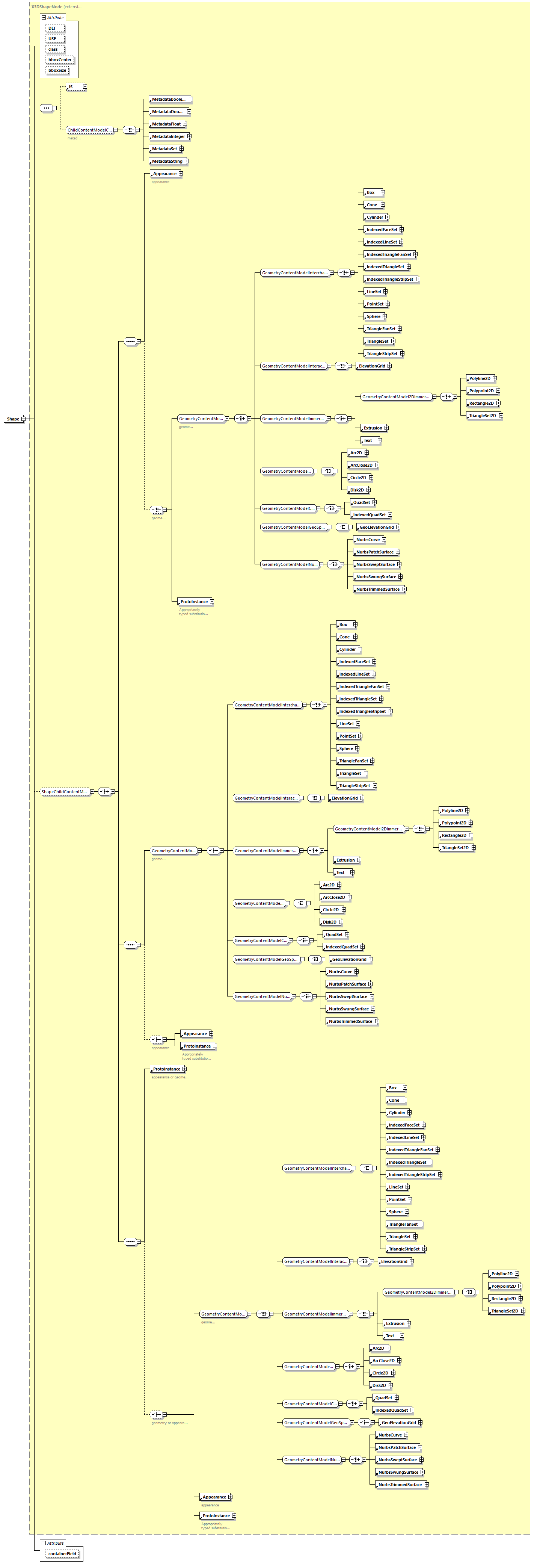

diagram BTLx_2_0_0_p17.png
namespace https://www.design2machine.com
type extension of SimpleContourType
properties
content complex
children StartPoint Line Arc NURBS MachiningLimits
attributes
Name  Type  Use  Default  Fixed  Annotation
DepthBounded  BooleanType    no
Depth  derived by: xs:double    0.0
Inclination  InclinationType    0.0
source <xs:element name="Contour">

<xs:complexType>

<xs:complexContent>

<xs:extension base="SimpleContourType">

<xs:sequence minOccurs="0">

<xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

<xs:attribute name="DepthBounded" type="BooleanType" default="no"/>

<xs:attribute name="Depth" default="0.0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Inclination" type="InclinationType" default="0.0"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute BaseDContourApType/Contour/@DepthBounded
type BooleanType
properties
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="DepthBounded" type="BooleanType" default="no"/>

attribute BaseDContourApType/Contour/@Depth
type restriction of xs:double
properties
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
source <xs:attribute name="Depth" default="0.0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute BaseDContourApType/Contour/@Inclination
type InclinationType
properties
default 0.0
facets
Kind Value Annotation
minInclusive -89.9
maxInclusive 89.9
source <xs:attribute name="Inclination" type="InclinationType" default="0.0"/>

element BaseDContourApType/Contour/MachiningLimits
diagram BTLx_2_0_0_p18.png
namespace https://www.design2machine.com
type restriction of MachiningLimitType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FaceLimitedStart  BooleanType  optional  yes
FaceLimitedEnd  BooleanType  optional  yes
FaceLimitedFront  BooleanType  optional  yes
FaceLimitedBack  BooleanType  optional  yes
FaceLimitedTop  BooleanType  optional  no
FaceLimitedBottom  BooleanType  optional  yes
source <xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute BaseDContourApType/Contour/MachiningLimits/@FaceLimitedTop
type BooleanType
properties
use optional
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

attribute BaseDContourApType/Contour/MachiningLimits/@FaceLimitedBottom
type BooleanType
properties
use optional
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

element BaseDContourApType/DualContour
diagram BTLx_2_0_0_p19.png
namespace https://www.design2machine.com
type extension of DualContourType
properties
content complex
children PrincipalContour AssociatedContour MachiningLimits
source <xs:element name="DualContour">

<xs:complexType>

<xs:complexContent>

<xs:extension base="DualContourType">

<xs:sequence minOccurs="0">

<xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

element BaseDContourApType/DualContour/MachiningLimits
diagram BTLx_2_0_0_p20.png
namespace https://www.design2machine.com
type restriction of MachiningLimitType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FaceLimitedStart  BooleanType  optional  yes
FaceLimitedEnd  BooleanType  optional  yes
FaceLimitedFront  BooleanType  optional  yes
FaceLimitedBack  BooleanType  optional  yes
FaceLimitedTop  BooleanType  optional  no
FaceLimitedBottom  BooleanType  optional  yes
source <xs:element name="MachiningLimits">

<xs:complexType>

<xs:complexContent>

<xs:restriction base="MachiningLimitType">

<xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

<xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

</xs:restriction>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute BaseDContourApType/DualContour/MachiningLimits/@FaceLimitedTop
type BooleanType
properties
use optional
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedTop" type="BooleanType" use="optional" default="no"/>

attribute BaseDContourApType/DualContour/MachiningLimits/@FaceLimitedBottom
type BooleanType
properties
use optional
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="FaceLimitedBottom" type="BooleanType" use="optional" default="yes"/>

element BaseDContourApType/Apertures
diagram BTLx_2_0_0_p21.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Aperture
source <xs:element name="Apertures" minOccurs="0">

<xs:complexType>

<xs:sequence>

<xs:element name="Aperture" type="BaseContourType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element BaseDContourApType/Apertures/Aperture
diagram BTLx_2_0_0_p22.png
namespace https://www.design2machine.com
type BaseContourType
properties
content complex
children Contour DualContour
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
source <xs:element name="Aperture" type="BaseContourType"/>

complexType BirdsMouthType
diagram BTLx_2_0_0_p23.png
namespace https://www.design2machine.com
type extension of ProcessingType
properties
base ProcessingType
children UserAttributes Orientation StartX StartY StartDepth Angle Inclination1 Inclination2 Depth Width WidthCounterPartLimited WidthCounterPart HeightCounterPartLimited HeightCounterPart FaceLimitedFront FaceLimitedBack LeadAngleParallel LeadAngle LeadInclinationParallel LeadInclination RafterNailHole
used by
element ProcessingsType/BirdsMouth
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
annotation
documentation
Definition of a birds mouth
source <xs:complexType name="BirdsMouthType">

<xs:annotation>

<xs:documentation>Definition of a birds mouth</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingType">

<xs:sequence>

<xs:element name="Orientation" type="OrientationType"/>

<xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

<xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

<xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

<xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

<xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

<xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

<xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

<xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

<xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

<xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

<xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element BirdsMouthType/Orientation
diagram BTLx_2_0_0_p24.png
namespace https://www.design2machine.com
type OrientationType
properties
content simple
facets
Kind Value Annotation
enumeration start
enumeration end
source <xs:element name="Orientation" type="OrientationType"/>

element BirdsMouthType/StartX
diagram BTLx_2_0_0_p25.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartY
diagram BTLx_2_0_0_p26.png
namespace https://www.design2machine.com
type WidthNType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -50000.0
maxInclusive 50000.0
source <xs:element name="StartY" type="WidthNType" default="0.0" minOccurs="0"/>

element BirdsMouthType/StartDepth
diagram BTLx_2_0_0_p27.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="StartDepth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Angle
diagram BTLx_2_0_0_p28.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="Angle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/Inclination1
diagram BTLx_2_0_0_p29.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 45.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination1" type="Angle2Type" default="45.0" minOccurs="0"/>

element BirdsMouthType/Inclination2
diagram BTLx_2_0_0_p30.png
namespace https://www.design2machine.com
type Angle2Type
properties
minOcc 0
maxOcc 1
content simple
default 135.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 180.0
source <xs:element name="Inclination2" type="Angle2Type" default="135.0" minOccurs="0"/>

element BirdsMouthType/Depth
diagram BTLx_2_0_0_p31.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 20.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Depth" type="WidthType" default="20.0" minOccurs="0"/>

element BirdsMouthType/Width
diagram BTLx_2_0_0_p32.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="Width" type="WidthType" default="0.0" minOccurs="0"/>

element BirdsMouthType/WidthCounterPartLimited
diagram BTLx_2_0_0_p33.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="WidthCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/WidthCounterPart
diagram BTLx_2_0_0_p34.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="WidthCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/HeightCounterPartLimited
diagram BTLx_2_0_0_p35.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="HeightCounterPartLimited" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/HeightCounterPart
diagram BTLx_2_0_0_p36.png
namespace https://www.design2machine.com
type WidthType
properties
minOcc 0
maxOcc 1
content simple
default 120.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 50000.0
source <xs:element name="HeightCounterPart" type="WidthType" default="120.0" minOccurs="0"/>

element BirdsMouthType/FaceLimitedFront
diagram BTLx_2_0_0_p37.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedFront" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/FaceLimitedBack
diagram BTLx_2_0_0_p38.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="FaceLimitedBack" type="BooleanType" default="no" minOccurs="0"/>

element BirdsMouthType/LeadAngleParallel
diagram BTLx_2_0_0_p39.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadAngleParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadAngle
diagram BTLx_2_0_0_p40.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadAngle" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/LeadInclinationParallel
diagram BTLx_2_0_0_p41.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="LeadInclinationParallel" type="BooleanType" default="yes" minOccurs="0"/>

element BirdsMouthType/LeadInclination
diagram BTLx_2_0_0_p42.png
namespace https://www.design2machine.com
type AngleType
properties
minOcc 0
maxOcc 1
content simple
default 90.0
facets
Kind Value Annotation
minInclusive 0.1
maxInclusive 179.9
source <xs:element name="LeadInclination" type="AngleType" default="90.0" minOccurs="0"/>

element BirdsMouthType/RafterNailHole
diagram BTLx_2_0_0_p43.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="RafterNailHole" type="BooleanType" default="no" minOccurs="0"/>

complexType CamberType
diagram BTLx_2_0_0_p44.png
namespace https://www.design2machine.com
used by
elements PartType/Camber RawPartType/Camber
attributes
Name  Type  Use  Default  Fixed  Annotation
ReferencePlaneID  derived by: xs:unsignedInt  required
StartingPoint  xs:double  required
EndPoint  xs:double  required
CamberPoint  xs:double  required
Camber  xs:double  required
annotation
documentation
Defintion of a camber
source <xs:complexType name="CamberType">

<xs:annotation>

<xs:documentation>Defintion of a camber</xs:documentation>

</xs:annotation>

<xs:attribute name="ReferencePlaneID" use="required">

<xs:simpleType>

<xs:restriction base="xs:unsignedInt">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="StartingPoint" type="xs:double" use="required"/>

<xs:attribute name="EndPoint" type="xs:double" use="required"/>

<xs:attribute name="CamberPoint" type="xs:double" use="required"/>

<xs:attribute name="Camber" type="xs:double" use="required"/>
</xs:complexType>

attribute CamberType/@ReferencePlaneID
type restriction of xs:unsignedInt
properties
use required
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="ReferencePlaneID" use="required">

<xs:simpleType>

<xs:restriction base="xs:unsignedInt">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute CamberType/@StartingPoint
type xs:double
properties
use required
source <xs:attribute name="StartingPoint" type="xs:double" use="required"/>

attribute CamberType/@EndPoint
type xs:double
properties
use required
source <xs:attribute name="EndPoint" type="xs:double" use="required"/>

attribute CamberType/@CamberPoint
type xs:double
properties
use required
source <xs:attribute name="CamberPoint" type="xs:double" use="required"/>

attribute CamberType/@Camber
type xs:double
properties
use required
source <xs:attribute name="Camber" type="xs:double" use="required"/>

complexType ChamferType
diagram BTLx_2_0_0_p45.png
namespace https://www.design2machine.com
type extension of ProcessingBaseType
properties
base ProcessingBaseType
children UserAttributes StartX StartLimited EndLimited Length Depth ChamferEdge12 ChamferEdge23 ChamferEdge34 ChamferEdge41 ChamferExit
used by
element ProcessingsType/Chamfer
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt
Comment  xs:string
annotation
documentation
Definition of a chamfer
source <xs:complexType name="ChamferType">

<xs:annotation>

<xs:documentation>Definition of a chamfer</xs:documentation>

</xs:annotation>

<xs:complexContent>

<xs:extension base="ProcessingBaseType">

<xs:sequence>

<xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

<xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

<xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

<xs:element name="Depth" default="1.0" minOccurs="0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

<xs:maxInclusive value="100.0"/>

</xs:restriction>

</xs:simpleType>

</xs:element>

<xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

<xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>
</xs:complexType>

element ChamferType/StartX
diagram BTLx_2_0_0_p46.png
namespace https://www.design2machine.com
type LengthPosType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive -100000.0
maxInclusive 100000.0
source <xs:element name="StartX" type="LengthPosType" default="0.0" minOccurs="0"/>

element ChamferType/StartLimited
diagram BTLx_2_0_0_p47.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="StartLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/EndLimited
diagram BTLx_2_0_0_p48.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default no
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="EndLimited" type="BooleanType" default="no" minOccurs="0"/>

element ChamferType/Length
diagram BTLx_2_0_0_p49.png
namespace https://www.design2machine.com
type LengthType
properties
minOcc 0
maxOcc 1
content simple
default 0.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100000.0
source <xs:element name="Length" type="LengthType" default="0.0" minOccurs="0"/>

element ChamferType/Depth
diagram BTLx_2_0_0_p50.png
namespace https://www.design2machine.com
type restriction of xs:double
properties
minOcc 0
maxOcc 1
content simple
default 1.0
facets
Kind Value Annotation
minInclusive 0.0
maxInclusive 100.0
source <xs:element name="Depth" default="1.0" minOccurs="0">

<xs:simpleType>

<xs:restriction base="xs:double">

<xs:minInclusive value="0.0"/>

<xs:maxInclusive value="100.0"/>

</xs:restriction>

</xs:simpleType>
</xs:element>

element ChamferType/ChamferEdge12
diagram BTLx_2_0_0_p51.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge12" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge23
diagram BTLx_2_0_0_p52.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge23" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge34
diagram BTLx_2_0_0_p53.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge34" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferEdge41
diagram BTLx_2_0_0_p54.png
namespace https://www.design2machine.com
type BooleanType
properties
minOcc 0
maxOcc 1
content simple
default yes
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:element name="ChamferEdge41" type="BooleanType" default="yes" minOccurs="0"/>

element ChamferType/ChamferExit
diagram BTLx_2_0_0_p55.png
namespace https://www.design2machine.com
type ChamferExitType
properties
minOcc 0
maxOcc 1
content simple
default orthogonal
facets
Kind Value Annotation
enumeration orthogonal
enumeration angular
enumeration round
source <xs:element name="ChamferExit" type="ChamferExitType" default="orthogonal" minOccurs="0"/>

complexType ColourType
diagram BTLx_2_0_0_p56.png
namespace https://www.design2machine.com
used by
element ComponentType/Colour
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
annotation
documentation
Definition of a colour (red, green, blue, transparency)
source <xs:complexType name="ColourType">

<xs:annotation>

<xs:documentation>Definition of a colour (red, green, blue, transparency)</xs:documentation>

</xs:annotation>

<xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

<xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>
</xs:complexType>

attribute ColourType/@Red
type xs:unsignedByte
properties
use required
source <xs:attribute name="Red" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Green
type xs:unsignedByte
properties
use required
source <xs:attribute name="Green" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Blue
type xs:unsignedByte
properties
use required
source <xs:attribute name="Blue" type="xs:unsignedByte" use="required"/>

attribute ColourType/@Transparency
type xs:unsignedByte
properties
use required
source <xs:attribute name="Transparency" type="xs:unsignedByte" use="required"/>

complexType ComponentType
diagram BTLx_2_0_0_p57.png
namespace https://www.design2machine.com
properties
abstract true
children Transformations Outlines UserAttributes Colour PartOffset GrainDirection ReferenceSide MaterialClass UserReferencePlanes Processings Shape
used by
complexTypes CompositeModuleType PartType RawPartType
attributes
Name  Type  Use  Default  Fixed  Annotation
Count  derived by: xs:int    1
Length  xs:double  required
Width  xs:double  required
Height  xs:double  required
SingleMemberNumber  xs:unsignedInt
AssemblyNumber  xs:string
OrderNumber  xs:unsignedInt
Designation  xs:string
Annotation  xs:string
Storey  xs:string
StoreyType  StoreyType
Group  xs:string
Package  xs:string
Material  xs:string
TimberGrade  xs:string
QualityGrade  xs:string
PlaningLength  xs:double  optional
StartOffset  xs:double  optional
EndOffset  xs:double  optional
Weight  xs:double
ProcessingQuality  ProcessingQualityType
Recess  RecessType
ElementNumber  xs:string
Layer  xs:int
ModuleNumber  xs:string
Comment  xs:string
annotation
documentation
Definition of a component
source <xs:complexType name="ComponentType" abstract="true">

<xs:annotation>

<xs:documentation>Definition of a component</xs:documentation>

</xs:annotation>

<xs:sequence>

<xs:element name="Transformations" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>there have to be "Count" Transformations</xs:documentation>

</xs:annotation>

<xs:element name="Transformation" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Outlines" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="3">

<xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="UserAttributes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserAttribute" type="UserAttributeType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Colour" type="ColourType" minOccurs="0"/>

<xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

<xs:element name="GrainDirection" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="CoordinateType">

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

<xs:element name="ReferenceSide" minOccurs="0">

<xs:complexType>

<xs:attribute name="Side" type="RefSideType" use="required"/>

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:complexType>

</xs:element>

<xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

<xs:element name="UserReferencePlanes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="Processings" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="ProcessingsType">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>

</xs:element>

<xs:element name="Shape" type="ShapeType" minOccurs="0"/>

</xs:sequence>

<xs:attribute name="Count" default="1">

<xs:simpleType>

<xs:restriction base="xs:int">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="Length" type="xs:double" use="required"/>

<xs:attribute name="Width" type="xs:double" use="required"/>

<xs:attribute name="Height" type="xs:double" use="required"/>

<xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

<xs:attribute name="AssemblyNumber" type="xs:string"/>

<xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

<xs:attribute name="Designation" type="xs:string"/>

<xs:attribute name="Annotation" type="xs:string"/>

<xs:attribute name="Storey" type="xs:string"/>

<xs:attribute name="StoreyType" type="StoreyType"/>

<xs:attribute name="Group" type="xs:string"/>

<xs:attribute name="Package" type="xs:string"/>

<xs:attribute name="Material" type="xs:string"/>

<xs:attribute name="TimberGrade" type="xs:string"/>

<xs:attribute name="QualityGrade" type="xs:string"/>

<xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

<xs:attribute name="StartOffset" type="xs:double" use="optional"/>

<xs:attribute name="EndOffset" type="xs:double" use="optional"/>

<xs:attribute name="Weight" type="xs:double"/>

<xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

<xs:attribute name="Recess" type="RecessType"/>

<xs:attribute name="ElementNumber" type="xs:string"/>

<xs:attribute name="Layer" type="xs:int"/>

<xs:attribute name="ModuleNumber" type="xs:string"/>

<xs:attribute name="Comment" type="xs:string"/>
</xs:complexType>

attribute ComponentType/@Count
type restriction of xs:int
properties
default 1
facets
Kind Value Annotation
minInclusive 1
source <xs:attribute name="Count" default="1">

<xs:simpleType>

<xs:restriction base="xs:int">

<xs:minInclusive value="1"/>

</xs:restriction>

</xs:simpleType>
</xs:attribute>

attribute ComponentType/@Length
type xs:double
properties
use required
source <xs:attribute name="Length" type="xs:double" use="required"/>

attribute ComponentType/@Width
type xs:double
properties
use required
source <xs:attribute name="Width" type="xs:double" use="required"/>

attribute ComponentType/@Height
type xs:double
properties
use required
source <xs:attribute name="Height" type="xs:double" use="required"/>

attribute ComponentType/@SingleMemberNumber
type xs:unsignedInt
source <xs:attribute name="SingleMemberNumber" type="xs:unsignedInt"/>

attribute ComponentType/@AssemblyNumber
type xs:string
source <xs:attribute name="AssemblyNumber" type="xs:string"/>

attribute ComponentType/@OrderNumber
type xs:unsignedInt
source <xs:attribute name="OrderNumber" type="xs:unsignedInt"/>

attribute ComponentType/@Designation
type xs:string
source <xs:attribute name="Designation" type="xs:string"/>

attribute ComponentType/@Annotation
type xs:string
source <xs:attribute name="Annotation" type="xs:string"/>

attribute ComponentType/@Storey
type xs:string
source <xs:attribute name="Storey" type="xs:string"/>

attribute ComponentType/@StoreyType
type StoreyType
facets
Kind Value Annotation
enumeration
enumeration ceiling
enumeration roof
enumeration wall
source <xs:attribute name="StoreyType" type="StoreyType"/>

attribute ComponentType/@Group
type xs:string
source <xs:attribute name="Group" type="xs:string"/>

attribute ComponentType/@Package
type xs:string
source <xs:attribute name="Package" type="xs:string"/>

attribute ComponentType/@Material
type xs:string
source <xs:attribute name="Material" type="xs:string"/>

attribute ComponentType/@TimberGrade
type xs:string
source <xs:attribute name="TimberGrade" type="xs:string"/>

attribute ComponentType/@QualityGrade
type xs:string
source <xs:attribute name="QualityGrade" type="xs:string"/>

attribute ComponentType/@PlaningLength
type xs:double
properties
use optional
source <xs:attribute name="PlaningLength" type="xs:double" use="optional"/>

attribute ComponentType/@StartOffset
type xs:double
properties
use optional
source <xs:attribute name="StartOffset" type="xs:double" use="optional"/>

attribute ComponentType/@EndOffset
type xs:double
properties
use optional
source <xs:attribute name="EndOffset" type="xs:double" use="optional"/>

attribute ComponentType/@Weight
type xs:double
source <xs:attribute name="Weight" type="xs:double"/>

attribute ComponentType/@ProcessingQuality
type ProcessingQualityType
facets
Kind Value Annotation
enumeration automatic
enumeration visible
enumeration fast
source <xs:attribute name="ProcessingQuality" type="ProcessingQualityType"/>

attribute ComponentType/@Recess
type RecessType
facets
Kind Value Annotation
enumeration automatic
enumeration manual
source <xs:attribute name="Recess" type="RecessType"/>

attribute ComponentType/@ElementNumber
type xs:string
source <xs:attribute name="ElementNumber" type="xs:string"/>

attribute ComponentType/@Layer
type xs:int
source <xs:attribute name="Layer" type="xs:int"/>

attribute ComponentType/@ModuleNumber
type xs:string
source <xs:attribute name="ModuleNumber" type="xs:string"/>

attribute ComponentType/@Comment
type xs:string
source <xs:attribute name="Comment" type="xs:string"/>

element ComponentType/Transformations
diagram BTLx_2_0_0_p58.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Transformation
source <xs:element name="Transformations" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:annotation>

<xs:documentation>there have to be "Count" Transformations</xs:documentation>

</xs:annotation>

<xs:element name="Transformation" type="ReferenceType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/Transformations/Transformation
diagram BTLx_2_0_0_p59.png
namespace https://www.design2machine.com
type ReferenceType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
GUID  GUIDType  required
source <xs:element name="Transformation" type="ReferenceType"/>

element ComponentType/Outlines
diagram BTLx_2_0_0_p60.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children Outline
source <xs:element name="Outlines" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="3">

<xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/Outlines/Outline
diagram BTLx_2_0_0_p61.png
namespace https://www.design2machine.com
type extension of OutlineType
properties
content complex
children Contour DualContour Apertures
attributes
Name  Type  Use  Default  Fixed  Annotation
Process  BooleanType    no
ReferencePlaneID  derived by: xs:unsignedInt  required
source <xs:element name="Outline">

<xs:complexType>

<xs:complexContent>

<xs:extension base="OutlineType"/>

</xs:complexContent>

</xs:complexType>
</xs:element>

element ComponentType/UserAttributes
diagram BTLx_2_0_0_p62.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserAttribute
source <xs:element name="UserAttributes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserAttribute" type="UserAttributeType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/UserAttributes/UserAttribute
diagram BTLx_2_0_0_p63.png
namespace https://www.design2machine.com
type UserAttributeType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Value  xs:string  required
Type  UAttributeType    string
source <xs:element name="UserAttribute" type="UserAttributeType"/>

element ComponentType/Colour
diagram BTLx_2_0_0_p64.png
namespace https://www.design2machine.com
type ColourType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Red  xs:unsignedByte  required
Green  xs:unsignedByte  required
Blue  xs:unsignedByte  required
Transparency  xs:unsignedByte  required
source <xs:element name="Colour" type="ColourType" minOccurs="0"/>

element ComponentType/PartOffset
diagram BTLx_2_0_0_p65.png
namespace https://www.design2machine.com
type PartOffsetType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
FlushSide  derived by: xs:byte  required
OffsetSide1  xs:double    0.0
OffsetSide2  xs:double    0.0
OffsetSide3  xs:double    0.0
OffsetSide4  xs:double    0.0
source <xs:element name="PartOffset" type="PartOffsetType" minOccurs="0"/>

element ComponentType/GrainDirection
diagram BTLx_2_0_0_p66.png
namespace https://www.design2machine.com
type extension of CoordinateType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
X  xs:double  required
Y  xs:double  required
Z  xs:double  required
Align  BooleanType  required
source <xs:element name="GrainDirection" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="CoordinateType">

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

attribute ComponentType/GrainDirection/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/ReferenceSide
diagram BTLx_2_0_0_p67.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Side  RefSideType  required
Align  BooleanType  required
source <xs:element name="ReferenceSide" minOccurs="0">

<xs:complexType>

<xs:attribute name="Side" type="RefSideType" use="required"/>

<xs:attribute name="Align" type="BooleanType" use="required"/>

</xs:complexType>
</xs:element>

attribute ComponentType/ReferenceSide/@Side
type RefSideType
properties
use required
facets
Kind Value Annotation
minInclusive 1
maxInclusive 4
source <xs:attribute name="Side" type="RefSideType" use="required"/>

attribute ComponentType/ReferenceSide/@Align
type BooleanType
properties
use required
facets
Kind Value Annotation
enumeration yes
enumeration no
source <xs:attribute name="Align" type="BooleanType" use="required"/>

element ComponentType/MaterialClass
diagram BTLx_2_0_0_p68.png
namespace https://www.design2machine.com
type MaterialClassType
properties
minOcc 0
maxOcc 1
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
Group  MaterialGroupType  required
Specification  xs:string
source <xs:element name="MaterialClass" type="MaterialClassType" minOccurs="0"/>

element ComponentType/UserReferencePlanes
diagram BTLx_2_0_0_p69.png
namespace https://www.design2machine.com
properties
minOcc 0
maxOcc 1
content complex
children UserReferencePlane
source <xs:element name="UserReferencePlanes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="unbounded">

<xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element ComponentType/UserReferencePlanes/UserReferencePlane
diagram BTLx_2_0_0_p70.png
namespace https://www.design2machine.com
type UserReferencePlaneType
properties
content complex
children Position
attributes
Name  Type  Use  Default  Fixed  Annotation
ID  derived by: xs:unsignedInt  required
source <xs:element name="UserReferencePlane" type="UserReferencePlaneType"/>

element ComponentType/Processings
diagram BTLx_2_0_0_p71.png
namespace https://www.design2machine.com
type extension of ProcessingsType
properties
minOcc 0
maxOcc 1
content complex
children JackRafterCut LongitudinalCut DoubleCut RidgeValleyCut SawCut Slot BirdsMouth HipValleyRafterNotch Lap LogHouseHalfLap FrenchRidgeLap Chamfer LogHouseJoint LogHouseFront Pocket Drilling Tenon Mortise House HouseMortise DovetailTenon DovetailMortise JapaneseTenon JapaneseMortise Marking Text SimpleScarf ScarfJoint StepJoint StepJointNotch ProfileFront ProfileCambered RoundArch Planing ProfileHead Sphere TriangleCut TyroleanDovetail Dovetail FreeContour SawContour MillContour NailContour PenContour GlueArea PlaningArea PlasterArea LockoutArea FreeSurface Variant ProcessingGroup
source <xs:element name="Processings" minOccurs="0">

<xs:complexType>

<xs:complexContent>

<xs:extension base="ProcessingsType">

<xs:sequence minOccurs="0" maxOccurs="unbounded">

<xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

</xs:sequence>

</xs:extension>

</xs:complexContent>

</xs:complexType>
</xs:element>

element ComponentType/Processings/ProcessingGroup
diagram BTLx_2_0_0_p72.png
namespace https://www.design2machine.com
type ProcessingGroupType
properties
content complex
children UserAttributes Processings
attributes
Name  Type  Use  Default  Fixed  Annotation
Name  xs:string  required
Process  BooleanType    yes
ProcessingQuality  ProcessingQualityType
Recess  RecessAdvType
Priority  xs:int    0
ProcessID  xs:unsignedInt
Comment  xs:string
ReferencePlaneID  derived by: xs:unsignedInt  required
documentation
can refer to a global reference plane (1-6) or a user defined reference plane (100-)
source <xs:element name="ProcessingGroup" type="ProcessingGroupType"/>

element ComponentType/Shape
diagram BTLx_2_0_0_p73.png
namespace https://www.design2machine.com
type ShapeType
properties
minOcc 0
maxOcc 1
content complex
children IS MetadataBoolean MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString Appearance Box Cone Cylinder IndexedFaceSet IndexedLineSet IndexedTriangleFanSet IndexedTriangleSet IndexedTriangleStripSet LineSet PointSet Sphere TriangleFanSet TriangleSet TriangleStripSet ElevationGrid Polyline2D Polypoint2D Rectangle2D TriangleSet2D Extrusion Text Arc2D ArcClose2D Circle2D Disk2D QuadSet IndexedQuadSet GeoElevationGrid NurbsCurve NurbsPatchSurface NurbsSweptSurface NurbsSwungSurface NurbsTrimmedSurface ProtoInstance
used by
elements CADFace CollidableShape HAnimHumanoid LinePickSensor PointPickSensor PrimitivePickSensor TransformSensor VolumePickSensor
group ChildContentModelInterchange
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
bboxCenter  SFVec3f    0 0 0
bboxSize  bboxSizeType    -1 -1 -1
source <xs:element name="Shape" type="ShapeType" minOccurs="0"/>
